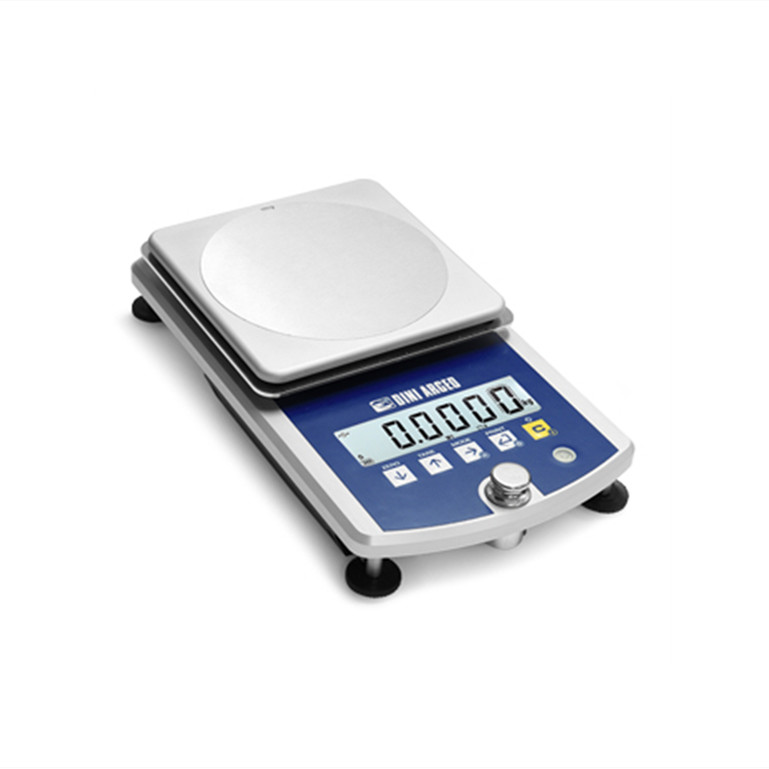

COMPACT WEIGHING SCALE "WLB" Series Stainless Steel Technology High Precision Electronic Platform Scale Bench Scales
Bench scales with compact dimensions, extremely sturdy, constructed with high quality materials. Suitable for industrial laboratories and burdensome working environment. Fitted with standard weight and rapid calibration adjustment function. Multifuncional weighing programme. CE-M approvable according to EN45501.
BENCH SCALES: MAIN FEATURES
Special body in anodised alloy, resistant and easy to clean.
Loading surface in anodised alloy, washable and inspectionable.
Safety limit switch and protection plate against side strikes.
Aluminium load cell, IP68.
Extractable calibration weight, useful for calibration control.
Integrated weight indicator, with backlit LCD display of 25mm, waterproof keypad and multifunctional programme.
Non-slip adjustable feet.
IP68 protection degree.
Serial port RS232 for connection to Pc or printer.
Power supply through built-in rechargeable battery. Fitted with external battery charger with IP68 connector(to not use as power adaptor).
Dimensions and weight:
- Scale: (lxwxh) 360x210x75mm - 5,3kg.
- Packaging: (lxwxh) 500x300x150mm - 6,6kg.
BENCH SCALES: FUNCTIONING MODES
Through the specific key, the desired functioning mode can be chosen:
- x 10 high resolution visualisation.
- Precision weighing with recalibration through standard weight (for the company internal use).
- Switch Net/Gross
- lb to kg or free factor conversion.
- Weight totalisation.
- +/- check.
- Percentage weigh.
- Approved weight transmission to PC/PLC or printer.
- Pieces counting.
OTHER STANDARD FUNCTIONS:
Zeroing, Tare, preset Tare, automatic Tare, Auto switch off.
COMPACT WEIGHING SCALE Available versions
(* M) Legal for trade approved as standard
(* d HR) High resolution digit is active as standard, it can be disabled by the configuration menu.
