WWSB Non Slip Portable Axle Scales For Automobiles

Minimum Order Quantity : 1 Delivery Time : 10-13week
Payment Terms : T/T Supply Ability : 100+pc+3m
Place of Origin: Italy Brand Name: Diniargeo
Certification: CE Model Number: WWSB

Detail Information

Range: 600kg 1500kg 3000kg 8000kg Warranty: 3 Months
High Light:

IP68 wheel weighing scale


600kg axle weight scale


600kg axle load scale

Product Description

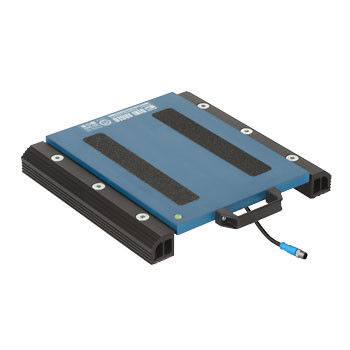

"WWSB" WHEEL WEIGHING Scale Portable axle weight scale
Pads designed to create weighing stations for small sized vehicles (automobiles, carts, vans, etc.); particularly accurate and sturdy, with attention to details.
Pad dimensions: 400x410mm. Height 58mm. Weight approximately 14,5kg.
Loading surface: 400x300mm.
Very handy.
Sturdy structure, made with special aluminium, which guarantees lightness and makes these suitable also for harsh working conditions.
Cable with quick connector, pad side.
10m cable for connecting the pad to the indicator, complete of connector.
IP67 nickel-plated steel loading cells.
IP68 stainless steel load cells, in the WWSB versions with 6t and 8t capacity.
Hermetic junction box with IP68 protection degree.
Special vulcanised nonslip rubber applied under the pad, for good grip on all types of surfaces.
Extremely simple and reliable connection of the scale to the weight indicator.
The WWS pads are patented; the number is 1.342.302.
Availables in legal for trade approved version.
Availables in high resolution version.
Availables upon price estimate in Atex version for 1&21 e 2&22 zones.
The pads are for legal for trade use:
- In the single-pad systems, not used to weigh vehicles.
- In the wheel weighing systems in which the number of pads is equal to the number of vehicle wheels.
- In the axle weighing systems composed of one or more multiples of WWS pads, except possible limitations of use for some European States.
The CE-M legal for trade divisions indicated in the "version" table are available with ECEM option. ECEM option is needed for each legal for trade pad of the system.
Legal for trade systems with more than one WWS, are fitted with the approval of the weight sum and related division:
Exemple for a 4 pads system
Single CE-M Pad: Max=1500kg and e=0,5kg
CE-M SUM: Max=6000kg and e=2kg
Available versions
l x w x h
WWSB Non Slip Portable Axle Scales For Automobiles 0
d HR
  WWSB600-1 400x300x58 600 0,2 0,2 --
  WWSB1500-1 400x300x58 1500 0,5 0,5 --
  WWSB3T-1 400x300x58 3000 1 1 0,1
  WWSB6T-1 400x300x58 6000 2 2 0,2
  WWSB8T-1 400x300x58 8000 5 5 0,5
