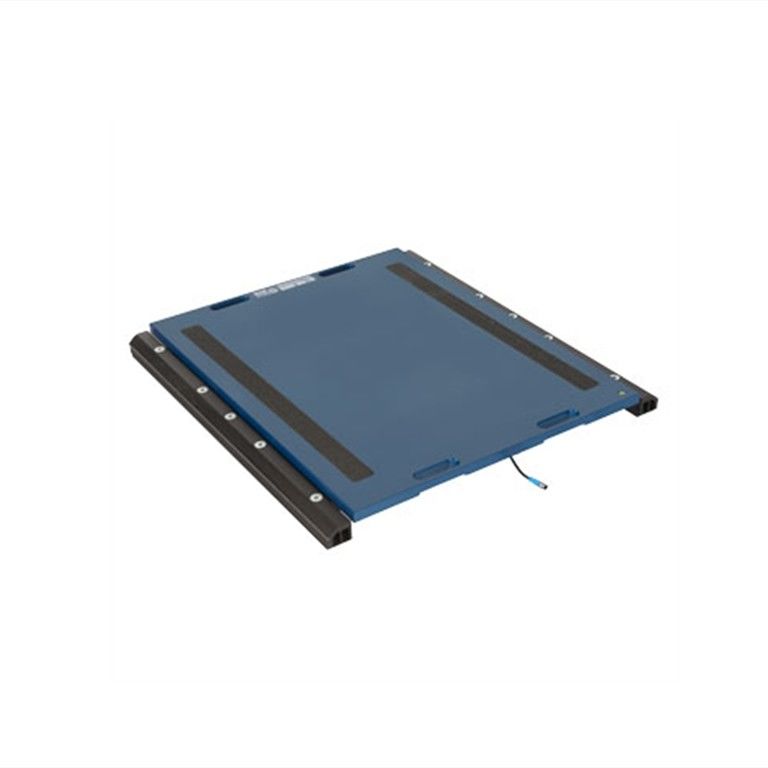

WWSF Dynamic Weighing 500x400mm Portable Truck Axle Scales

Minimum Order Quantity : 1 Delivery Time : 8-10week
Payment Terms : T/T Supply Ability : 100+pc+3m
Place of Origin: Italy Brand Name: Diniargeo
Certification: CE Model Number: WWSF

Detail Information

Range: 6000kg 10000kg 15000kg 20000kg Loading Surface: 500x400mm
CE-M SUM: Max=6000kg And E=2kg Single CE-M Pad: Max=1500kg And E=0,5kg
High Light:

IP68 axle weighing system


500x400mm axle weigher


IP68 portable weigh pads

Product Description

"WWSF" Axle Weighing Scales WHEEL WEIGHING Scale Portable axle weight scale
Pads designed for creating weighing stations for large sized vehicles fitted with twinned wheels (articulated lorries, tractor-trailers, building yard vehicles, etc.); fitted with handles on both sides for easing the transport and the positioning. Particularly suitable for dynamic weighing.
Pad dimensions: 900x811mm. Height 75mm. Weight approximately 67kg.
Loading surface: 900x700mm.
Fitted with double handles on both sides for easing the transport.
Sturdy structure, made in special aluminium, which guarantees lightness and makes these suitable also for harsh working conditions.
Cable with quick connector, pad side.
10 m cable for connecting pad to indicator, complete of connectors.
IP68 stainless steel load cells.
Hermetic junction box with IP68 protection degree.
Special vulcanised nonslip rubber applied under the pad for good grip on all surfaces.
Extremely simple and reliable connection of the scale to the weight indicator.
The WWS pads are patented; the number is 1.342.302.
Available in legal for trade approved version.
Available in high resolution version.
Available upon price estimate in Atex version for 1&21 e 2&22 zones.
The pads are for legal for trade use:
- In the single-pad systems, not used to weigh vehicles.
- In the wheel weighing systems in which the number of pads is equal to the number of vehicle wheels.
- In the axle weighing systems composed of one or more multiples of WWS pads, except possible limitations of use for some European States.
The axle weighing systems with 2 WWS pads and a 3590E "AF09" weight indicator are OIML R134 certified for the dynamic vehicle weighing, according to the legal standards in force in the Country of use.
The CE-M legal for trade divisions indicated in the "version" table are available with ECEM option. ECEM option is needed for each legal for trade pad of the system.
Legal for trade systems with more than one WWS, are fitted with the approval of the weight sum and related division:
Exemple for a 4 pads system
Single CE-M Pad: Max=1500kg and e=0,5kg
CE-M SUM: Max=6000kg and e=2kg
Axle Weighing Scales Available versions
l x w x h
WWSF Dynamic Weighing 500x400mm Portable Truck Axle Scales 0
d HR
  WWSF10T-1 900x700x75 10000 5 5 0,5
  WWSF15T-1 900x700x75 15000 5 5 0,5
  WWSF20T-1 900x700x75 20000 10 10 1
  WWSF25T-1 900x700x75 25000 10 -- 1
