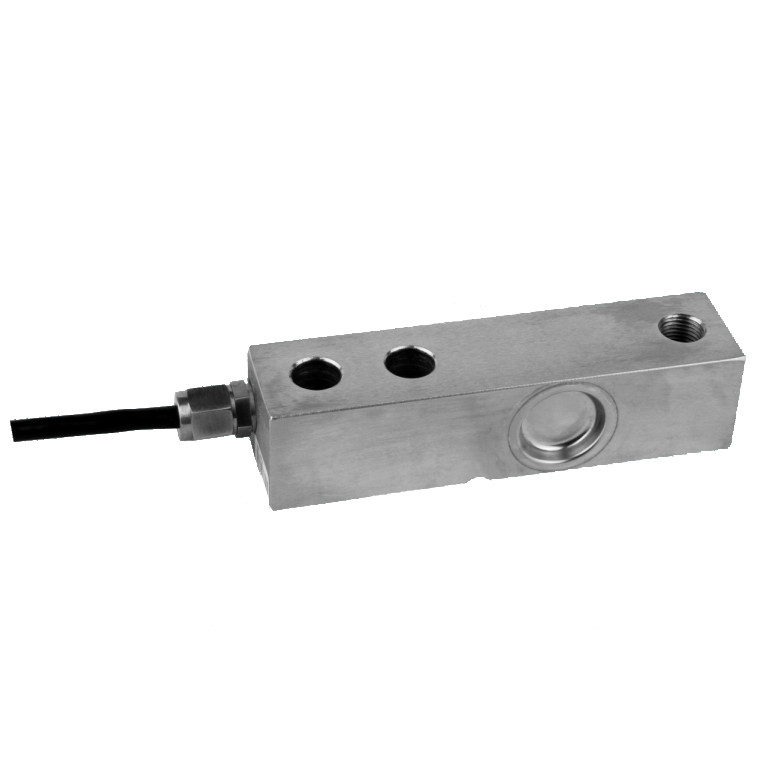

0.15t Platform Scale Load Cell

Product Details:
Place of Origin: CHINA
Certification: -
Model Number: SQB series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Online consultation
Packaging Details: Carton
Delivery Time: one week
Payment Terms: T/T
Supply Ability: 100000+pc+one week

Detail Information

Range: 0.1t、0.15t、0.2t、0.3t、0.5t、0.75t、1t、1.5t、2t、2.5t Material: Stainless Steel Or Alloy Steel
Product Name: Platform Scale Load Cell Non-repeatability: ±0.02% F.S
Temperature Range: -20— + 40 Readability: 1/3000
High Light:

0.15t weighbridge load cell


IP67 weighbridge load cell


15V weighbridge load cell

Product Description

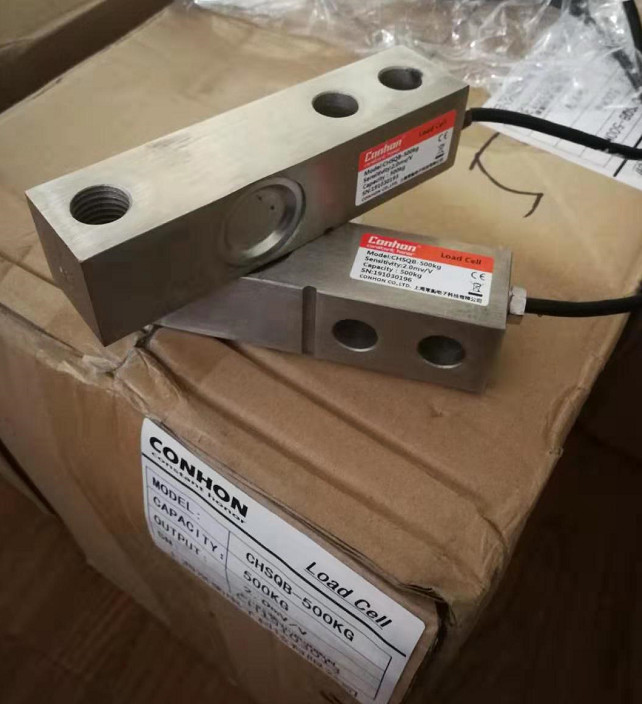

Platform Scale Load Cell SQB Series Load Cell SQB-5t Load Cell Weighbridge Load Cell
Product Details

Platform Scale Load CellFEATURES:

Capacity: 0.1t to 10t

Theaded load hole confirguration

Low profile

OIML C3 approval


Optional material: stainless steel, alloy steel



Floor scale

Tank weighing




0.15t Platform Scale Load Cell 0


Outline Dimension:

Rated capacity(t) L L1 L2 L3 L4 H H1 W C1 C2 T



130 12.7 76.2 25.4 53.5 31.8 15.7 31.8 Φ13.5 Φ13 M12
3,5 171.5 19 95.3 38.1 72.5 38.1 26 38.1 Φ20 Φ20 M18x1.5
7.5,10 225.5 25.3 124 50.8 102 50.8 25.4 50.8 Φ27 Φ27 M24x2





Rated capacity: 0.1ton to 10ton Operating temperature range: -30 to +70

Rated output:2.0±0.002mv/v(0.1t~0.3t)


Maximum safe overload150% OF R.C

Combined error:±0.03% F.S(alloy steel)

±0.05% F.S(stainless steel)

Ultimate safe overload180% OF R.C
Non-repeatability:±0.02% F.S Recommended Excitation10 to 12V DC
Non-linearity:±0.02% F.S Maximum Excitation15V DC
Hysteresis error:±0.02% F.S

Environment protection: IP67(0.1t~0.3t)


Zero balance: ±1% F.S Input impedance: 400±20Ω
Creep error(30minutes): ±0.02% F.S Output impedance: 352±3Ω
Temperature effect on zero: ±0.02% F.S Insulation resistance at 50V DC: ≥5000MΩ
Temperature effect on output: ±0.02% F.S Material: nickel-plated alloy steelStainless steel
Compensated temperature range: -10 to +40 Cable length: (1.5/3)meter(0.1t~2.5t),4.2meter(3t~5t),5meter(7.5t~10t),diameter 6mm

 We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
