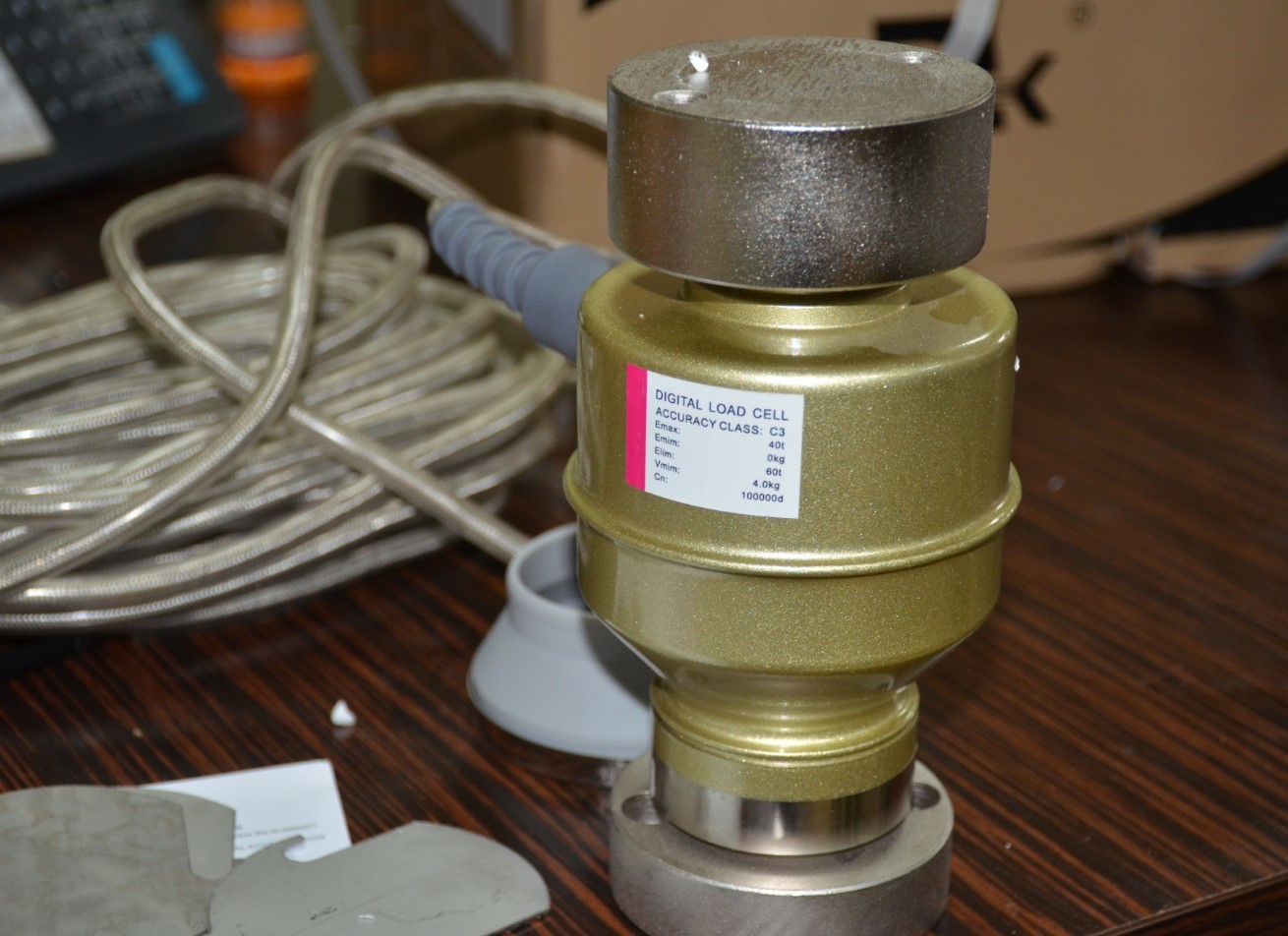

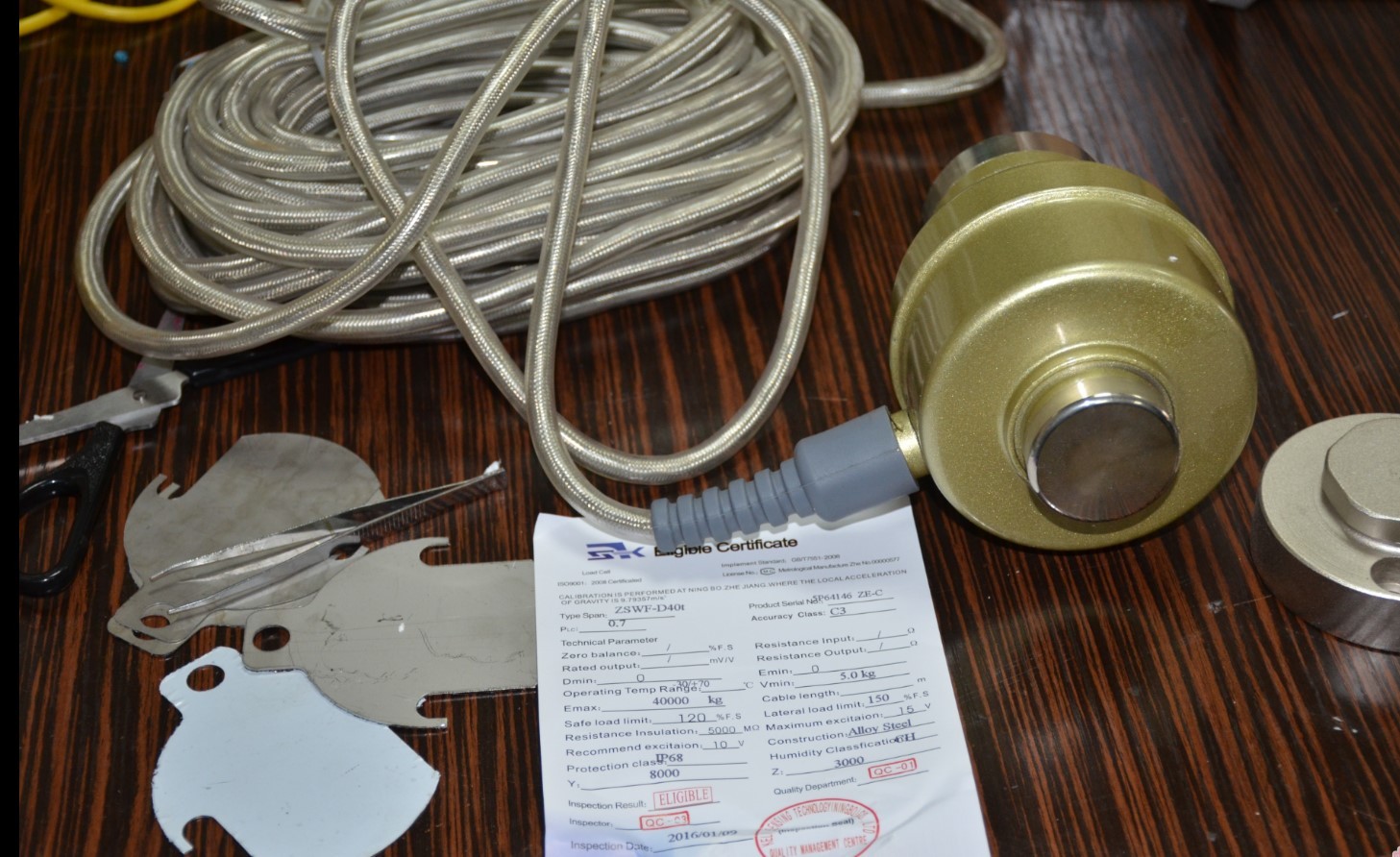

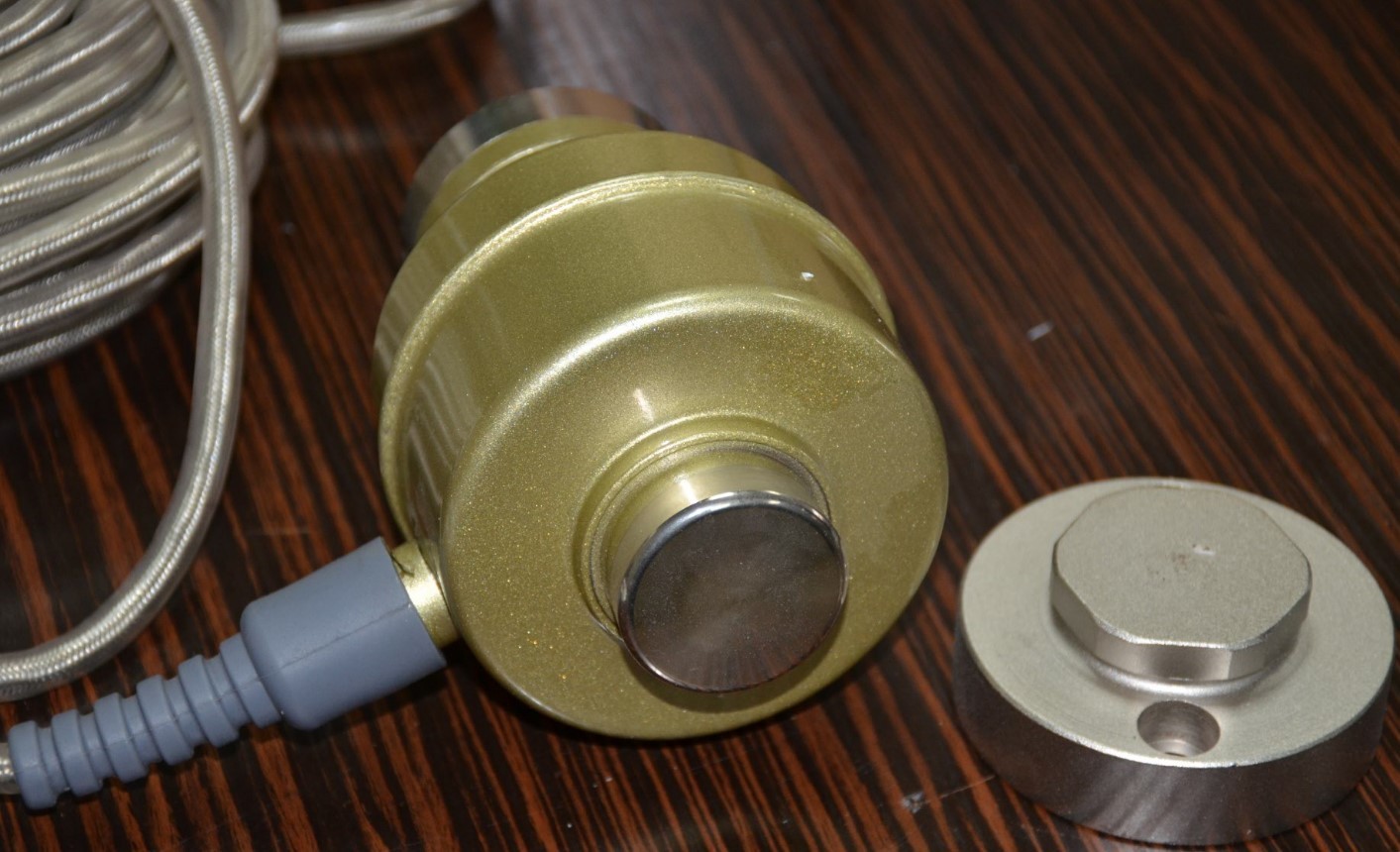

12t Digital Weighing Load Cell

Product Details:
Place of Origin: CHINA
Certification: -
Model Number: ZSWF-D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Online consultation
Packaging Details: Carton
Delivery Time: one week
Payment Terms: T/T
Supply Ability: 100000+pc+one week

Detail Information

Range: 10t,20t,30t,40t,50t,60t Material: Stainless Steel Or Alloy Steel
Product Name: Digital Weighing Load Cell Combined Error: ±0.02% F.S
Temperature Range: -20— + 40 Readability: 1/3000
High Light:

14t analog load cell


13t high capacity load cell


12t weight machine load cell

Product Description

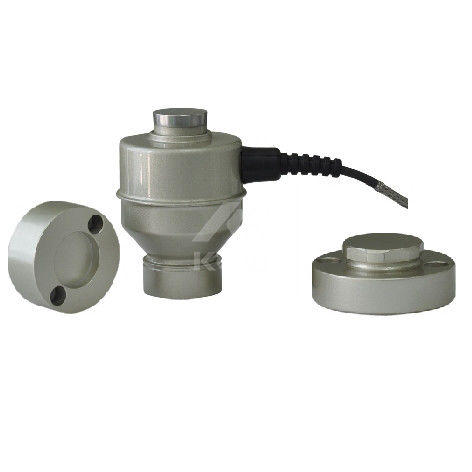

Digital Weighing Load Cell Truck Scale load cell ZSWF-D Series Load Cell ZSWF-D-30t Weighbridge Load Cell
Product Details


●Capacity 10t to 50t

●Double shake column structure digital sensor

●High degree of sealing

●OIML C5 approved

●Optional stainless steel, alloy steel available

●Optional fixed joint(ZSWF),Single air plugs(ZSWFB),Dual air plugs(ZSWFG)



●Truck Scale

●Hopper Scale

●Axle Load Scale

●Railway Scale

12t Digital Weighing Load Cell 0

Rated capacity D1 D2 D3 H1 H2 H3 T1 T2
10t,20t,30t,40t,50t,60t 83.5 64 99 140 150 200 M8 M8



Rated capacity: 10ton to 50ton Maximum safe overload: 150% OF R.C
Combined error: ±0.02% F.S Ultimate safe overload: 200% OF R.C
Non-repeatability: ±0.01% F.S Recommended Excitation: 7 to 15V DC
Non-linearity: ±0.01% F.S

Environment protection: IP68(ZSWF);


Hysteresis error: ±0.02% F.S Communication BPS: 9600/19200
Temperature effect on zero: ±0.012% F.S Communication Mode: RS 485
Temperature effect on output: ±0.01% F.S Material: alloy steel+stainless housing (ZSWF-AD,ZSWFB-AD,ZSWFG-AD) 100% made by stainless (ZSWF-ADSS,ZSWFB-ADSS,ZSWFG-ADSS)
Compensated temperature range: -10 to +40℃ cable: length__16meter;diameter__φ8.8mm
Operating temperature range: -30 to +70℃
Rated capacity: 10ton to 50ton Maximum safe overload: 150% OF R.C
Combined error: ±0.02% F.S Ultimate safe overload: 200% OF R.C
