15000kg Hanging Measuring Scales

Product Details:
Place of Origin: CHINA
Brand Name: Diniargeo
Certification: CE
Model Number: MCW09
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 5-8week
Payment Terms: T/T
Supply Ability: 999+pc+2m

Detail Information

Range: 3000 6000 9000 12000 17000 25000 30000 50000 Operating Temperature: -10 / + 40ºC
Charger Battery: 230Vac 50 Hz Precision: +/- 0,1% On F.S. For 12T To 50T Models
Model: MCW09
High Light:

Diniargeo heavy duty hanging scale

,

Diniargeo wireless weighing scale

,

15000kg hanging weight machine

Product Description

MCW09 "Professional" Single Safety Crane Rod Series High Precision Stainless Steel Hanging Scales

Stainless steel digital crane scale with IP67 protection against dust and sprays, 40mm DOT LED large display, for maximum visibility from all angles and in any lighting condition, even direct sunlight.
The single security system makes them suitable for lifting and weighing the load.
Sturdy and reliable, usable indoors as well as outdoors. Minimum reduction of the crane’s lifting space.
The models with up to 15000 kg capacity are fitted with test certificate obtained with sample weights, for higer capacities the certificate is available on request.

CRANE SCALE: MAIN FEATURES
Single security system, for the lifting and the weighing of the load.
In compliance with the directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30/EU.

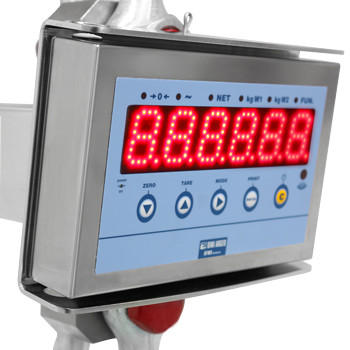

Extremely bright large red DOT LED 40mm display, which guarantees a perfect visibility of the weight from any angle, also from a long distance with direct sunlight.
Usable indoors as well as outdoors, great visibility also in full sunlight.
Adjustable brightness intensity.
Sturdy STAINLESS steel structure, with IP67 protection degree of the load cell and the electronics, against dust and sprays.
Fitted with approved galvanised shackles:
GR6 for MCW09T3
GR6 for MCW09T6
GR9 for MCW09T9
GR12 for MCW09T12
GR17 for MCW09T17
GR25 for MCW09T25
GR35 for MCW09T30
GR55 for MCW09T50
Extremely reduced distance between upper and lower shackles.
Precision: +/- 0,05% on F.S. for 3T to 9T models
Precision: +/- 0,1% on F.S. for 12T to 50T models
5-key waterproof keypad: ZERO, AUTOMATIC TARE, MODE, PRINT, and ON/OFF.
Programmable digital filter, for an excellent weight display in any working condition.
Programmable automatic switch-off function, either through keypad or remote control.
Fitted with radiofrequency 6-key remote control, configurable as simple automatic tare or as a remote keypad.
Configured for an 868MHz radio interface or WiFi, for connection to PC or to a remote terminal and printer.
Rechargeable battery, with an average life of about 30 hours.
Configured for a second optional extractable battery for 24/7 continuous use.
Fitted with 230Vac 50 Hz battery charger.
Programmable digital calibration and Set-Up directly from the keypad or from PC through Dinitools.
Operating temperature range: -10/+40 ºC.

PACKAGING IS INCLUDED IN THE PRICE
for the complete protection against scratches and bumps during transportation. The crane scale is shipped inside a sturdy wooden case which is custom made (MCW09T12-1, MCW09T17-1, MCW09T25-1, MCW09T30-1, MCW09T50-1 versions).

CRANE SCALE: REMOTE CONTROL FUNCTIONS
The crane scale is fitted with a radiofrequency remote control which allows to do the Zeroing; the tare; enable / disable functions; printing; switching-off the crane scale.
15000kg Hanging Measuring Scales 0
CRANE SCALE: SELECTABLE FUNCTIONS
PEAK (maximum value read).
HOLD (lock of the displayed weight).
Weighing totalization.
lb/kg/N conversion (see DFW weight indicators for more functions).
+/- checkweighing.
Percentage weighing.
Counting.
Peer-to-peer.
High Resolution Weighing x 10.

CRANE SCALE: OPTIONS (ONLY AT TIME OF ORDER)
Radio frequency weight transmission to remote indicator, up to 70m indoors.
868Mhz radio interface.
WI-FI interface.
Remote weight indicator connected in radio frequency, with the printer or other accessories.
ACCREDIA calibration certificate according to OIML/ASTM standards.

Hanging Scales Available versions

Code
Max
(kg)
d
(kg)
15000kg Hanging Measuring Scales 1
(kg)
d HR
(kg)*
  MCW09T3-1 3000 1 1 0,5
  MCW09T6-1 6000 2 2 1
  MCW09T9-1 9000 5 5 2
  MCW09T12-1 12000 5 - 2
  MCW09T17-1 17000 10 - 5
  MCW09T25-1 25000 10 - 5
  MCW09T30-1 30000 20 - 10
  MCW09T50-1 50000 20 - 10
