150% Steel Alloy 50t Digital Weighing Load Cell

Minimum Order Quantity : 1 Price : Online consultation
Packaging Details : Carton Delivery Time : one week
Payment Terms : T/T Supply Ability : 100000+pc+one week
Place of Origin: CHINA Brand Name: CONHON
Certification: - Model Number: CHC-D series

Detail Information

Range: 5t-50t Material: Steel Alloy
Rated Output: 2.0mV / V Product Name: Digital Weighing Load Cell
Accuracy Class: C3 Safety Overload: 150%
High Light:

50t weigh hopper load cells


Steel Alloy zemic digital load cell

Product Description

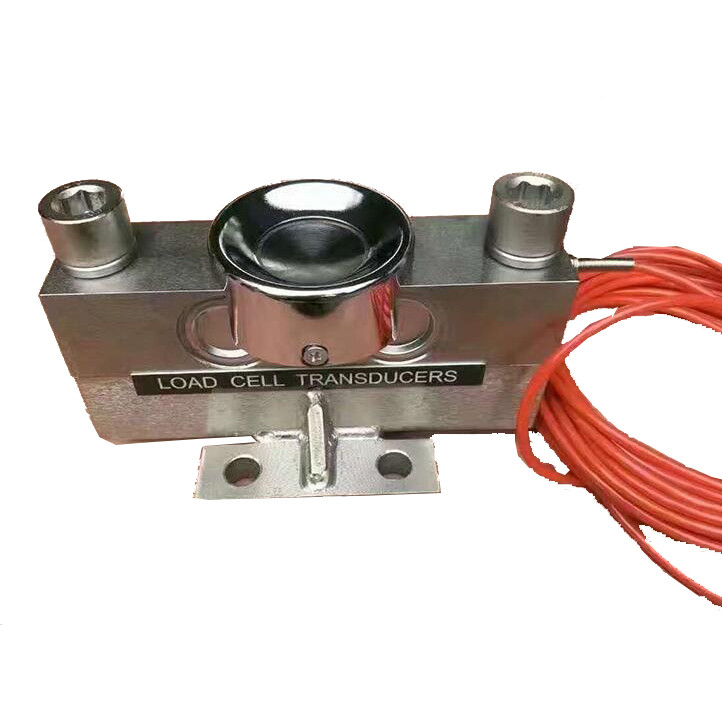

CHC-D40T Digital load cell Digital Truck scale load cell Digital Weighing Load Cell
CHC-D40T Digital load cell Basic Features:
Double shear beam
High-quality alloy steel
High precision
High stability
CMC certified
Complete installation and fast
Nickel plating on the surface
Suitable for truck scale, track scale and hopper scale, etc.
CHC-D40T Digital load cell Technical Parameters:
Sensitivity Output 20000 ~ 50,000 code
Accuracy class C3
Communication BPS 9600BPS
A / D module resolution 100000 yards
Comprehensive error ± 0.02% of rated output
Zero balance ± 1% of rated output
Creep after 30 minutes ± 0.03% of rated output
Non-linear ± 0.02% of rated output
Repeatability ± 0.02% of rated output
Safe temperature range -30C to + 70C
Safety overload 150%
Rated excitation 9 ~ 12V DC / AC
Maximum incentive 20V DC / AC
Protection class IP68
cable length 12m
Wire color Red (+ E) Black (-E) Green (+ S) White (-S)


CHC-D40T Digital load cell Dimensions:
150% Steel Alloy 50t Digital Weighing Load Cell 0
