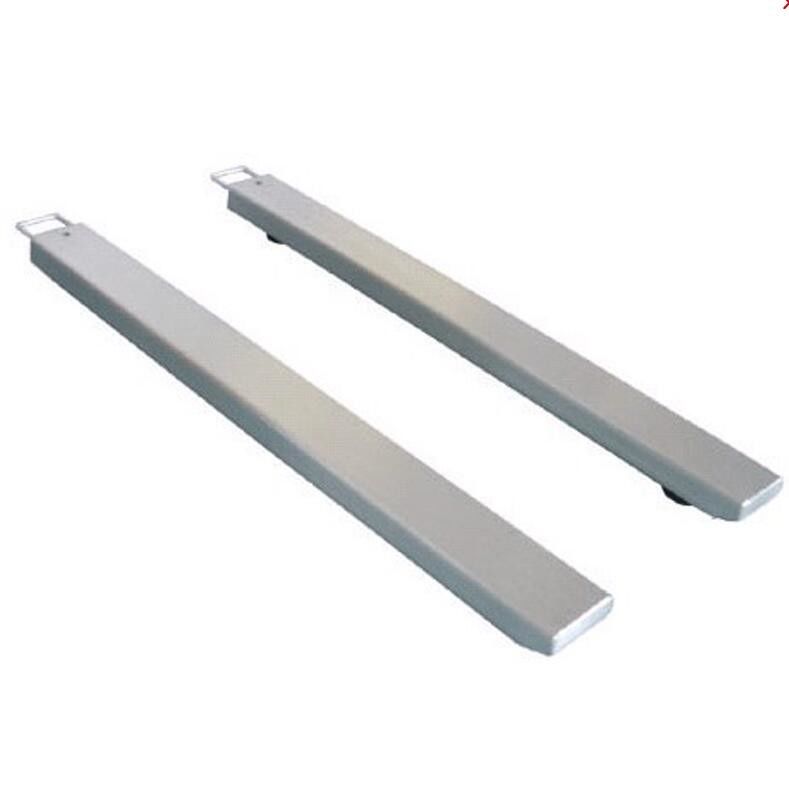

1T U Shape Scale

Product Details:
Place of Origin: CHINA
Brand Name: CONHON
Model Number: CHT-II
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Online consultation
Packaging Details: Carton
Delivery Time: one week
Payment Terms: T/T
Supply Ability: 100000+pc+one week

Detail Information

Product Name: U Shape Scale Range: 1T/2T/3T
Material: Carbon Steel Structure: Bar Scale
Working Temperature:: -10 ℃ ~ + 40 ℃ Accuracy Class:: III
High Light:

1T pallet weighing scale


1T stainless steel scale


1T electronic floor scales

Product Description

CHT-II U Shape Scalestrip electronic bar scale Bar Electronic Platform Scale Carbon steel bar scale

The electronic bar scale is a newly designed platform scale structure. It is a weighing system composed of 2 weighing bars (each weighing bar is equipped with 2 shear beam load cells) and a dedicated weighing instrument. ; After the simple transformation of the two weighing bars, a variety of weighing systems can be formed, which is very convenient to apply to the needs of various industries and weighing.

Technical parameters of strip electronic bar scale :

Accuracy grade: Ⅲ

Working temperature: -10 ~ + 40 ℃

Power supply: AC110 ~ 220v50 ~ 60Hz or DC 6v4Ah

Structural characteristics of electronic bar scale :

Two weighing blocks, using high-quality carbon steel

Each weighing bar is equipped with handles and wheels for easy movement;

Carbon steel surface is shot-blasted and plastic-treated, with good anti-corrosion performance;

Stainless steel surface polishing and drawing;

Four shear beam alloy steel sensors and special large feet;

Product Features of Bar Electronic Platform Scale:

Zero, Tare, Accumulate

Weighing, counting, checkweighing, sorting

Printing and communication interface RS232 / 485 (optional)

4 ~ 20mA analog output (optional)

Relay output, switch information (optional)

electronic bar scale:

Configuration The standard configuration Optional
Scale body carbon steel Stainless steel
lode cell alloy steel explosion-proof/stainless steel
Junction Box Stainless steel explosion-proof
indicator XK3190-A12 Print / Explosion / Counter / Large screen
annex / Leading slope / instrument column / moving mechanism



electronic bar scaleStandard sizes:

Bar s size




Division value


Countertop height

net weight


0.10×0.8 1/2/3 0.5/1/1 100 24
0.10×1.0 1/2/3 0.5/1/1 100 28
0.10×1.2 1/2/3 0.5/1/1 100 32
0.10×1.5 1/2/3 0.5/1/1 100



We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
