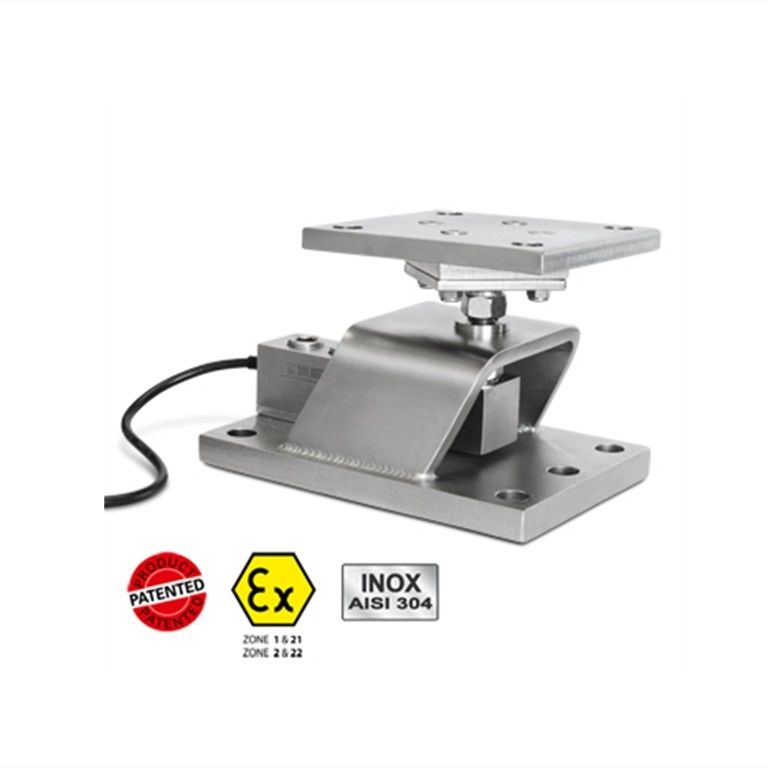

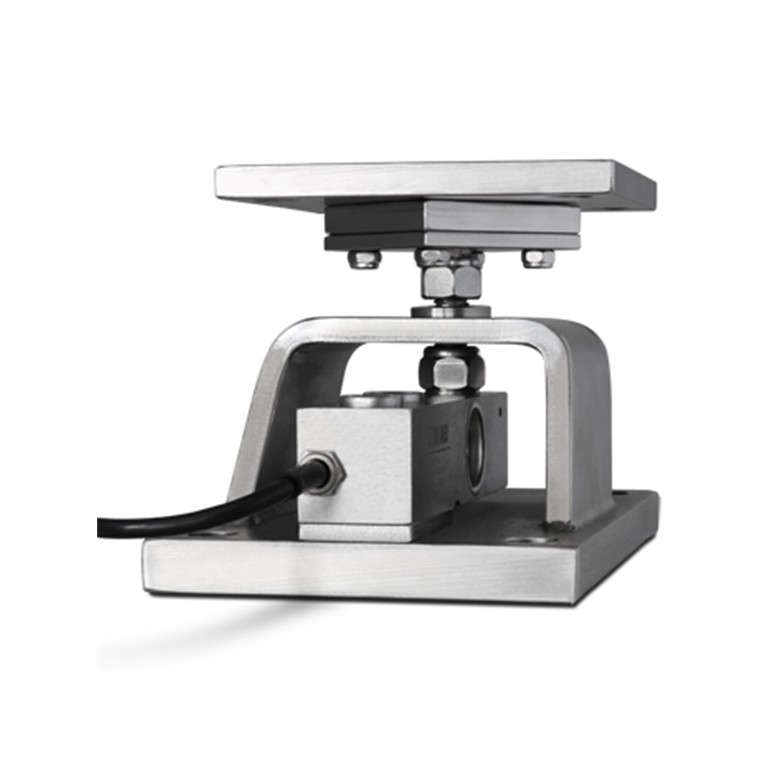

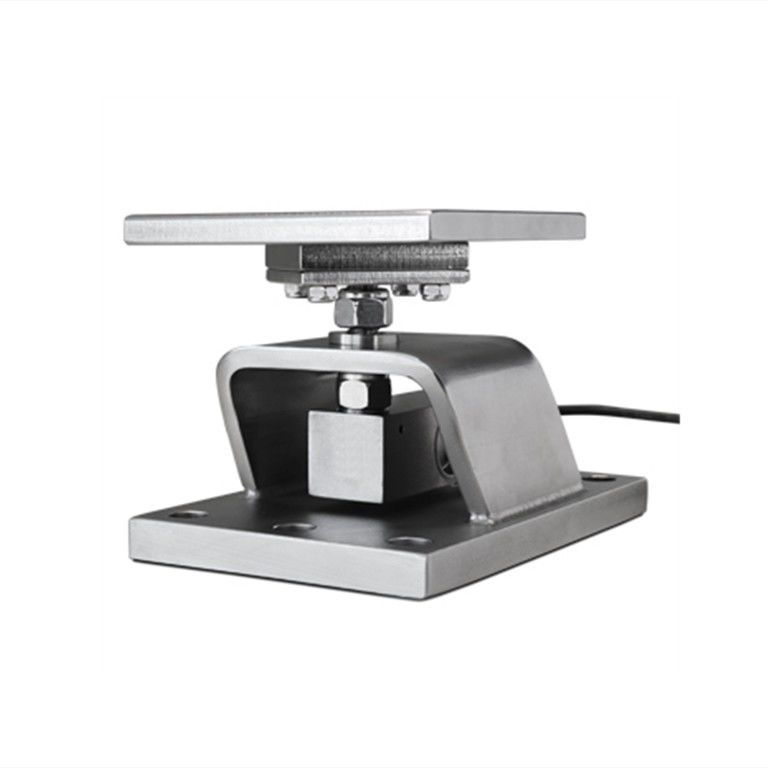

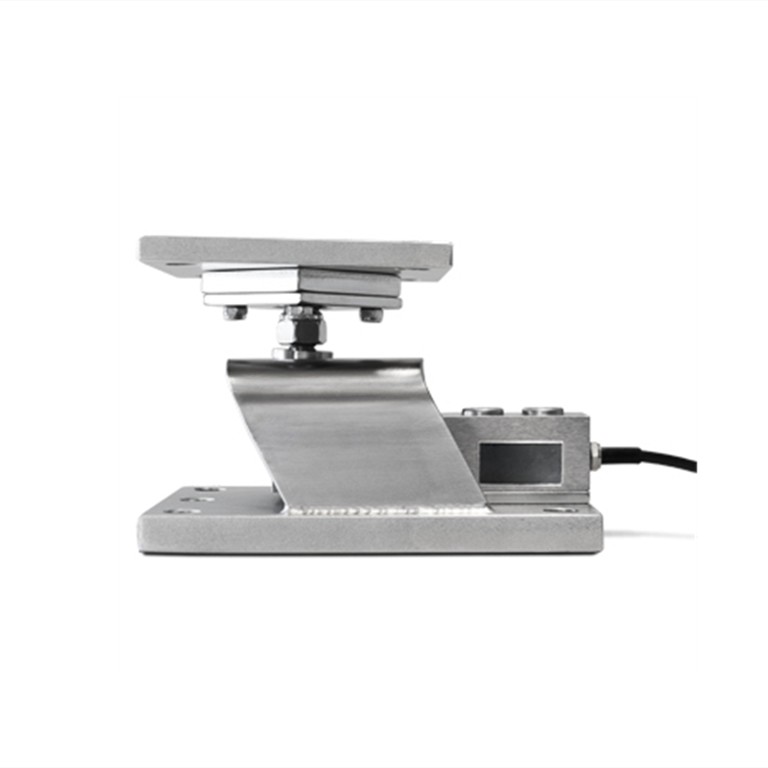

2500kg Stainless Steel Shear Beam Load Cell Module

Minimum Order Quantity : 1 Price : Online consultation
Packaging Details : Carton Delivery Time : one week
Payment Terms : T/T Supply Ability : 100000+pc+one week
Place of Origin: Italy Brand Name: diniargeo
Certification: CE Model Number: KSBX

Detail Information

Range: 500 To 2500 Kg Protection Class: IP68
Product Name: Load Cell Module Material & Plate: Alloy Steel
High Light:

Stainless Steel scale module


Shear Beam weigh module

Product Description

"KSBX" series STAINLESS steel kit, for SBK/SBX shear beam load cells


Assembly kit for SBX/SBK shear beam load cell up to 2.500 kg. Suitable for weighing of hoppers, tanks, platforms etc.
- AISI 304 STAINLESS steel construction
- Higher plate with configurable system "lock, "side" or "free"
- Mechanical joint for optimal weighing precision
- Height regulation for a correct levelling of the structure
- Anti-overturn
- Locking/bypass system for facilitated transport and maintenance
- ATEX version available, for zones 1&21, 2&22.
Rapid installation / removal of the cell, even with full-loaded structure.
Higher plate with system of expansion compensation, having three specific functions (lock, side and free).
Bypass function for transport/moving of the structure and maintenance.
Anti-overturn (within the limits indicated in the product manual).
Limit function against accidental overload (within the limits indicated in the product manual).
Fake cell function for weighing of liquid materials.
Manufactured with technologies studied and designed by Dini Argeo.
Suitable for SBX/SBK load cells, up to 2500kg (not included in the kit).
Fully in STAINLESS steel AISI 304, with electropolished finishing, for better resistance to external agents.
Oscillating joint, for optimal weighing precision.
Simplified base fixing with 3 holes, or complete with 4 holes.
The kit is designed to allow the correct functioning of the cells and obtain optimal weighing precision. However, it does not have protection function for the cell, neither for the structure. Consult the manual for more technical details.
Thanks to its special higher plate, the KSBX kit can be easily configured in the installation phase, in order to contrast or facilitate the expansions of the structure to be weighed, and without being forced to choose particular accessories or versions when ordering the material.
The three specific configurations are:
- "lock" mode, completely locked movement, which contrast expansions and side forces from any direction
- "side" mode, free movement in just one direction, useful to avoid rotations and twisting
- "free" mode, free movement in any direction
Available versions
  Code Description
2500kg Stainless Steel Shear Beam Load Cell Module 0 KSBX2 Stainless steel kit for assembling 1 SBT/SBK/SBX cell from 300 to 2500kg.
Stay rod
  Code Description
2500kg Stainless Steel Shear Beam Load Cell Module 1 LNK2635 Galvanized stay rod with ball-and-socket joints. Max 100 kN. For proper installation, 2xLNKST are needed.
2500kg Stainless Steel Shear Beam Load Cell Module 2 LNKST Single plate for stay rod. Fitted with fixing screw. (For proper installation, LNK2635 and a second LNKST are needed).
Options for ATEX version
  Code Description
2500kg Stainless Steel Shear Beam Load Cell Module 3 DCATEXMECH ATEX declaration for the PLATFORM / LOAD CELL ASSEMBLY KIT (for the load cells ATEX declaration see CCATEX code). Option to be offered only if the platform is ordered without the indicator, if so, refer to the chosen weight indicator available certifications.
Other options
  Code Description
2500kg Stainless Steel Shear Beam Load Cell Module 4 GNDC Grounding cable for weighing kit. 16 mm² section cable, 13 mm eyelets.
