Anti Overturn 10000 Kg Alloy Steel 6m Load Cell Module

Minimum Order Quantity :	1	Price :	Online consultation
Packaging Details :	Carton	Delivery Time :	one week
Payment Terms :	T/T	Supply Ability :	100000+pc+one week

Place of Origin:	Italy	Brand Name:	diniargeo
Certification:	-	Model Number:	KCPN

Detail Information
Range:	250 To 10000 Kg	Protection Class:	IP68
Product Name:	Load Cell Module	Material & Plate:	Alloy Steel
Perating Temperature Range::	O -30°C/+70°C	Line Length:	3-6m
High Light:	10000 Kg weight sensor module , 6m load cell mounting accessories

Product Description

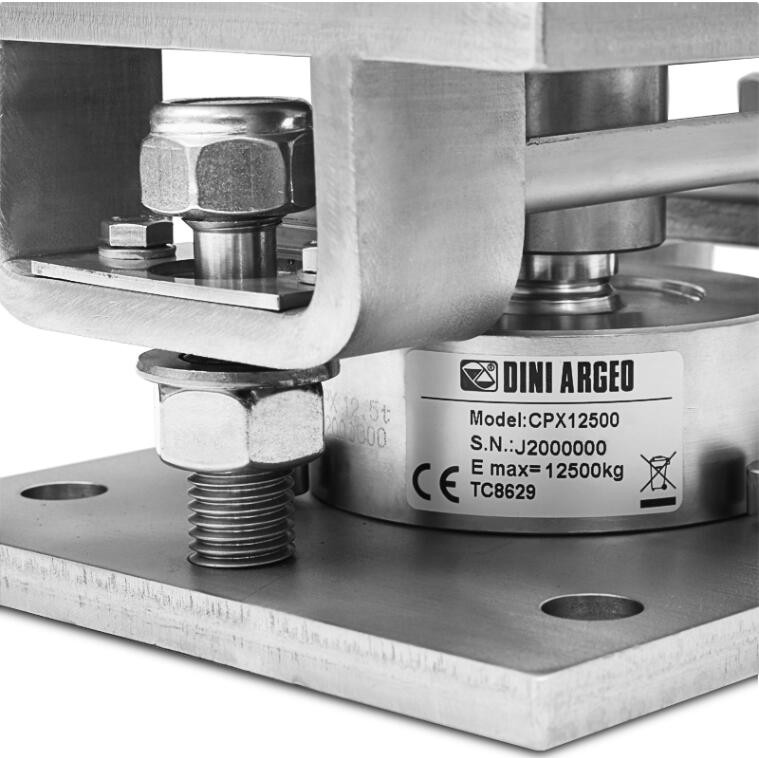

Italy diniargeo KCPN load cell module CPX sensor module Load cell mounting accessories

Assembly kits for compression load cells CP/CPX series up to 100,000kg, suitable for weighing silos, tanks, hoppers of big size.
ADVANTAGES:
- Body in STAINLESS steel AISI 304.
- Centering plate.
- Protection against electrostatic discharges.
- Anti-overturn system.
- Locking/bypass system for facilitated transport and maintenance.
- ATEX version available for zones 1&21, 2&22.

MAIN FEATURES

AISI304 STAINLESS STEEL BODY.
GREAT RESISTANCE TO LATERAL FORCES.
NUT FOR MAINTAINING THE RAISED POSITION, FOR EASY INSTALLATION AND/OR SUBSTITUTION OF THE LOAD CELL.
LIMIT-SWITCH NUTS FOR PROTECTION OF THE LOAD CELLS IN CASE OF OVERLOAD.
SELF-CENTERING CONNECTION SEGMENT BETWEEN LOWER AND UPPER PLATES.
DUMMY LOAD CELLS FUNCTIONING FOR THE WEIGHING OF LIQUIDS.

The KCPN kit is designed to allow the correct functioning of the cells and the requested weighing accuracy, within the limits described into the technical manual.

Available versions

	Code	Description
	KCPN10	Stainless steel kit for assembling a CP/CPX cell, up to 12500kg. (Load cell not included)
	KCPN15	Stainless steel kit for assembling a 15000kg CP/CPX cell. (Load cell not included)
	KCPN30	Stainless steel kit for assembling a 30000kg CP/CPX cell. (Load cell not included)
	KCPN100	Stainless steel kit for assembling a CP/CPX cell from 50000 to 100000kg. (Load cell not included)

Stay rod

	Code	Description
	LNK2635	Galvanized stay rod with ball-and-socket joints. Max 100 kN. For proper installation, 2xLNKST are needed.
	LNKST	Single plate for stay rod. Fitted with fixing screw. (For proper installation, LNK2635 and a second LNKST are needed).

Options for ATEX version

	Code	Description
	DCATEXMECH	ATEX declaration for the PLATFORM / LOAD CELL ASSEMBLY KIT (for the load cells ATEX declaration see CCATEX code). Option to be offered only if the platform is ordered without the indicator, if so, refer to the chosen weight indicator available certifications.

Other options

	Code	Description
	GNDC	Grounding cable for weighing kit. 16 mm² section cable, 13 mm eyelets.
