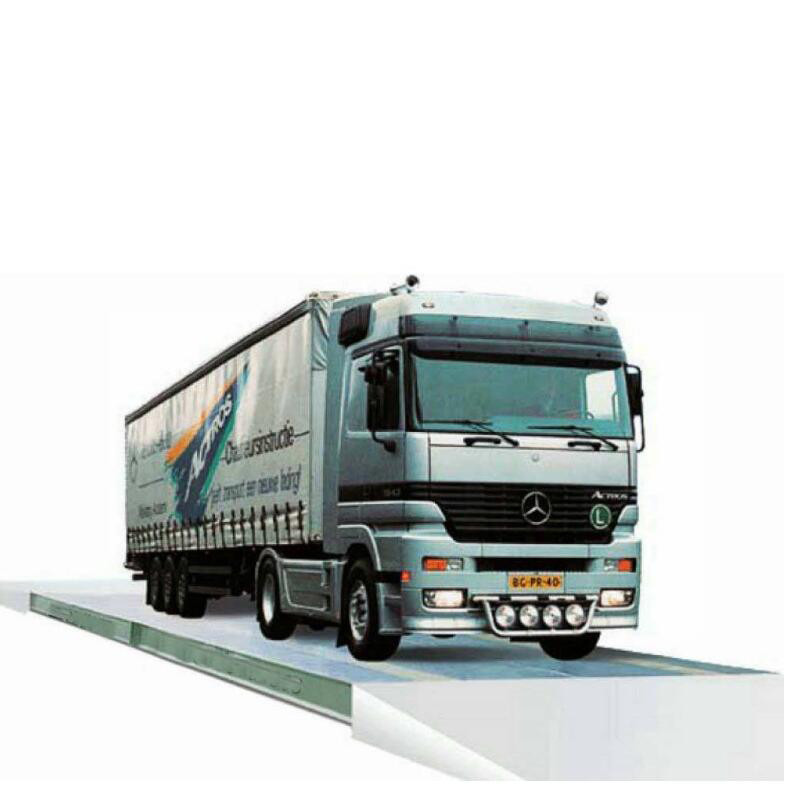

26m Weighbridge Truck Scale

Product Details:
Place of Origin: CHINA
Brand Name: CONHON
Model Number: CHD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Online consultation
Packaging Details: Carton
Delivery Time: one week
Payment Terms: T/T
Supply Ability: 100000+pc+one week

Detail Information

Product Name: Weighbridge Truck Scale Range: 50t,80t,10t, 120t,150t,200t
Accuracy: Display Mode:: 6-digit LED
Material: Carbon Steel Temperature Range: -20— + 40
High Light:

26m industrial floor scales


26m vehicle weight scales


26m analog weight machine

Product Description

CHD-80T analog Weighbridge Truck Scale analog electronic truck scales Analog electronic floor scale

 CHD-80T analog Weighbridge Truck Scale are suitable for weighing and weighing of heavy-duty cargo vehicles in ports, docks, airports, mines, metallurgy, materials, warehouses and factories and enterprises. It pioneered the separation of digital technology. By performing A / D conversion on the signal output by the analog sensor, the signal from the junction box to the instrument is a digital signal, which reduces the chance of remote control cheating, temperature, and radio frequency interference. The transmission distance is far longer than the ordinary analog type, the signal transmission is more stable, the use is more stable, and the maintenance is more convenient. The use of this technology can realize the upgrade and reconstruction of the old analog electronic truck scale.

The scale body adopts a U-shaped cross-section beam as the mechanical structure of the scale body, which has a reasonable structure and strong rigidity. Carbon dioxide gas welding is used for continuous welding. The cavity is fully sealed, waterproof and corrosion resistant. The connecting part of the multi-section scale body for installing sensors is reasonably and cleverly designed, and it is extremely convenient to install and maintain, and the scale body will never be subverted.

Standard configuration of analog truck scale:

U-shaped steel group welding all-steel weighing platform + high-precision bridge sensor + with print weighing display + stainless steel junction box

Characteristics of CHD-80T analog Weighbridge Truck Scale :

★ Modular, standardized, serial weighing platform, multi-unit combination
★ Automatic reset force transmission mechanism

★ Digital display of gross weight, net weight and tare weight

★ Digital filtering, automatic zero tracking

★ Automatic peeling and automatic peeling

★ Keyboard setting / correction

★ Car number, tare weight storage, itemized accumulation, total accumulation

★ Failure self-diagnosis

★ Data output / auto print

★ Analog basic configuration:

★ Maximum weighing: 10-200 tons

★ Weighing platform width: 3.0m / 3.4m

★ Weighing platform length: 10m ~ 26m

★ Non-standard sizes can be customized according to customer requirements.

★ Accuracy level: III;

other instructions:
1. The electrical part has two configurations of analog and digital, the digital has better anti-cheating and anti-interference performance;
2. Optional pin printer (standard configuration is built-in thermal printing of the meter) large screen, weighing software, etc .;
3. There are two installation methods without foundation pit or with foundation pit. The method without foundation pit is recommended;
4. Multiple explosion-proof modes are available;
5. Optional unattended system;
6. Provide OEM and ODM production;




We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
