|Product Name:||Explosion Proof Scale||Range:||500kg，1t，2t，3t|
|Accuracy:||0.2kg，0.5kg，1kg||Platter Size (mm) (W X D):||0.8×1.2|
|Accuracy Level::||OIML Ⅲ||Explosion-proof Grade::||Ex Iad IIBT4, Ex Ibd II BT4, Ex Ib II CT5|
φ400mm explosion proof floor scale,
500kg explosion proof floor scale,
1t explosion proof floor scale

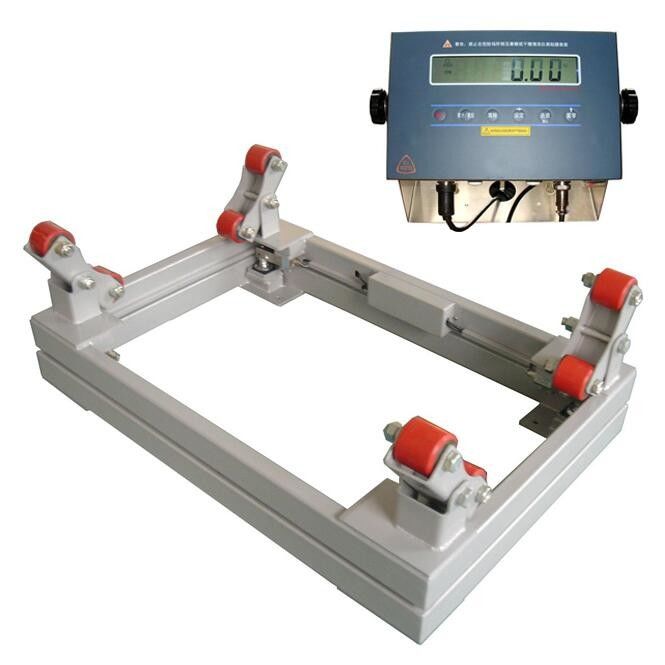

CHGP-EX Explosion Proof Scale Explosion-proof electronic cylinder scale Intrinsically Safe Cylinder Scale
Ex-series explosion-proof electronic cylinder scale is suitable for use in explosion-proof occasions. It adopts a frame structure scale body, equipped with four explosion-proof load cells and explosion-proof junction boxes, and is equipped with explosion-proof instruments. Explosion-proof cylinder scales are widely used in chemical and other industries with explosive gases And explosive dust ring, the system has high accuracy, rapid weighing, stable and reliable work, simple and convenient installation and maintenance.
Description of explosion-proof electronic cylinder scale:
The cylinder support bracket installed on the weighing platform can facilitate the rotation of the cylinder, and the nylon roller bracket with two installation positions to adapt to different diameters
With grounding cable
Suitable for weighing cylinders with a diameter of φ400 ~ 800mm
Optional: alarm function; three-color warning lights; 0-24mA / 0-10v output interface with control; relay output contacts, etc.
Features of explosion-proof electronic cylinder scale:
The weighing platform adopts a frame structure, and the surface is treated with anti-corrosion and plastic spraying.
The cylinder electronic scale has the characteristics of corrosion resistance, easy cleaning and convenient use.
The cylinder support bracket installed on the cylinder electronic scale platform can facilitate the rotation of the cylinder.
Technical parameters of explosion-proof electronic cylinder scale
Explosion-proof grade: Ex iad IIBT4, Ex ibd II BT4, Ex ib II CT5
Explosion-proof category: intrinsically safe
Accuracy level: OIML Ⅲ
Maximum weighing: 500kg, 1t, 2t, 3t
Accuracy: 0.2kg, 0.5kg, 1kg
Table size (M): 0.8 × 1.2
Working temperature: weighing platform and sensor—20 ℃ --- + 60 ℃ Weighing display instrument—10 ℃ --- + 40 ℃
