5t Industrial Weighing Scale

Product Description

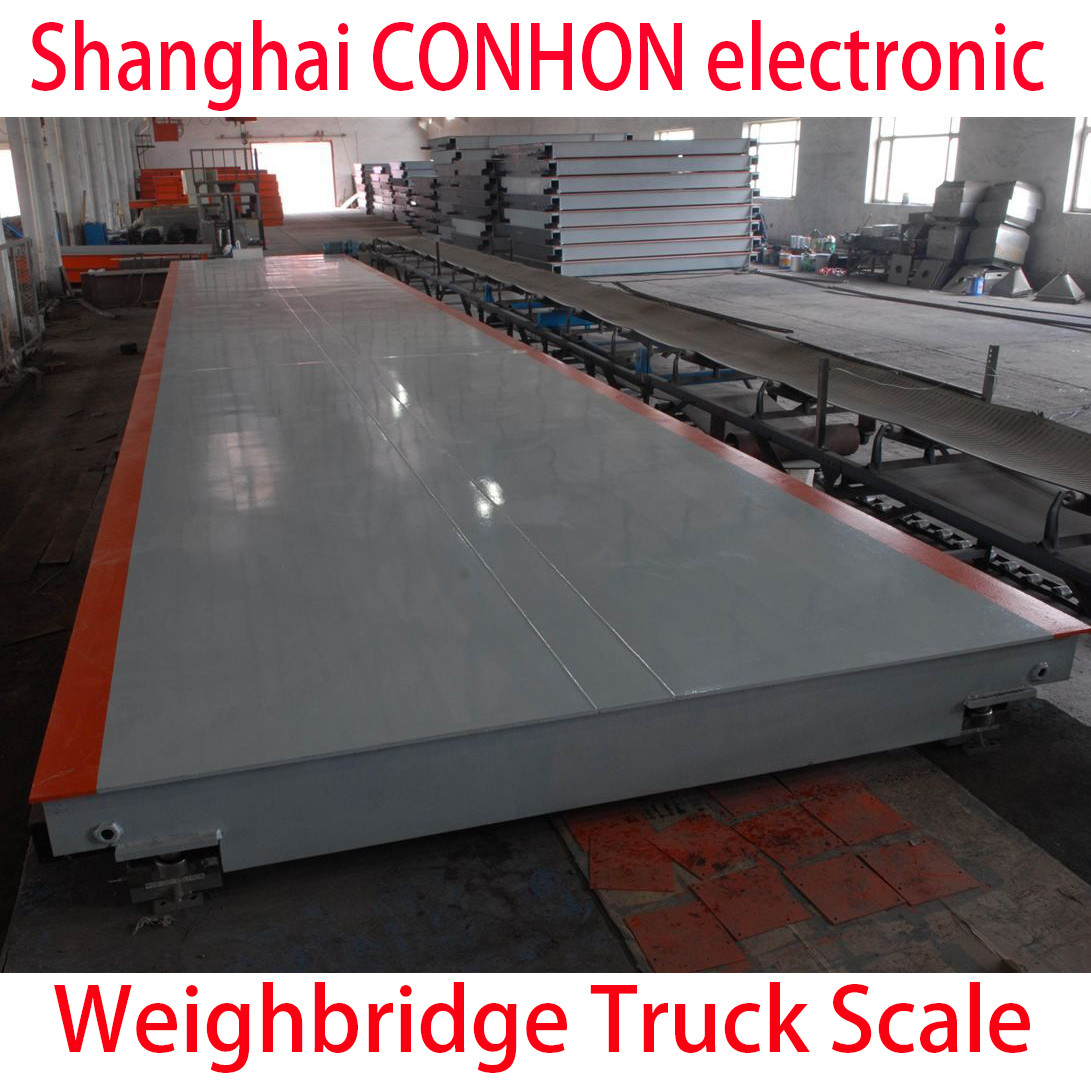

CHQ-100T Weighbridge Truck Scale Analog truck scale Split electronic truck scale

CHQ-100T Weighbridge Truck Scale are specially developed for various types of light trucks, such as tractors, three-wheeled vehicles, etc. The main body is welded by 5 U-shaped beams, the panel thickness is 8-10mm, the installation height is 25mm, the scale body and the scale surface are anticorrosive and Rust treatment, mainly used for: wholesale of agricultural and sideline products, material recycling transactions, etc.

Technical parameters of small electronic truck scale:

Accuracy grade: Ⅲ

Working temperature: -15 ~ + 50 ℃

Power supply: AC110 ~ 220v50 ~ 60Hz or DC 6V 4Ah

Components of small electronic truck scale:

Reinforced scale body, four alloy steel sensors, 5-hole stainless steel junction box, intelligent instrument, double shielded cable

CHQ-100T Weighbridge Truck Scaleproduct features:

Tare, check weight, can store 1000 groups of vehicle brand and tare weight, Chinese and English cargo names, weighing records;
Automatic / manual, unconditional / conditional, daily report / sorted statistics report print settings;

Equipped with RS-232C / RS422 / RS485 (optional)
Can display and print various cargo names, license plate numbers and customer company names in Chinese and English;

Other instructions for small electronic truck scales:
The electrical part has two configurations of analog and digital;
Optional wireless meter, large screen, etc .;
CHQ-100T Weighbridge Truck Scale are divided into two types of installation methods: no foundation pit or foundation pit;
It can be placed directly on hard concrete pavement with framed and leading slope;
Optional mobile device; becomes a mobile small truck scale
Provide OEM, ODM system

CHQ-100T Weighbridge Truck Scale specification:
