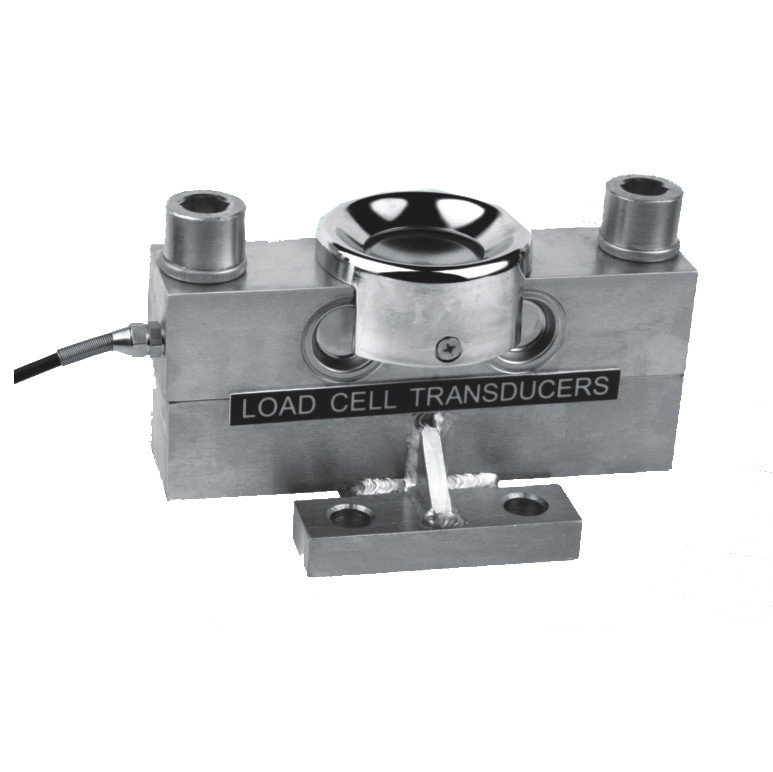

5t Truck Scale Load Cells

Product Details:
Place of Origin: CHINA
Certification: -
Model Number: QS series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Online consultation
Packaging Details: Carton
Delivery Time: one week
Payment Terms: T/T
Supply Ability: 100000+pc+one week

Detail Information

Range: 5t、10t、15t、20t、25t、30t、40t、50t Material: Stainless Steel Or Alloy Steel
Product Name: Truck Scale Load Cell Rated Output: 2.0±0.002mv/v
Temperature Range: -20— + 40 Readability: 1/3000
High Light:

6t precision load cell


7t load cells for weighing


8t weighing load cell

Product Description

Truck scale load cell Weighbridge load cell Bridge load cell QS Series Load Cell QS-30t Load Cell
Product Details

Truck scale load cellFEATURES:

Capacity: 5t to 50t

Steel ball loading, strong restoration ability

Easy complete installation, high weighing accuracy

OIML C3 certificate

Alloy Steel


Bridge load cellAPPLICATION:

Truck scale

Railway scale

Blending scale and all kinds of weighing apparatus


5t Truck Scale Load Cells 0

Outline Dimension:
Rated capacity(t) L L1 L2 L3 W W1 W2 H H1 H2 C1 C2 C3
5 224 125 80 45 135 100 10 168.8 11 20 Φ68 Φ30 Φ18
10,15,20,25,30 240 125 80 45 135 100 10 223.5 11 20 Φ85~88 Φ30 Φ18
40 240 125 80 45 135 100 10 239.5 11 20 Φ88 Φ30 Φ18
50 340 160 124 45 160 124 10 260 11 20 Φ98 Φ40 Φ22




Rated capacity: 5ton to 50ton Operating temperature range: -30 to +70
Rated output:2.0±0.002mv/v Maximum safe overload150% OF R.C
Combined error:±0.03% F.S Ultimate safe overload200% OF R.C
Non-repeatability:±0.02% F.S Recommended Excitation10 to 12V DC
Non-linearity:±0.02% F.S Maximum Excitation15V DC
Hysteresis error:±0.02% F.S Environment protection: IP68
Zero balance: ±1% F.S Input impedance: 750±10Ω
Creep error(30minutes): ±0.02% F.S Output impedance: 702±3Ω; 703±5Ω(cable≥15m)
Temperature effect on zero: ±0.02% F.S Insulation resistance at 50V DC: ≥5000MΩ
Temperature effect on output: ±0.02% F.S Material: nickel-plated alloy steel
Compensated temperature range: -10 to +40

Cable length: 5.2meter(5t);8meter(10t); 10meter(15t);

10/12meter(20t);12/16meter(25t~50t),diameter 6mm

We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
