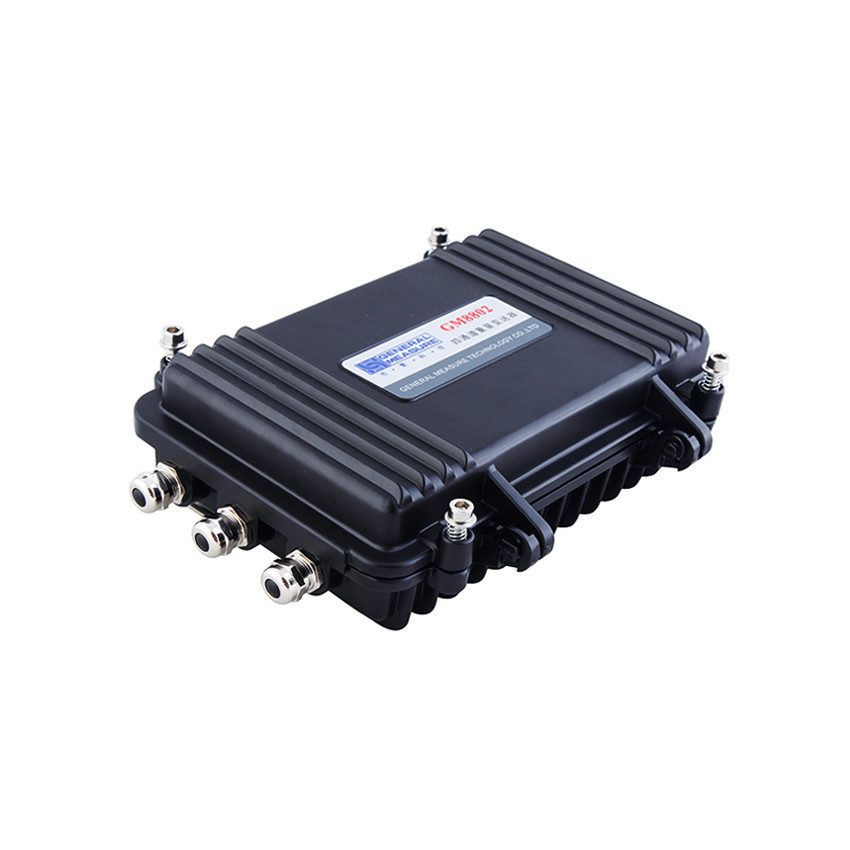

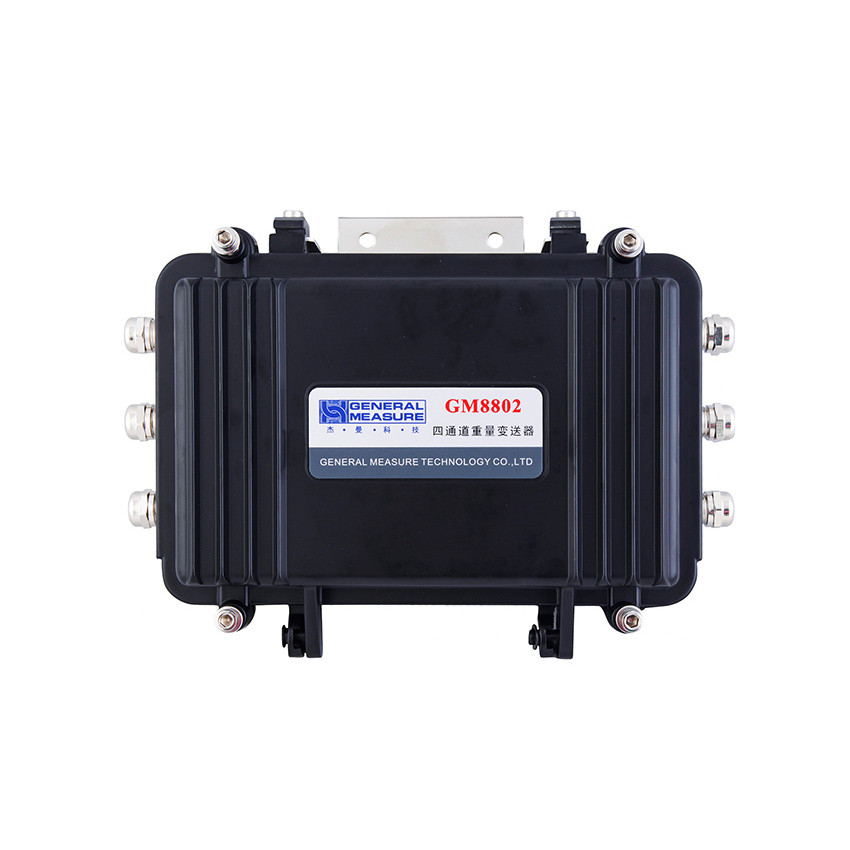

78MM Weighing Accessories

Product Details:
Place of Origin: CHINA
Brand Name: General Measure
Certification: -
Model Number: GM8802F/E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Online consultation
Packaging Details: Carton
Delivery Time: one week
Payment Terms: T/T
Supply Ability: 100000+pc+one week

Detail Information

Product Name: Weighing Accessories Power Supply: DC18V ~ 36V
Operating Temperature: -10 ~ 45 ℃ Communication Interface: RS232 / RS485
Size: 270 * 202 * 78 Mm Control Type: 4-way / 2-way Weight
High Light:

78MM Weight transmitter


2 way Digital transmitter


2 way weighing transmitter

Product Description

GM8802F / E Weighing Accessories Weight transmitter Digital transmitter Multi-channel weighing transmitter


GM8802F-4 / 2 field weight transmitter is a four-channel / two-channel weight transmitter developed for industrial weighing field applications. This transmitter adopts on-site installation and can be widely used in concrete and asphalt mixing stations, feed, metallurgy, chemical batching and other occasions.


GM8802F / E Weighing Accessories Features:

● On-site installation, dustproof and waterproof


● 24-bit high-precision two-channel, four-channel / two-channel independent AD acquisition module


● Support GM protocol, standard ModBus RTU / ASCII and other protocols


● With 32-bit processor, has stronger data processing ability


● Using special data package transmission method, the communication speed of a single instrument increases by 2 to 4 times per year


● Replace meter with ticket-free code calibration, with backup and restoration of working parameters


GM8802F / E Weighing Accessories specification:


Control type 4-way / 2-way weight
Installation method On-site installation
size 270 * 202 * 78 mm
Working power DC18V ~ 36V
Operating temperature -10 ~ 45 ℃
Maximum temperature 90% R.H non-condensing
strength About 5W
Sensor power DC5V 500mAh
level of accuracy Class III
A / D conversion method Sigma-Delta
A / D conversion speed 120 times / second
Highest display accuracy 1/50000
Communication Interface RS232 / RS485

GM8802F / E Weighing Accessories  dimension:

78MM Weighing Accessories 0

GM8802F / E Weighing Accessories  User diagram:

78MM Weighing Accessories 1
