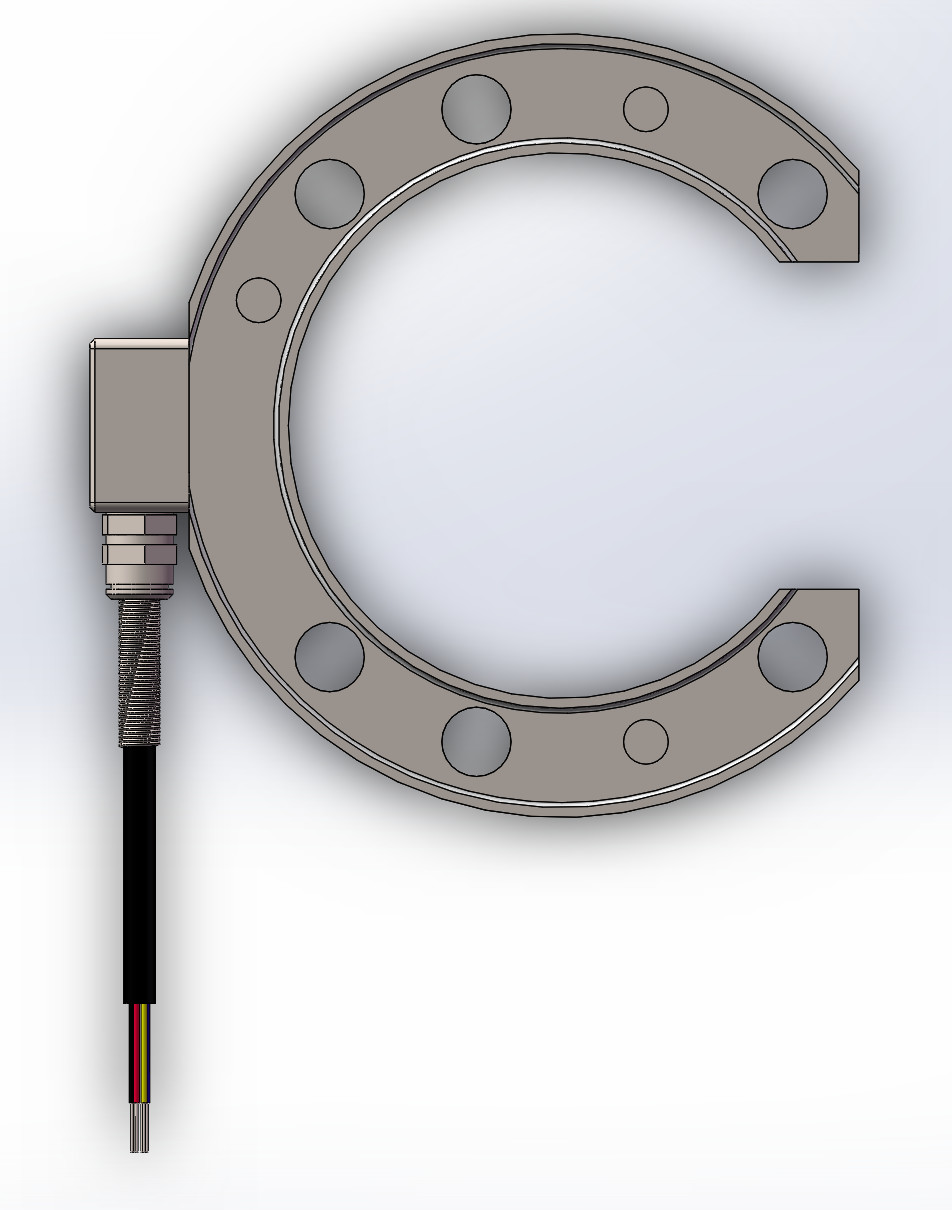

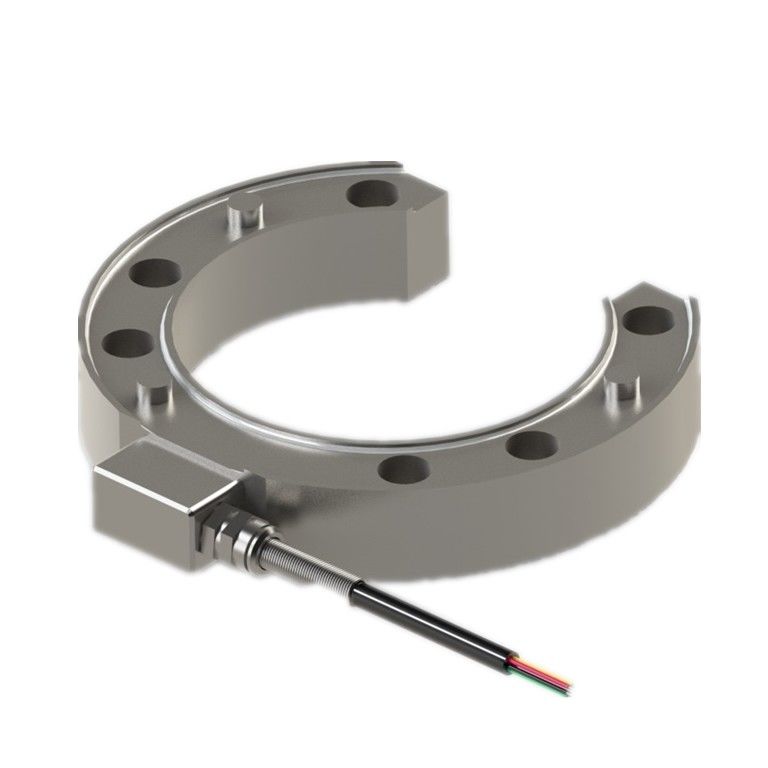

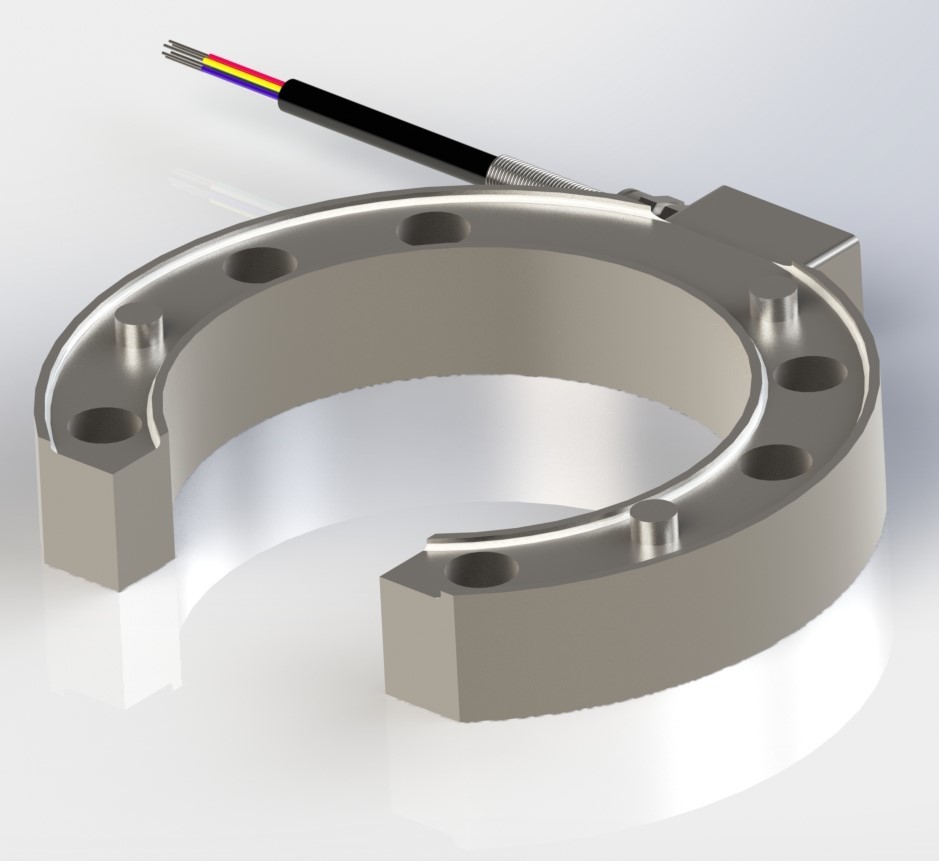

Aluminum Alloy CHCO5 15t Flange Pressure Load Cell

Minimum Order Quantity : 100 Price : ￥800-10000/pcs
Payment Terms : T/T Supply Ability : 99999+pc+1m
Place of Origin: CHINA Brand Name: CONHON
Certification: CE Model Number: CHCO5

Detail Information
Communication:: RS232/485 Material:: Aluminum Alloy
Rated Output:: Accuracy Level Range: 15T
Safe Temp. Range: -10ºC To + 70ºC Temp. Compensated: -10ºC To + 40ºC
High Light:

15t forklift load cell

,

Conhon forklift load cell

,

Conhon miniature load cell

Product Description

CHCO5-15t flange pressure Load Cells (15t)



Product parameters:



15T (Customizable range)

Rated Output
额定输出
2.0mV/V ±10%
Zero Balance
零点平衡
±3% of rated output
Creep after 30 minutes
蠕变
±0.03% of rated output
Nonlinearity
非线性
±0.03% of rated output
Hysteresis
滞后
±0.03% of rated output
Repeatability
重复性
±0.03% of rated output
Temp. effect on output
灵敏度温漂
≤0.002% of applied output/ºC
Temp. effect on zero
零点温漂
≤0.002% of rated output/ºC
Safe Temp. Range
可用温度范围
-10ºC to + 70ºC
Temp. Compensated
温度补偿范围
-10ºC to + 40ºC
Safe Overload
安全载荷
150%
Input Impedance
输入阻抗
410 ohm ± 20 ohm
Output Impedance
输出阻抗
350 ohm ± 5 ohm
Insulation Resistance
绝缘阻抗
≥5000 M ohm (50V DC)
Rated Excitation
推荐激励电压
10V DC/AC
Maximum Excitation
最大激励电压
15V DC/AC
Cable Length
导线长度
13cm/35cm/275cm
Cable Color Code
导线颜色
Red(+E) Black(-E) Green(+S) White(-S)

Product Size:Aluminum Alloy CHCO5 15t Flange Pressure Load Cell 0
