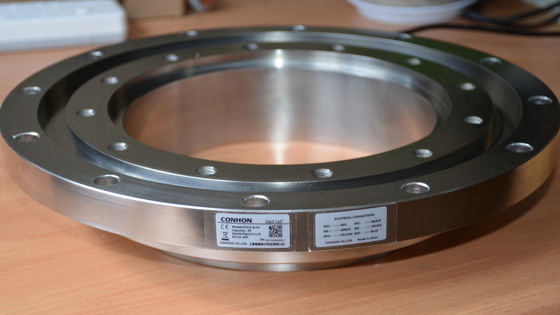

CHBW-LF Constant Pressure Flanged 5t Electronic Load Cell

Minimum Order Quantity : 100 Price : ¥800-10000/pcs
Payment Terms : T/T Supply Ability : 99999+pc+1m
Place of Origin: CHINA Brand Name: CONHON
Certification: CE Model Number: CHBW-LF

Detail Information

Communication:: RS232/485 Material:: Luminum Alloy
Rated Output:: Accuracy Level Range: 500kg、1T、2T 、3T、5T、10T、15T
Safe Temp. Range: -10ºC To + 70ºC Temp. Compensated: -10ºC To + 40ºC
High Light:

5t shear beam load cell

,

5t strain gauge load cell

,

5t master load cell

Product Description

CHCO-5LFS Constant Pressure Sensor Flanged Spoke Load Cells Sensor (5t)



Product parameters:



500kg,1T,2T ,3T,5T,10T,15T(Customizable range)



Rated Output
2.0mV/V ±10%
Zero Balance
±1% of rated output
Creep after 30 minutes
±0.03% of rated output
Nonlinearity
±0.03% of rated output
Hysteresis
±0.03% of rated output
Repeatability
±0.03% of rated output
Temp. effect on output
≤0.002% of applied output/ºC
Temp. effect on zero
≤0.002% of rated output/ºC
Safe Temp. Range
-10ºC to + 70ºC
Temp. Compensated
-10ºC to + 40ºC
Safe Overload
150%
Input Impedance
775 ohm ± 5ohm
Output Impedance
702 ohm ± 2ohm
Insulation Resistance
≥5000 M ohm (50V DC)
Rated Excitation
10V DC/AC
Maximum Excitation
15V DC/AC
Cable Length
300cm
Cable Color Code
Red(+E) Black(-E) Green(RXD) White(TXD)



Product Size:
