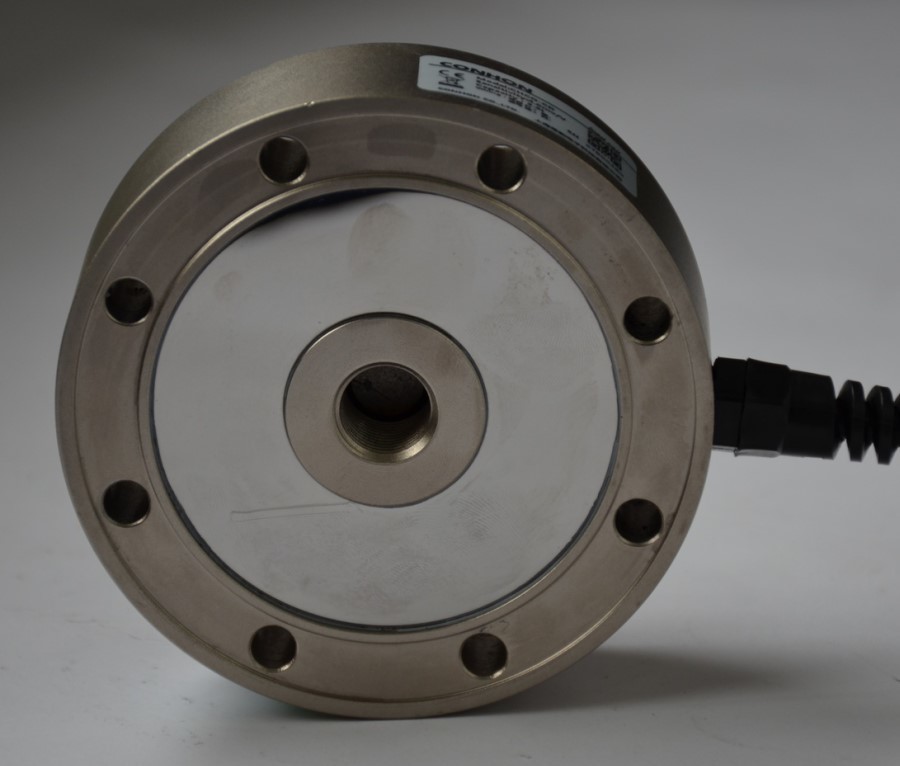

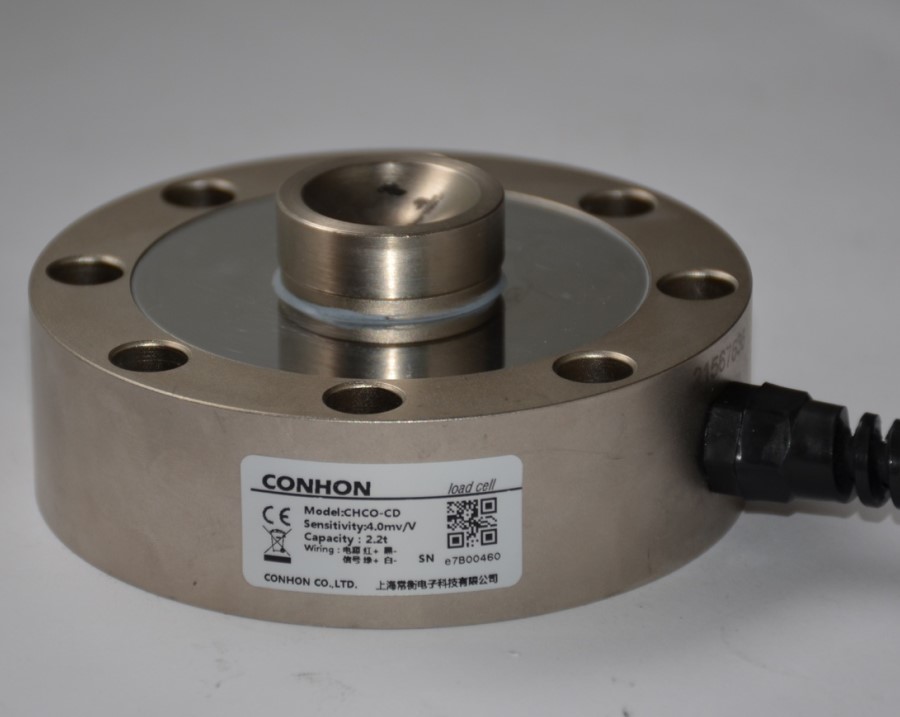

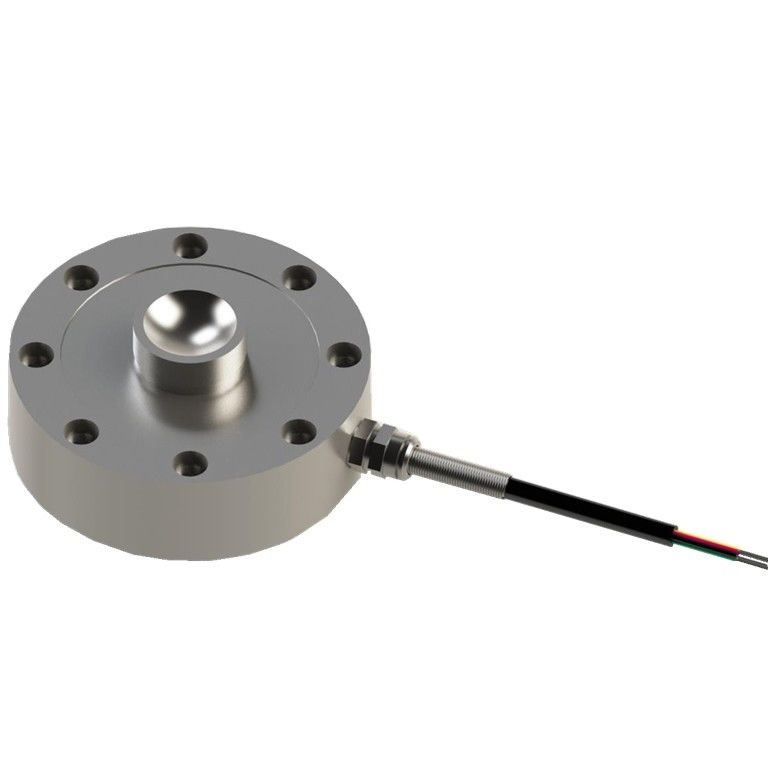

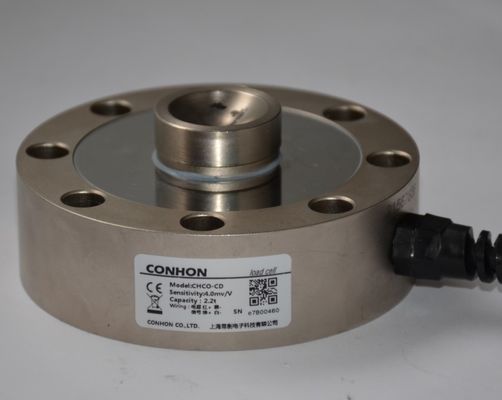

CHBW-5SLF Accuracy Level Spoke LCD 100Klb Conhon Load Cells

Minimum Order Quantity : 100 Price : ¥800-10000/pcs
Payment Terms : T/T Supply Ability : 99999+pc+1m
Place of Origin: CHINA Brand Name: CONHON-CD
Certification: CE Model Number: CHBW-5SLF

Detail Information

Communication:: RS232/485 Material:: Aluminum Alloy
Rated Output:: Accuracy Level Range: 5Klb、10Klb、(25/50/100Klb)
Safe Temp. Range: -10ºC To + 70ºC Temp. Compensated: -10ºC To + 40ºC
High Light:

100Klb mechanical load cell


100Klb load cells for weighing


100Klb weighing load cell

Product Description

CHCO-CD replaces LCD high precision spoke Load Cells sensor (5-100Klb)


Product parameters:


5Klb,10Klb,(25/50/100Klb)(Customizable range)


Rated Output
2.0mV/V ±10%
Zero Balance
±1% of rated output
Creep after 30 minutes
±0.03% of rated output
±0.03% of rated output
±0.03% of rated output
±0.03% of rated output
Temp. effect on output
≤0.002% of applied output/ºC
Temp. effect on zero
≤0.002% of rated output/ºC
Safe Temp. Range
-10ºC to + 70ºC
Temp. Compensated
-10ºC to + 40ºC
Safe Overload
Input Impedance
775 ohm ± 5ohm
Output Impedance
702 ohm ± 2ohm
Insulation Resistance
≥5000 M ohm (50V DC)
Rated Excitation
Maximum Excitation
Cable Length
Cable Color Code
Red(+E) Black(-E) Green(RXD) White(TXD)


Product Size:


CHBW-5SLF Accuracy Level Spoke LCD 100Klb Conhon Load Cells 0
