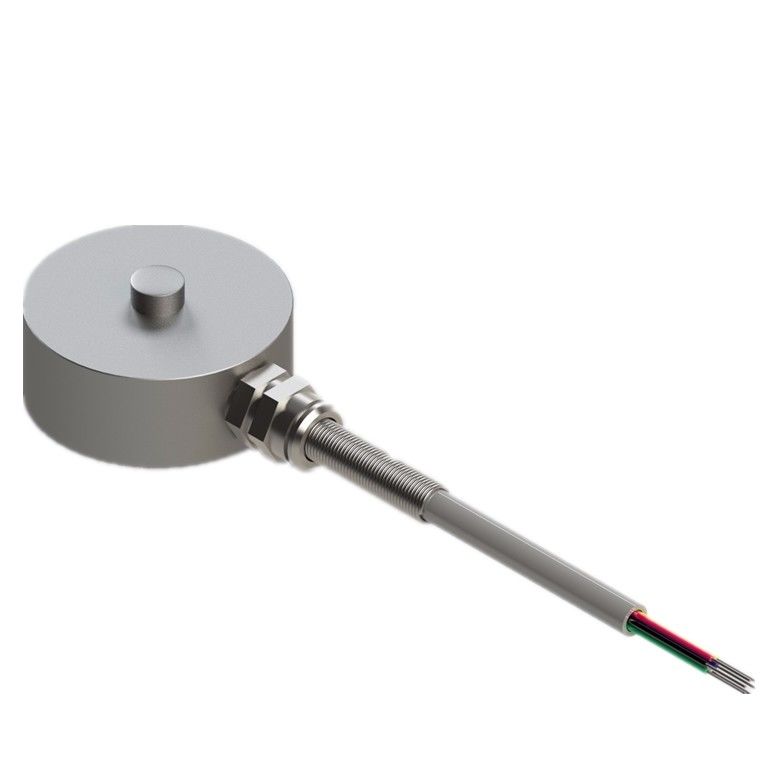

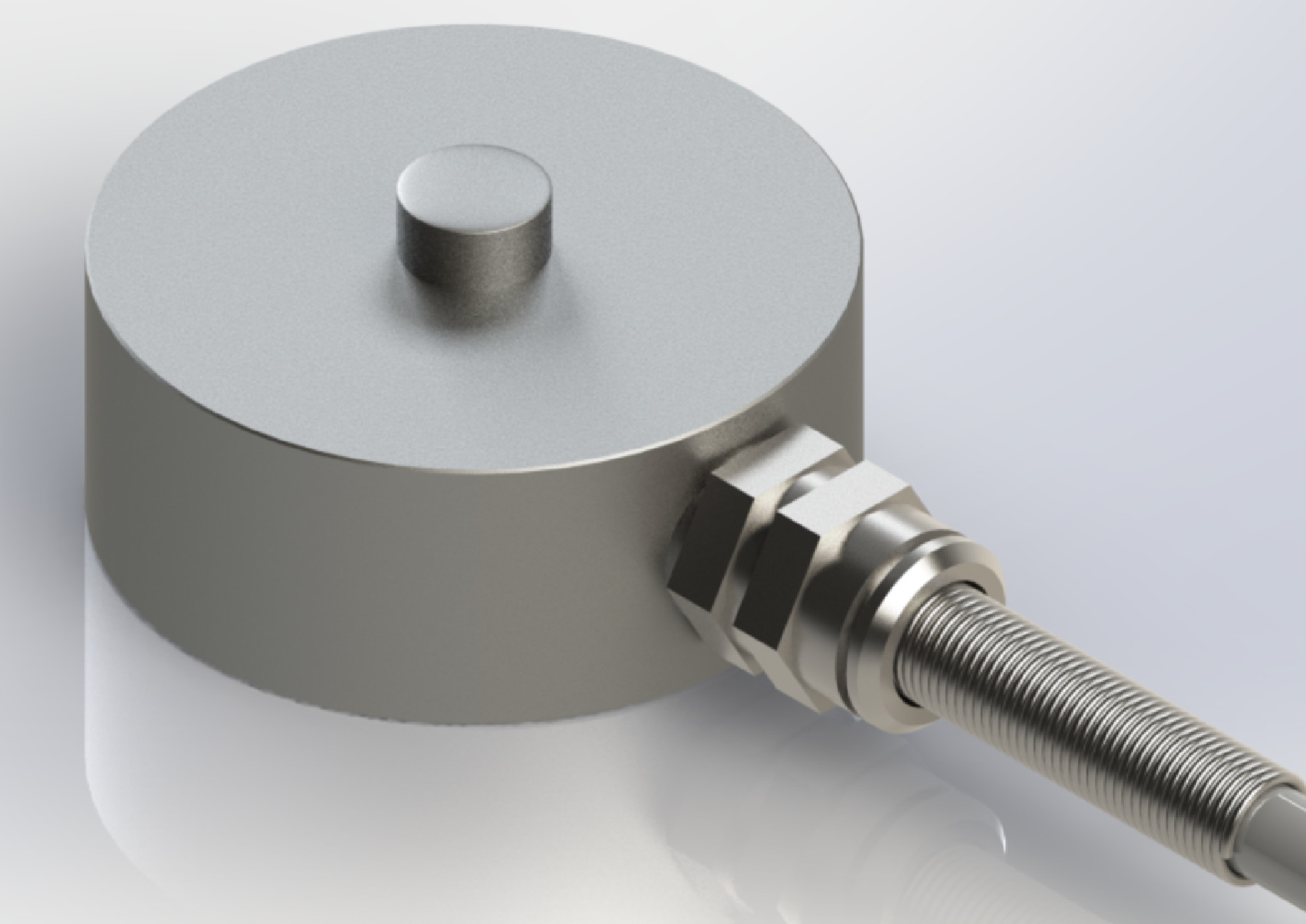

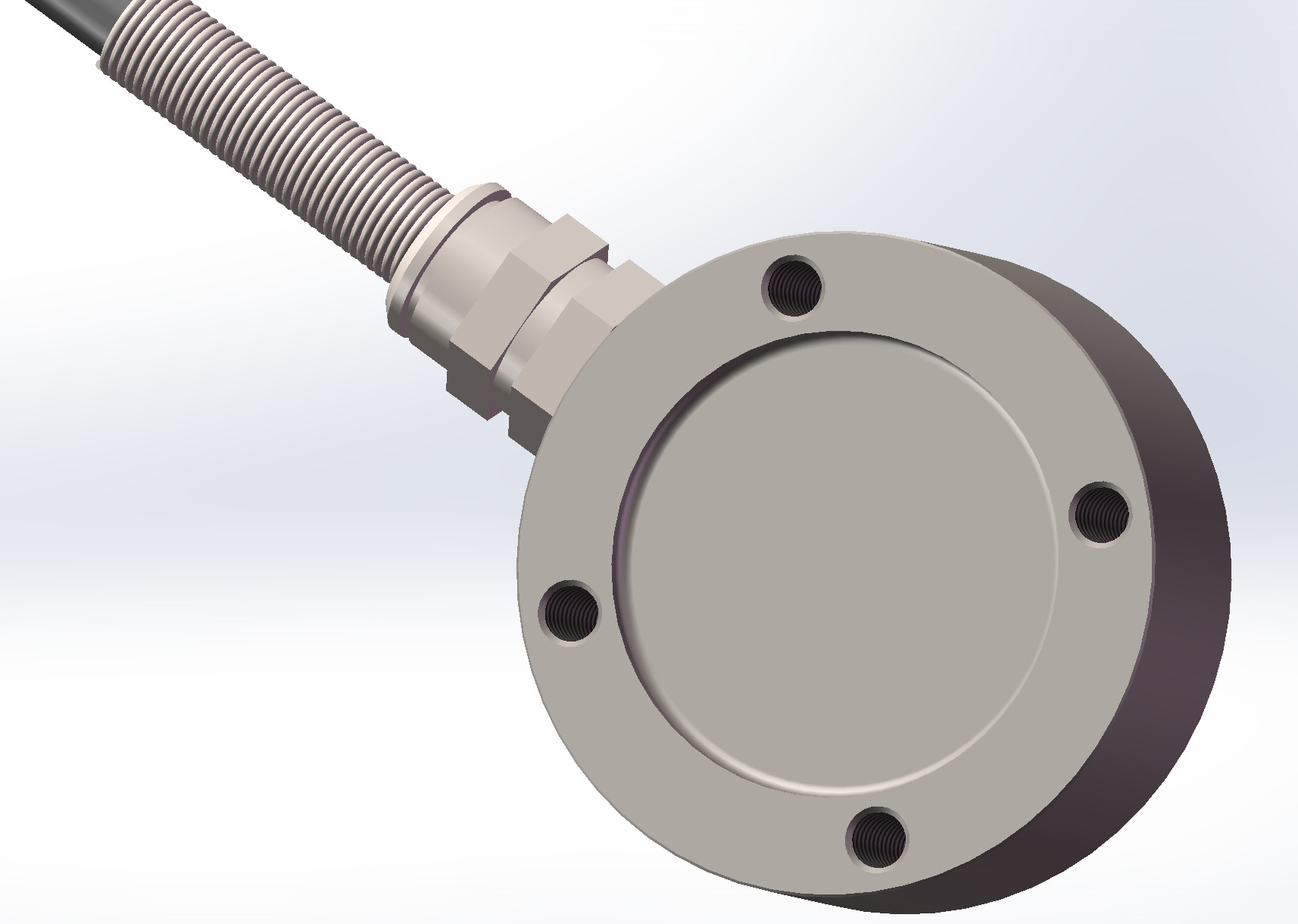

CHCO-3 Touch Box 20kg 350ohm Conhon Load Cells

Minimum Order Quantity : 100 Price : ¥800-10000/pcs
Payment Terms : T/T Supply Ability : 99999+pc+1m
Place of Origin: CHINA Brand Name: CONHON
Certification: CE Model Number: CHCO-3

Detail Information

Communication:: RS232/485 Material:: Aluminum Alloy
Rated Output:: Accuracy Level Range: 20kg-30t
Safe Temp. Range: -10oC To + 70oC Temp. Compensated: -10oC To + 40oC
High Light:

350 ohm strain gauge load cell


350 ohm zemic digital load cell


20kg through hole load cell

Product Description

CHCO-3 Touch Box High Precision Load Cells (20kg-30t)


Product parameters:


20kg-30t(Customizable range)

Model 型号 CHCO-3
Capacity 量程 20kg-30T(可定制其他量程)
Accuracy Class 精度等级 C3
Rated Output 额定输出 2.0mV/V ±0.25%
Zero Balance 零点平衡 ±1% of rated output
Creep after 30 minutes 30分钟蠕变 ±0.03% of rated output
Nonlinearity 非线性 ±0.03% of rated output
Hysteresis 滞后 ±0.03% of rated output
Repeatability 重复性 ±0.03% of rated output
Temp. effect on output 灵敏度温漂 ≤0.002% of applied output/oC
Temp. effect on zero 零点温漂 ≤0.002% of rated output/oC
Safe Temp. Range 可用温度范围 -10oC to + 70oC
Temp. Compensated 温度补偿范围 -10oC to + 40oC
Safe Overload 安全载荷 150%
Input Impedance 输入阻抗 387 ohm ± 20 ohm
Output Impedance 输出阻抗 350 ohm ± 5 ohm
Insulation Resistance 绝缘阻抗 ≥5000 M ohm (50V DC)
Rated Excitation 推荐激励电压 10V DC/AC
Maximum Excitation 最大激励电压 15V DC/AC
Cable Length 导线长度 300cm
Cable Color Code 导线颜色 Red(+E) Black(-E) Green(+S) White(-S)

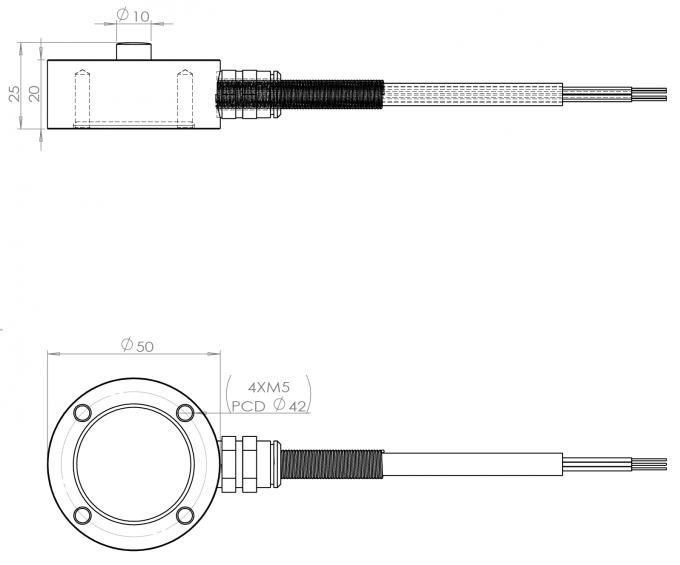

Product Size:QQ截图20180201164536.png
