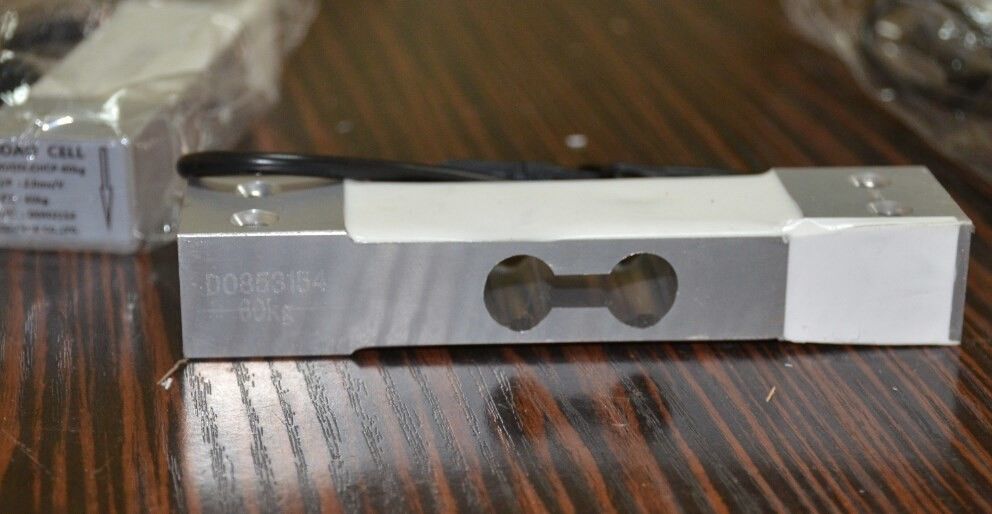

CHCP-1 Single Point Aluminum Alloy 10V Conhon Load Cells

Minimum Order Quantity :	100	Price :	￥800-10000/pcs
Payment Terms :	T/T	Supply Ability :	99999+pc+1m

Place of Origin:	CHINA	Brand Name:	CONHON
Certification:	CE	Model Number:	CHCP-1

Detail Information
Communication::	RS232/485	Material::	Aluminum Alloy
Rated Output::	Accuracy Level	Range:	3kg, 6kg, 10kg, 12kg, 15kg, 20kg, 25kg, 30kg, 35kg, 40kg, 45kg, 60kg, 120kg, 150kg, 200kg
Safe Temp. Range:	-10ºC To + 70ºC	Temp. Compensated:	-10ºC To + 40ºC
High Light:	10V rs232 load cell , 10V electronic load cell , 10V single point load cell

Product Description

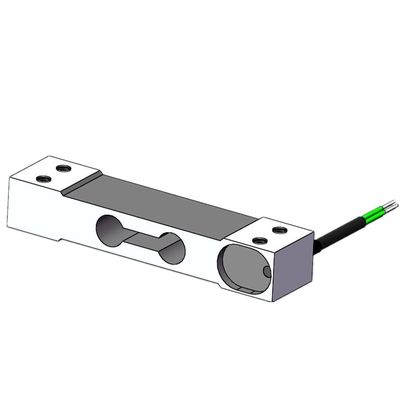

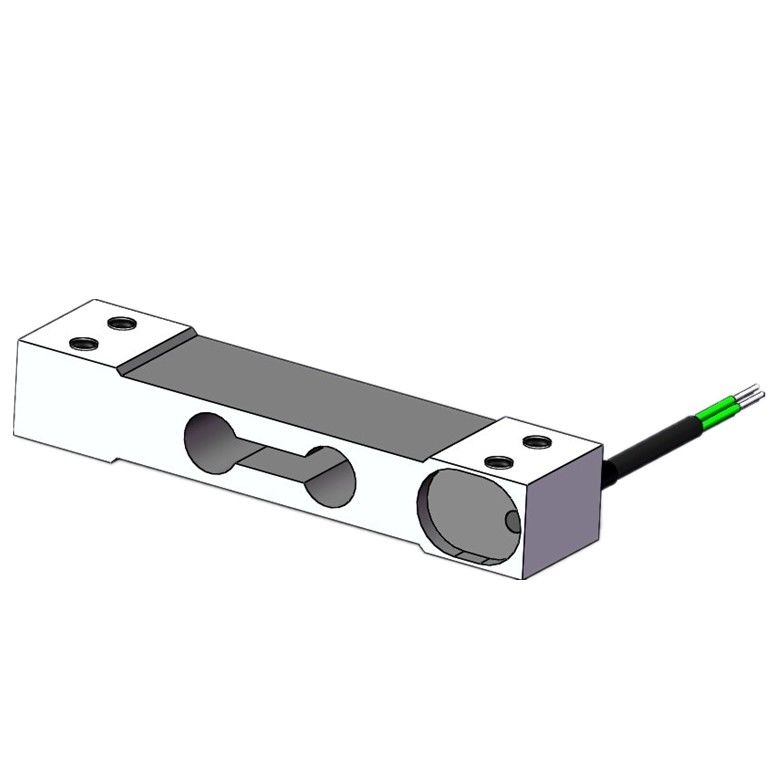

HCP-1 High Precision Single Point Aluminum Alloy Load Cells Sensor

Product parameters:

Single point type; high-quality aluminum alloy material; high accuracy; high stability; easy and fast installation; suitable for postage scales, packaging scales, small hopper scales, bench scales, etc .;
Product brand: CONHONCHCP-1 load cell, single point sensor
Product model: CHCP-1 load cell,CONHON CHCP-1 load cell
Product Price: Online Inquiry
CONHON CHCP-1 main features
● Single point
● High-quality aluminum alloy
● High precision
● High stability
● Easy and fast installation
● Suitable for post
Asset scale, packaging scale, small hopper scale, bench scale, etc.

3kg, 6kg, 10kg, 12kg, 15kg, 20kg, 25kg, 30kg, 35kg, 40kg, 45kg, 60kg, 120kg, 150kg, 200kg (Customizable range)

Rated Output	额定输出	2.0mV/V ±10%
Zero Balance	零点平衡	±3% of rated output
Creep after 30 minutes	蠕变	±0.03% of rated output
Nonlinearity	非线性	±0.03% of rated output
Hysteresis	滞后	±0.03% of rated output
Repeatability	重复性	±0.03% of rated output
Temp. effect on output	灵敏度温漂	≤0.002% of applied output/ºC
Temp. effect on zero	零点温漂	≤0.002% of rated output/ºC
Safe Temp. Range	可用温度范围	-10ºC to + 70ºC
Temp. Compensated	温度补偿范围	-10ºC to + 40ºC
Safe Overload	安全载荷	150%
Input Impedance	输入阻抗	410 ohm ± 20 ohm
Output Impedance	输出阻抗	350 ohm ± 5 ohm
Insulation Resistance	绝缘阻抗	≥5000 M ohm (50V DC)
Rated Excitation	推荐激励电压	10V DC/AC
Maximum Excitation	最大激励电压	15V DC/AC
Cable Length	导线长度	13cm/35cm/275cm
Cable Color Code	导线颜色	Red(+E) Black(-E) Green(+S) White(-S)

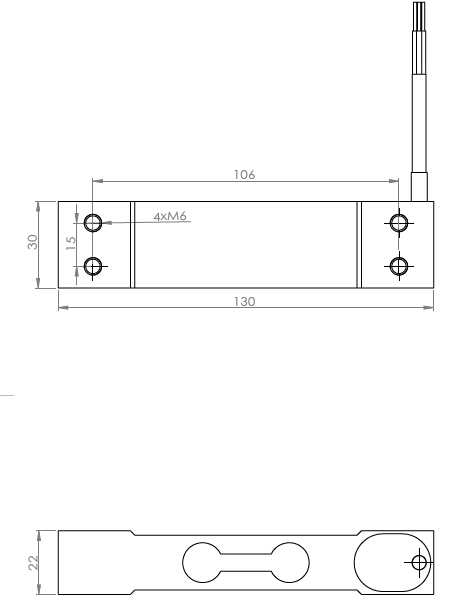

Product Size:
