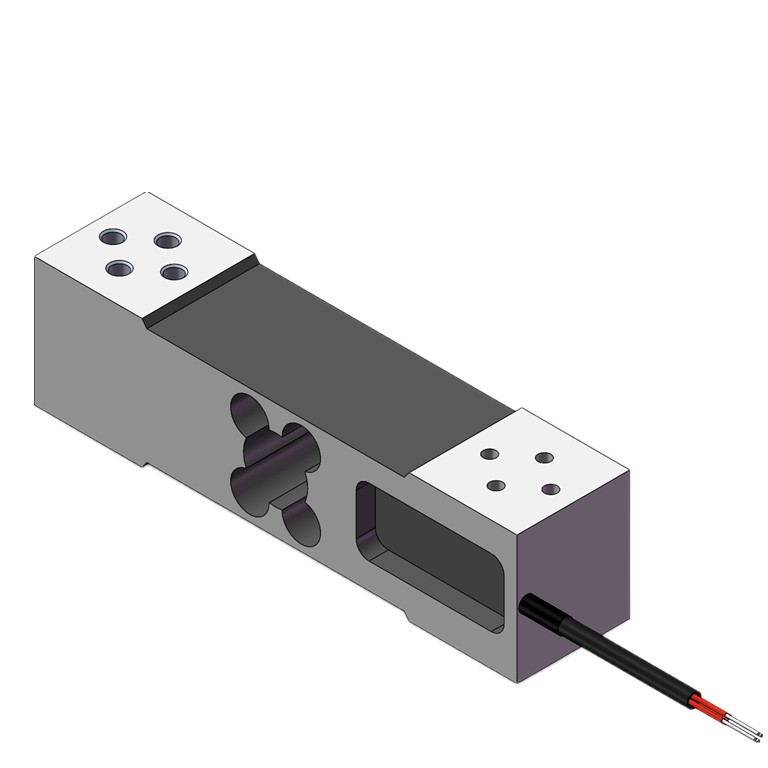

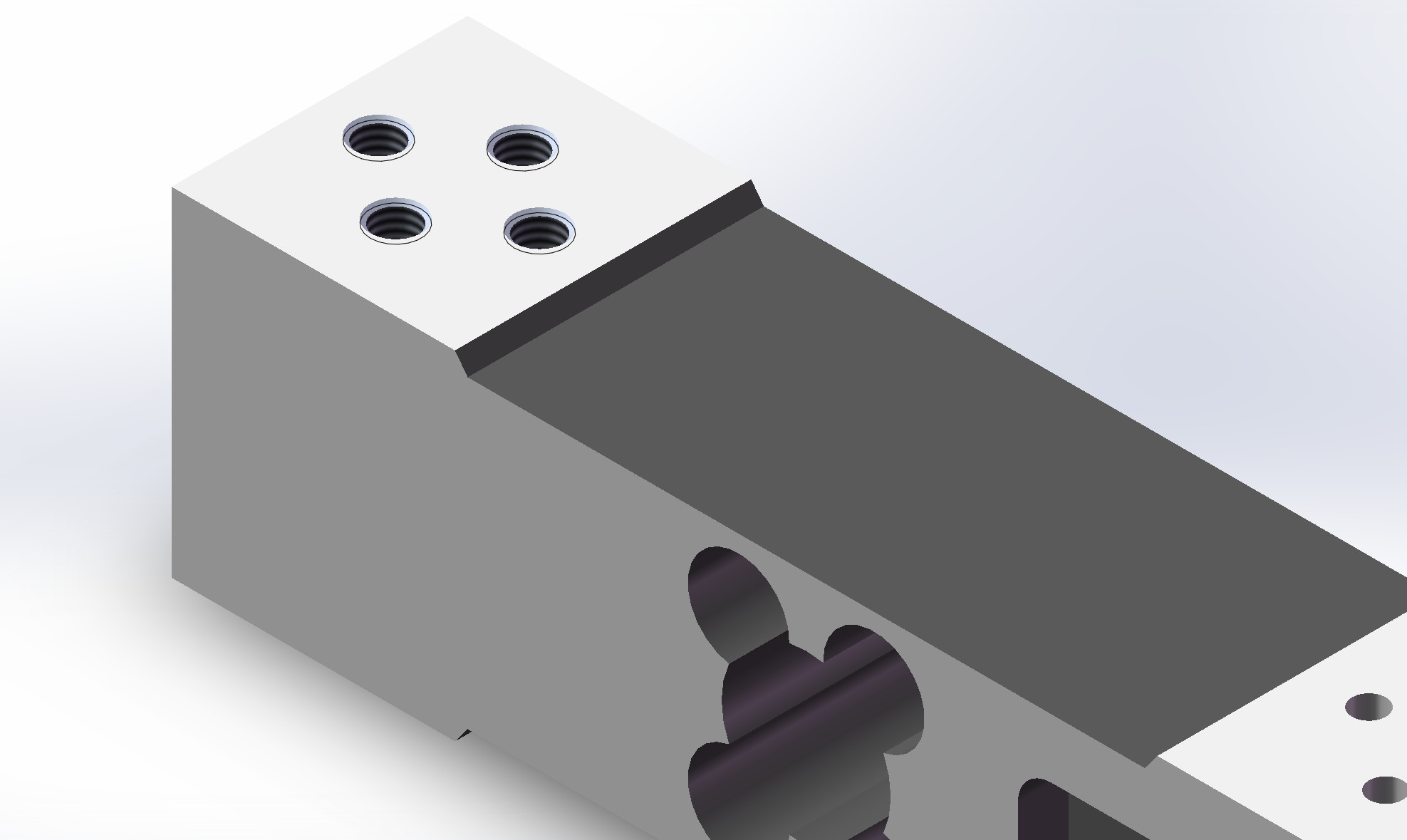

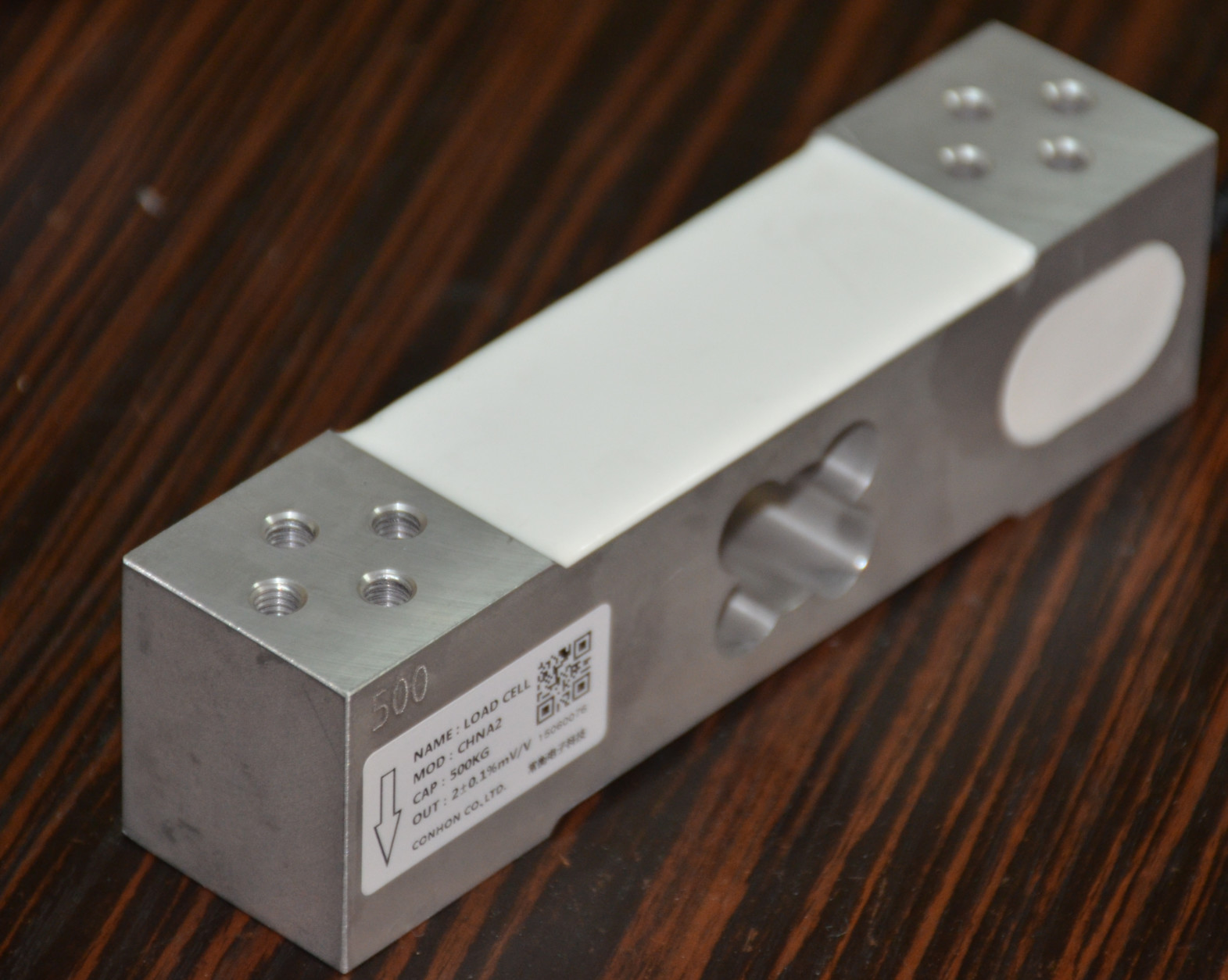

CHCP-2 Single Point Aluminum Alloy 12kg Load Cell Sensor

Minimum Order Quantity :	100	Price :	￥800-10000/pcs
Payment Terms :	T/T	Supply Ability :	99999+pc+1m

Place of Origin:	CHINA	Brand Name:	CONHON
Certification:	CE	Model Number:	CHCP-2

Detail Information
Communication::	RS232/485	Material::	Aluminum Alloy
Rated Output::	Accuracy Level	Range:	3kg, 6kg, 10kg, 12kg, 15kg, 20kg, 25kg, 30kg, 35kg, 40kg, 45kg, 60kg, 120kg, 150kg, 200kg
Safe Temp. Range:	-10ºC To + 70ºC	Temp. Compensated:	-10ºC To + 40ºC
High Light:	CONHON shear beam load cell , 12kg mechanical load cell , RS485 single point load cell

Product Description

CHCP-2 High Precision Single Point Aluminum Alloy Load Cells Sensor

Product parameters:

Single point type; high-quality aluminum alloy material; high accuracy; high stability; easy and fast installation; suitable for postage scales, packaging scales, small hopper scales, bench scales, etc .;
Product brand: CONHON CHCP-2 load cell, single point sensor
Product model: CHCP-2 load cell,CONHON CHCP-2 load cell
Product Price: Online Inquiry
CONHON CHCP-2 main features
● Single point
● High-quality aluminum alloy
● High precision
● High stability
● Easy and fast installation
● Suitable for post
Asset scale, packaging scale, small hopper scale, bench scale, etc.

60,100,150, 200,250,300,500(kg) (Customizable range)

Rated Output	额定输出	2.0mV/V ±10%
Zero Balance	零点平衡	±3% of rated output
Creep after 30 minutes	蠕变	±0.03% of rated output
Nonlinearity	非线性	±0.03% of rated output
Hysteresis	滞后	±0.03% of rated output
Repeatability	重复性	±0.03% of rated output
Temp. effect on output	灵敏度温漂	≤0.002% of applied output/ºC
Temp. effect on zero	零点温漂	≤0.002% of rated output/ºC
Safe Temp. Range	可用温度范围	-10ºC to + 70ºC
Temp. Compensated	温度补偿范围	-10ºC to + 40ºC
Safe Overload	安全载荷	150%
Input Impedance	输入阻抗	410 ohm ± 20 ohm
Output Impedance	输出阻抗	350 ohm ± 5 ohm
Insulation Resistance	绝缘阻抗	≥5000 M ohm (50V DC)
Rated Excitation	推荐激励电压	10V DC/AC
Maximum Excitation	最大激励电压	15V DC/AC
Cable Length	导线长度	13cm/35cm/275cm
Cable Color Code	导线颜色	Red(+E) Black(-E) Green(+S) White(-S)

Product Size: QQæˆªå›¾20180131104345.png
