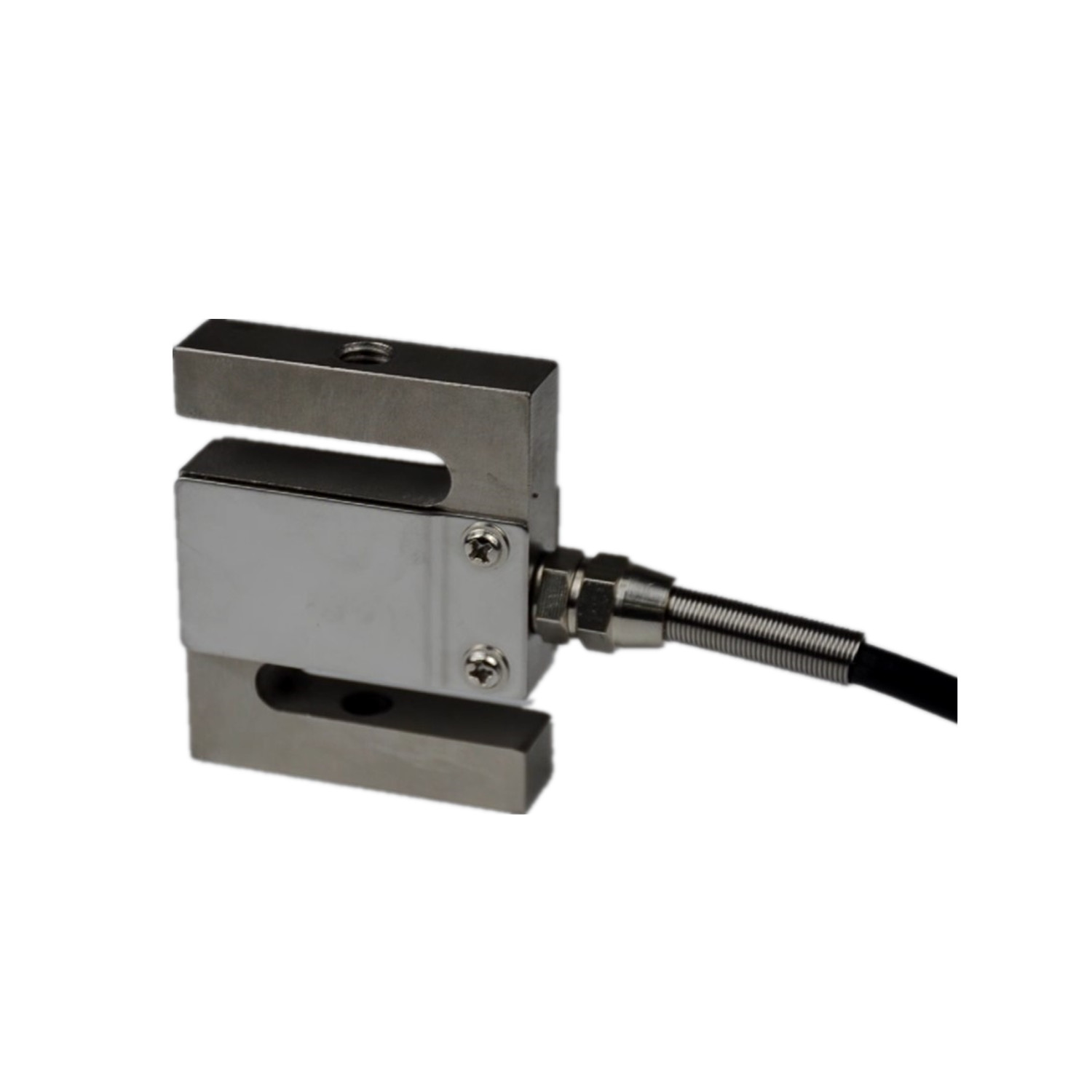

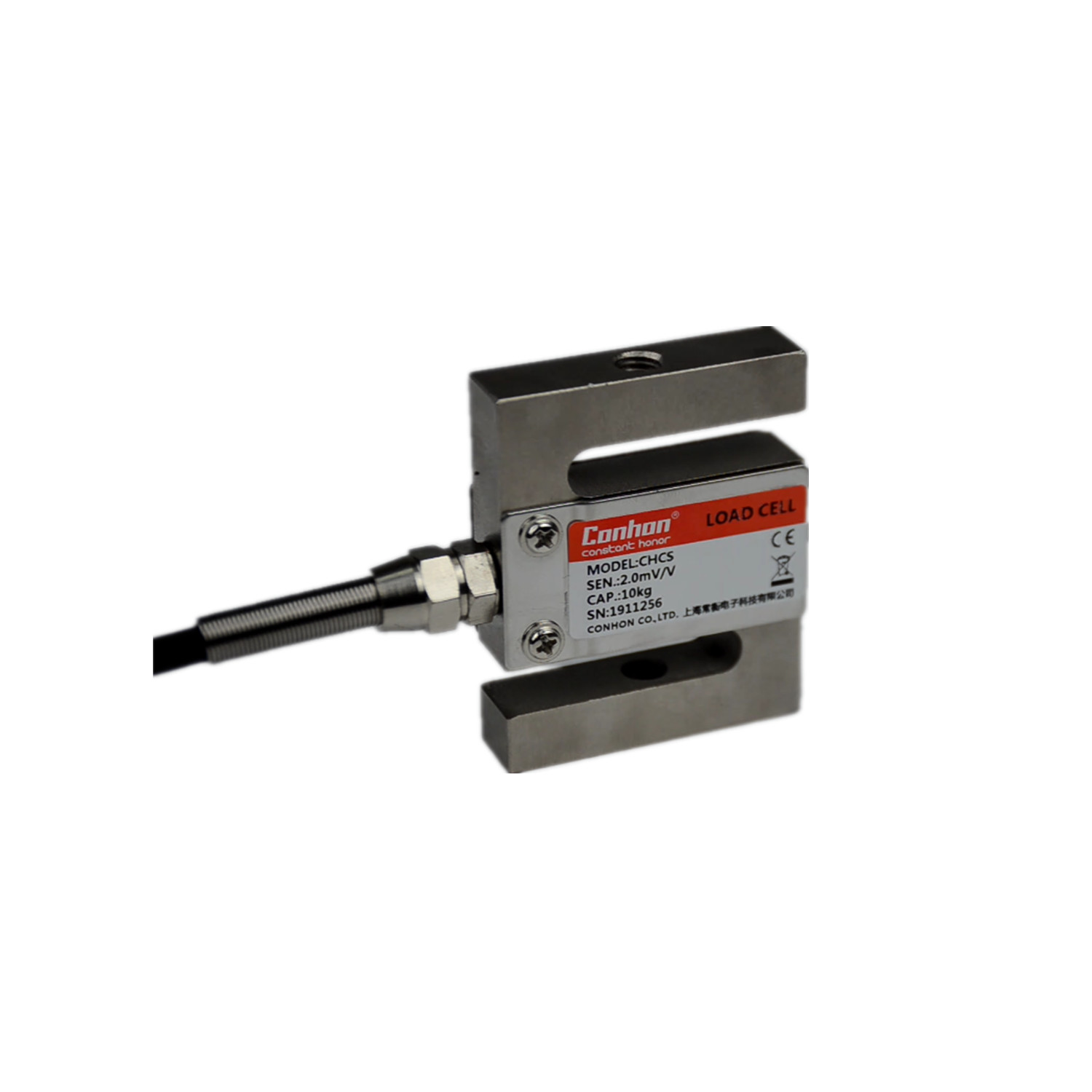

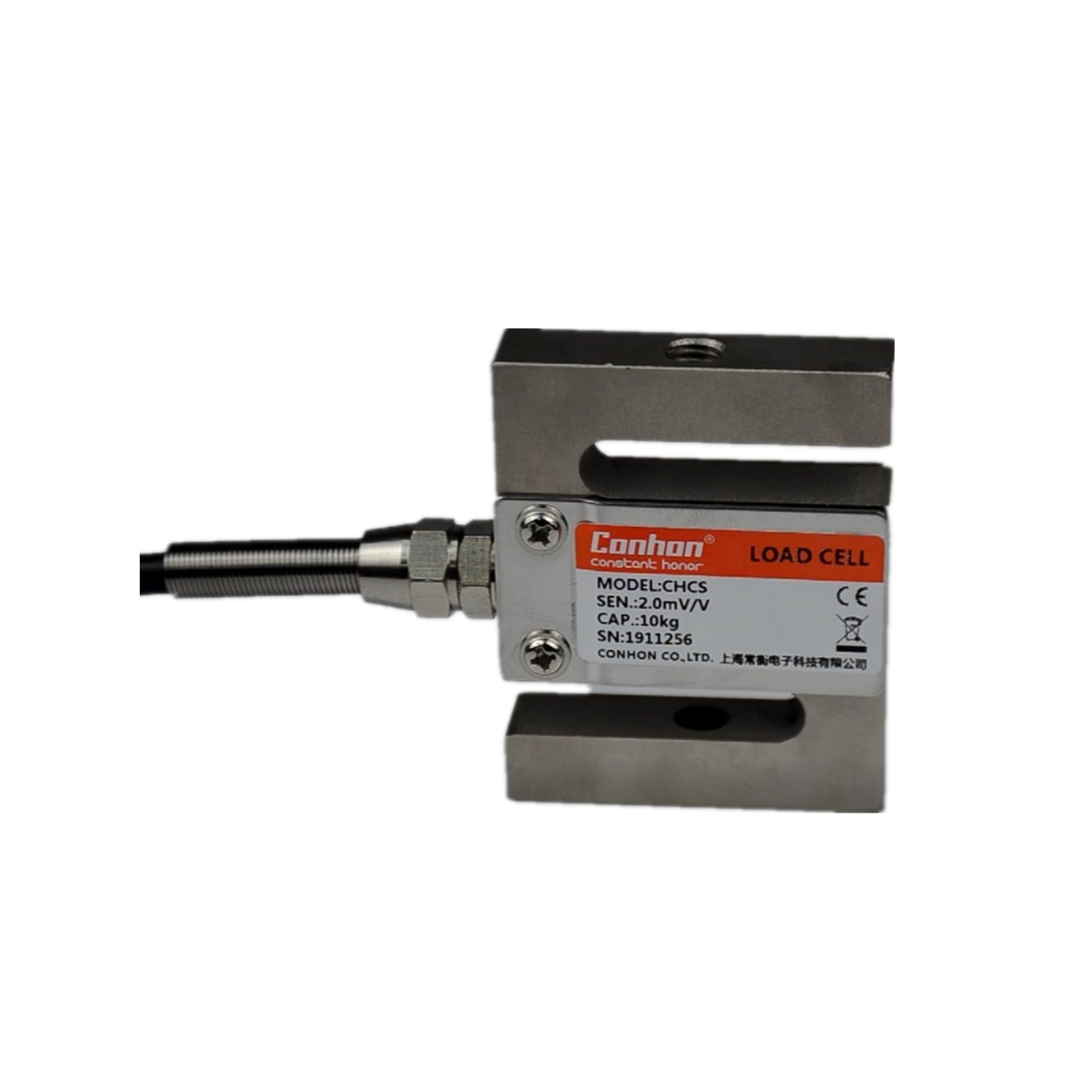

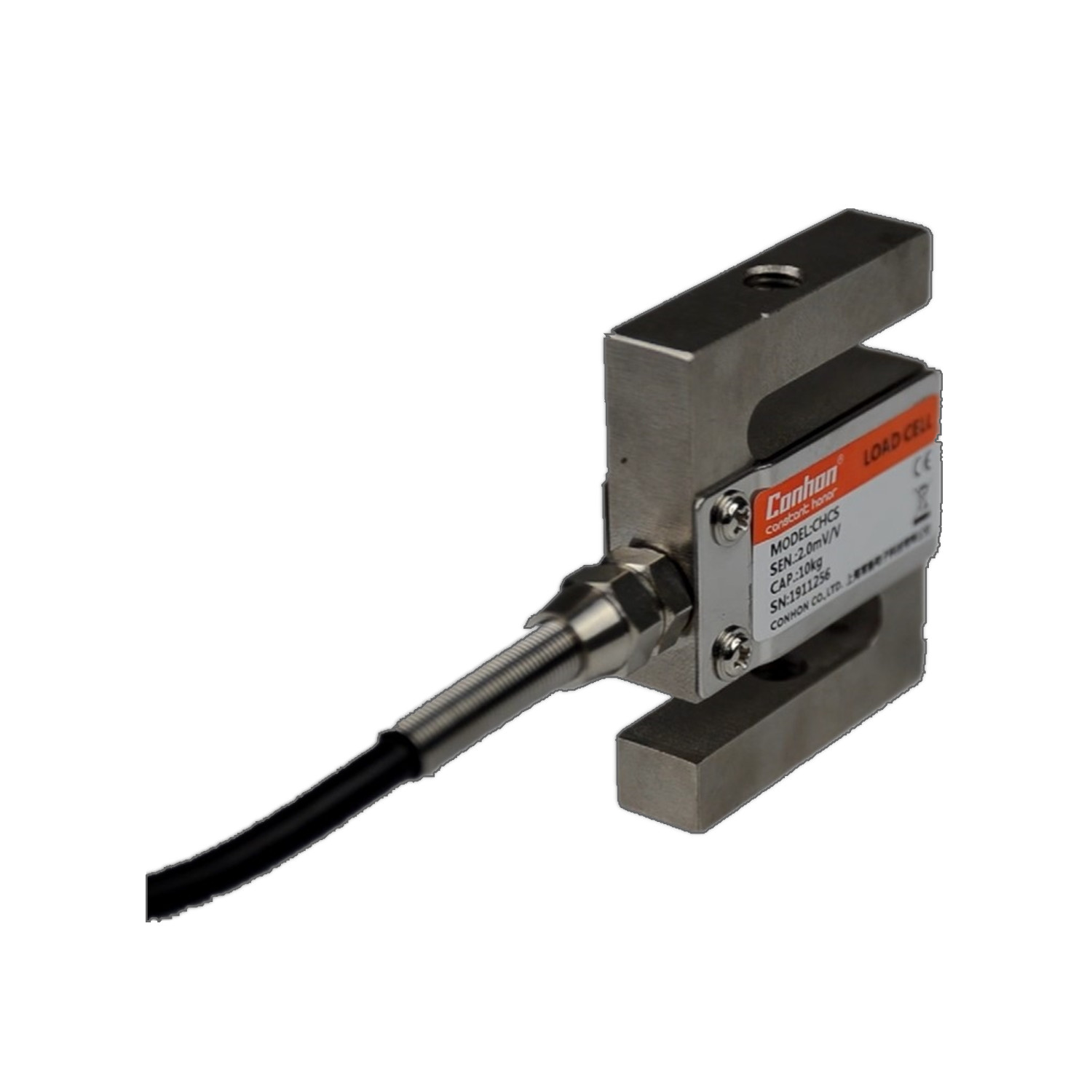

CHCS Batch Scale Tensile Tester S Conhon Load Cells

Minimum Order Quantity : 100 Price : ¥800-10000/pcs
Payment Terms : T/T Supply Ability : 99999+pc+1m
Place of Origin: CHINA Brand Name: CONHON
Certification: CE Model Number: CHCS

Detail Information

Range:: 5,10,20,30,100,200,500(kg)1, 1.5, 2, 3, 5(t) Communication:: RS232/485
Material:: Luminum Alloy Rated Output:: Accuracy Level
Safe Temp. Range: -10ºC To + 70ºC Temp. Compensated: -10ºC To + 40ºC
High Light:

CE s type load cell


electromechanical s type load cell


2t s type load cell

Product Description

CHCS advanced tensile / pressure S-type sensor batch scale tensile tester Conhon Load Cells




S-type sensor; high-quality alloy steel material; easy, fast, stable and reliable installation; suitable for material testing machines, batching scales, mechanical and electrical scales and packaging scales
Product brand: CONHON Electronic CHCS load cell, S-type sensor
Product model: CHCS load cell, Changheng CONHON CHCS load cell
Product Price: Online Inquiry
CONHON Electronics CHCS Main Features
● S-type sensor
● CE certified products
● High-quality alloy steel material Optional stainless steel material
● Easy and fast installation, stable and reliable
● Suitable for material testing machines, batching scales, electromechanical combined scales and packaging scales, etc.


Product parameters:

5,10,20,30,100,200,500(kg)1, 1.5, 2, 3, 5(t)


Rated Output
2.0mV/V ±10%
Zero Balance
±3% of rated output
Creep after 30 minutes
±0.03% of rated output
±0.03% of rated output
±0.03% of rated output
±0.03% of rated output
Temp. effect on output
≤0.002% of applied output/ºC
Temp. effect on zero
≤0.002% of rated output/ºC
Safe Temp. Range
-10ºC to + 70ºC
Temp. Compensated
-10ºC to + 40ºC
Safe Overload
Input Impedance
410 ohm ± 20 ohm
Output Impedance
350 ohm ± 5 ohm
Insulation Resistance
≥5000 M ohm (50V DC)
Rated Excitation
Maximum Excitation
Cable Length
Cable Color Code
Red(+E) Black(-E) Green(RXD) White(TXD)


Product Size:


CHCS Batch Scale Tensile Tester S Conhon Load Cells 0
