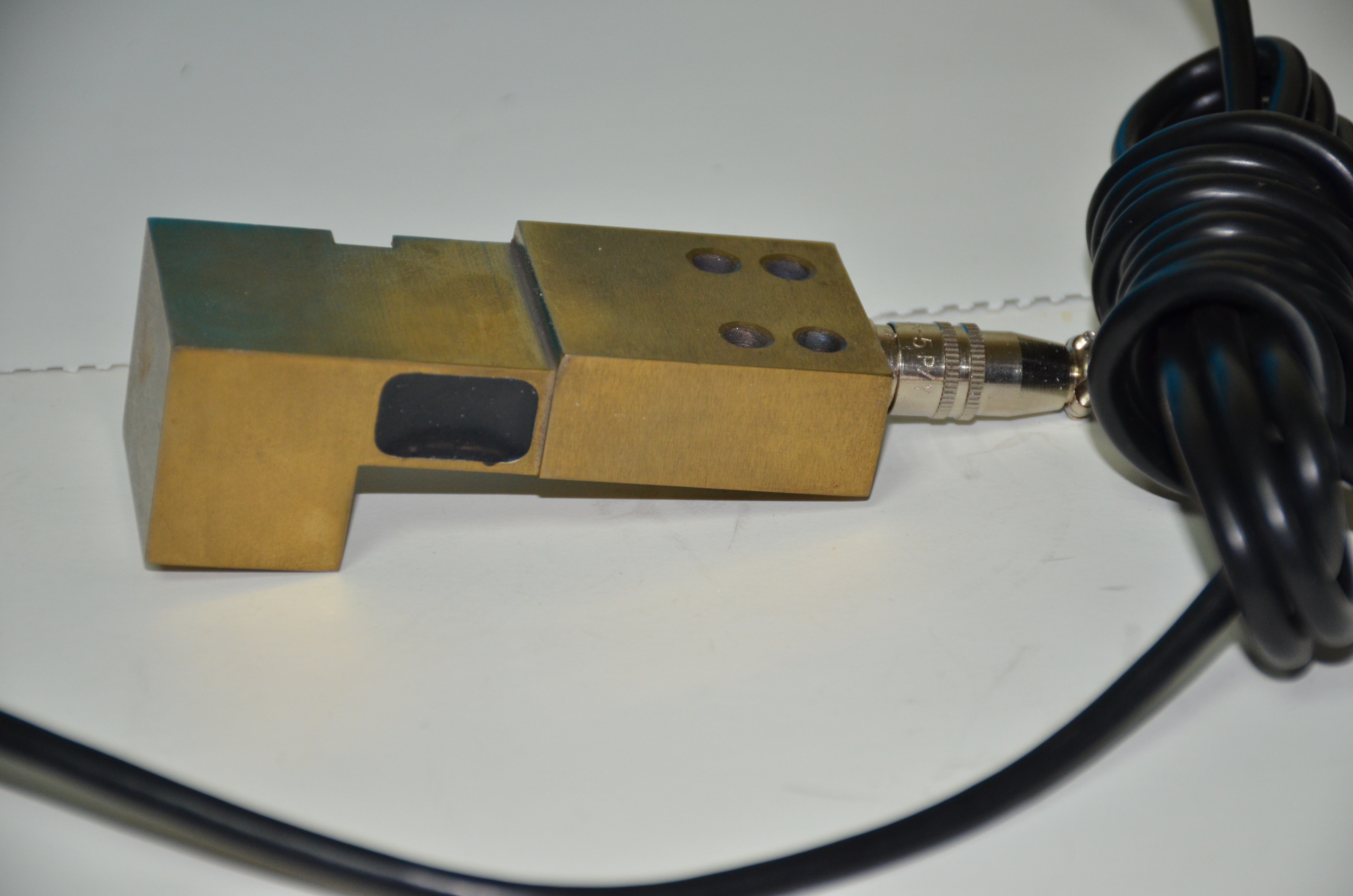

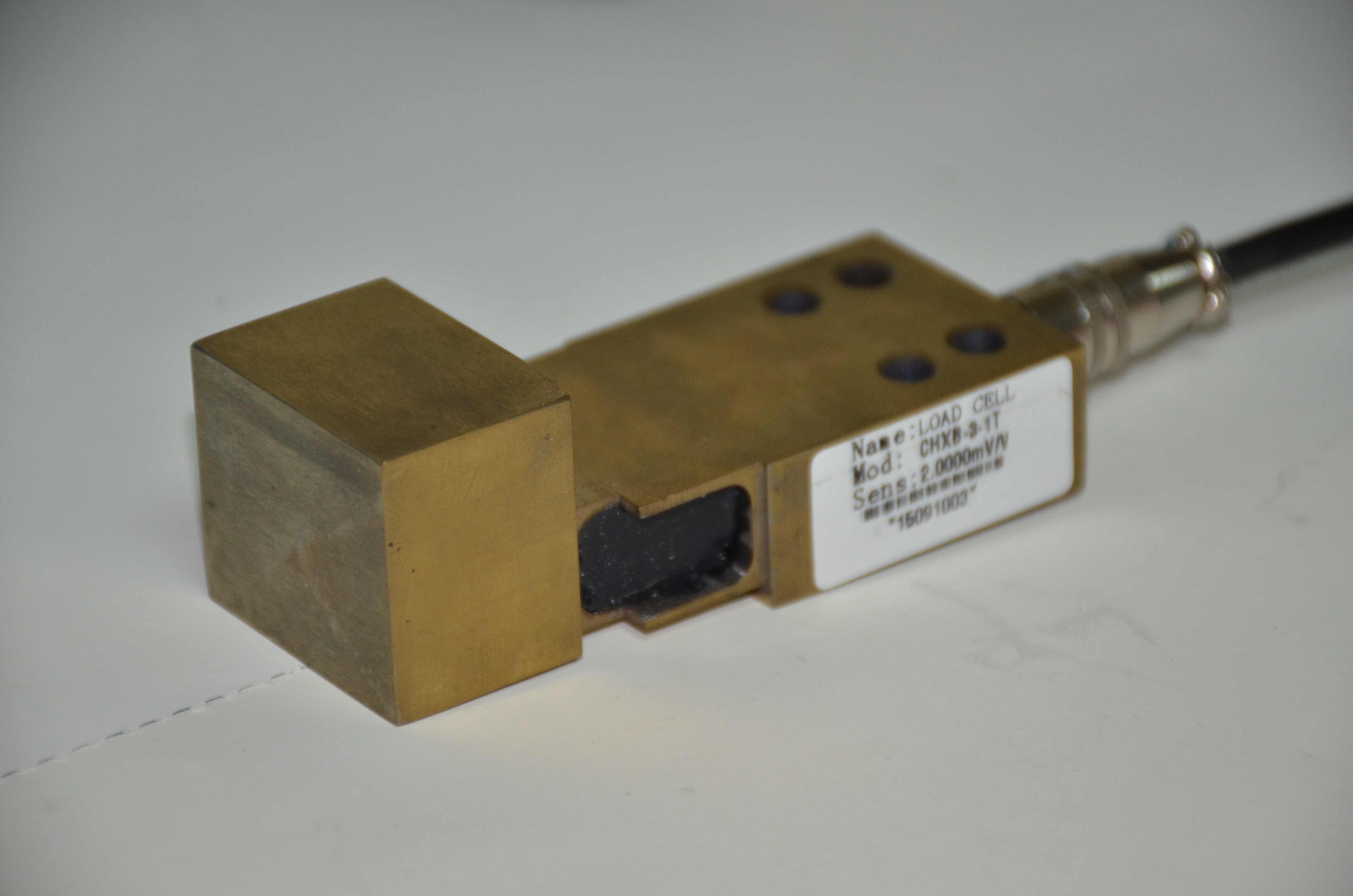

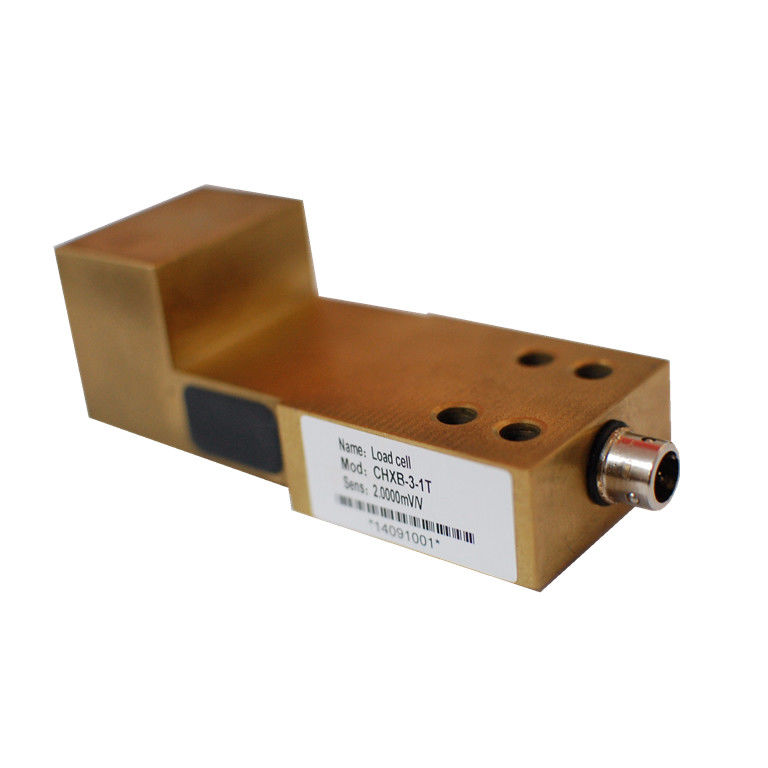

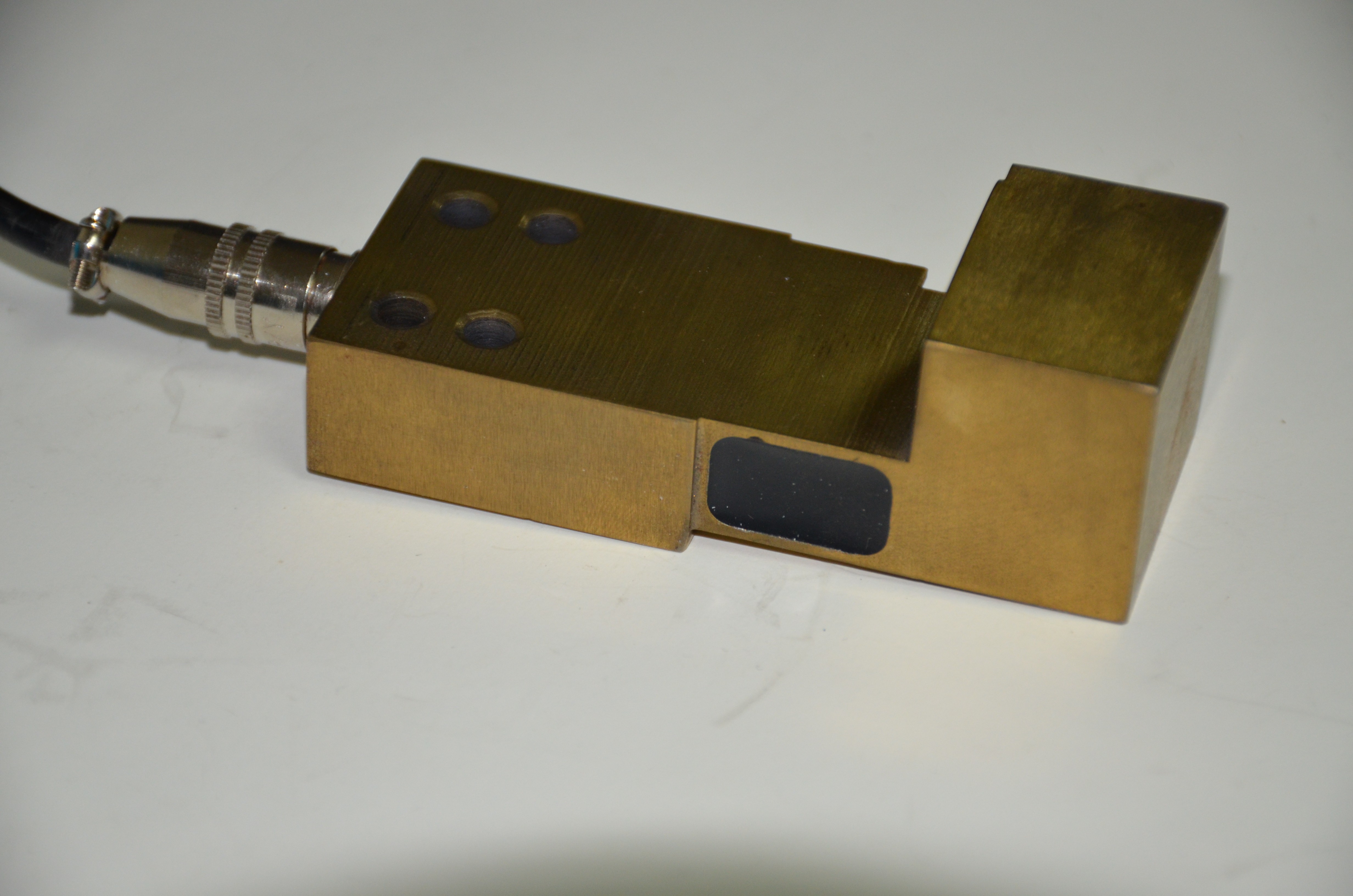

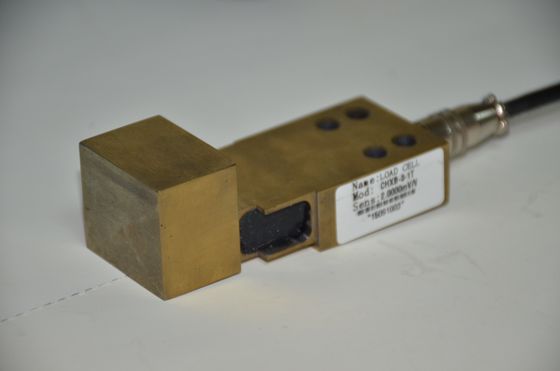

CHXB-3 High Precision Single Shear Beam Load Cells Sensor

Minimum Order Quantity : 100 Price : ¥800-10000/pcs
Payment Terms : T/T Supply Ability : 99999+pc+1m
Place of Origin: CHINA Brand Name: CONHON
Certification: CE Model Number: CHXB-3

Detail Information

Communication:: RS232/485 Material:: Luminum Alloy
Rated Output:: Accuracy Level Range: 30kg-1t
Safe Temp. Range: -10oC To + 70oC Temp. Compensated: -10oC To + 40oC

Product Description

CHXB-3 High Precision Single Shear Beam Load Cells Sensor


Product parameters:


Shanghai CONHON Electronic CHXB-3 Sensor Oil-proof, Water-proof, Corrosion-resistant Applicable Pressure tester Filling machine Packaging machine and other weighing equipment sensors
◆ CHXB-3 sensor adopts accurate measurement within the range of 30kg-1t.
◆ Alloy steel material is added with anti-rust plating layer, and the interior is sealed with glue to prevent oil, water and corrosion.
Applicable to various environments.
◆ Single-shear beam structure design, small and beautiful, convenient and flexible installation and use.
◆ It is suitable for weighing equipment such as pressure testing machine, filling machine and packaging machine.


30kg-1t (Customizable range)


Rated Capaciy 0.03-1 t
Rated Output 2.0±0.002 MV/V
Non-linearity <±0.05 %F.S
Hysteresis <±0.03 %F.S
Repeatability <±0.03 %F.S
Creep <±0.03 %F.S/300min
Temp.effect on zero <±0.02 %F.S 10
Temp.effect on span <±0.02 %F.S 10
Zero balance <±1 %F.S
Input impedance 380±15 Ω
Output impedance 350±3 Ω
Insulation resistance 5000 MΩ
Allow execitation voltage 518 V/DC
Compensated temp.range -10℃~+70
Operating temp.range -20℃~+80
Safe overload 150 %F.S
Ultimate overload 200 %F.S
Connection Execitation : +red -Black
Signal : +Green -White

Product Size:


CHXB-3 High Precision Single Shear Beam Load Cells Sensor 0
