Column Bench Weighing Scale

Minimum Order Quantity :	1	Delivery Time :	5-8week
Payment Terms :	T/T	Supply Ability :	99+pc+1m

Place of Origin:	CHINA	Brand Name:	Diniargeo
Certification:	CE	Model Number:	AFWC

Detail Information

Range:

30kg 60kg 150kg 300kg

Highlight:

column commercial bench scales

60kg compact bench scale

60kg commercial bench scales

Product Description

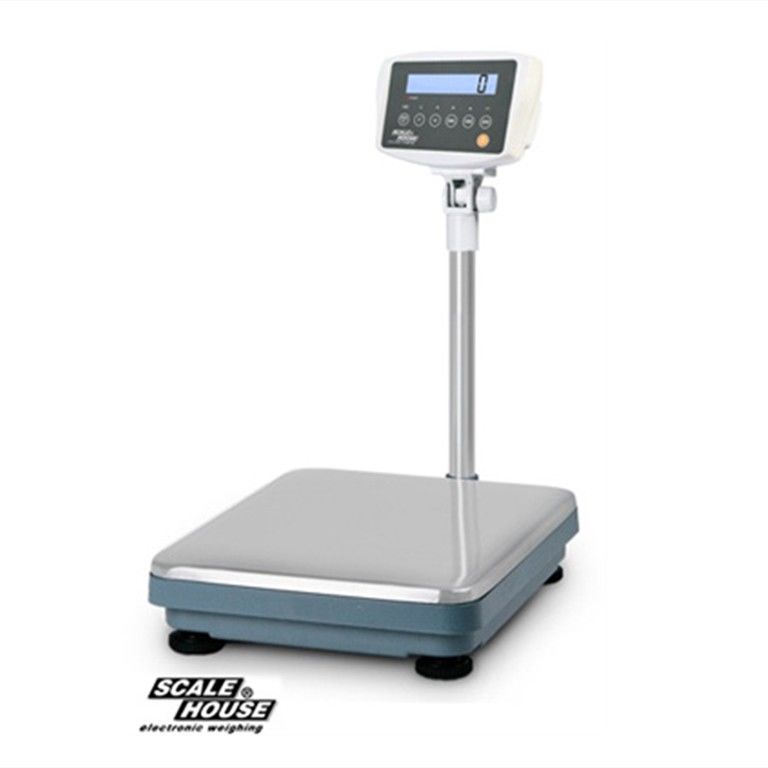

AFWC AND AFWD SERIES "BENCH/FLOOR" MULTIFUNCTION SCALE Explosion Proof Scale

Versatile bench or floor scale with attached column, for control and production. Pieces counting, weight control, and totalisation function. Available also CE-M APPROVED for legal for trade use.

TECHNICAL FEATURES

Backlit LCD display with 6 digits 24mm high, easily visible from all angles with adjustable inclination.
Membrane waterproof keypad with 7 keys anc acoustic feedback.
ABS case and indicator support column.
Stainless steel plate, size:
- C model 350x450mm;
- D model 420x520mm.
Built-in rechargeable battery (about 70h battery life) and 230Vac power adapter.
Overall height from ground with indicator and column:
- C model 860mm;
- D model 920mm.
Packaging:
- C model: 780 x 500 x 220 mm size - approximate weight of 15,5kg;
- D model: 970 x 600 x 230 mm size - approximate weight of 17kg.
Upon request:
- ACCREDIA calibration with issuing of relative certificate;
- 3000e CE-M approval.

FUNCTIONS

counting;
weight check, with 2 thresholds and acoustic alarm;
weight totalisation, in loading or in unloading;
unit conversion: kg, g, lb, oz;
weighing filter selection;
setting range of auto-zero at the switch-on;
zeroing;
zero tracking;
semi-automatic tare;
digital calibration;
backlight command;
low battery warning.

COUNTING FEATURES

Internal sensitivity, minimum recommended APW, and minimum sampling weight:

Model	AFWC30	AFWC60 AFWD60	AFWC150 AFWD150	AFWD300
Internal sensitivity g	0,1	0,2	0,5	1
Min. recommended APW g	0,5	1	2	5
Min. sampling weight g	200	400	1000	2000

Platform Scale Load Cell Available versions

Code	Max (kg)	d (g)	(g)*
AFWC30	30	10	10
AFWC60	60	20	20
AFWC150	150	50	50
AFWD60	60	20	20
AFWD150	150	50	50
AFWD300	300	100	100

(*) CE-M divisions are obtainable only with the relative options.
