Compression IP68 Digital Load Cell Weight Sensor

Minimum Order Quantity :	1	Price :	Online consultation
Packaging Details :	Carton	Delivery Time :	one week
Payment Terms :	T/T	Supply Ability :	100000+pc+one week

Place of Origin:	Italy	Brand Name:	diniargeo
Certification:	-	Model Number:	KCPNA

Detail Information
Range:	250 To 10000 Kg	Protection Class:	IP68
Product Name:	Load Cell Module	Material & Plate:	Alloy Steel
Perating Temperature Range::	O -30°C/+70°C	Line Length:	3-6m
High Light:	Compression load scale sensor , IP68 strain gauge weight scale

Product Description

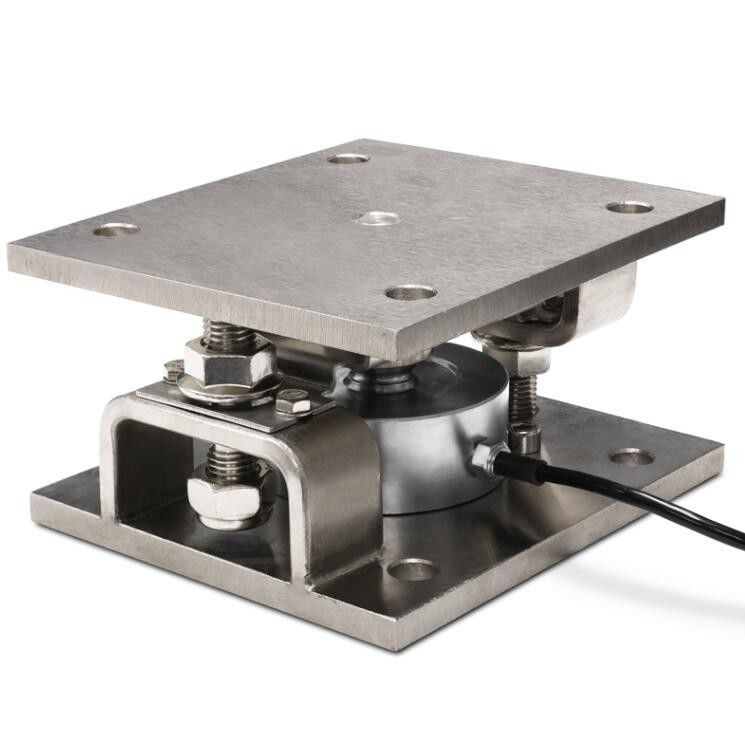

Italy diniargeo KCPNA load cell module CP Alloy steel load cell module for CPX compression load cells

Installation kit for compression load cells series CP/CPX up to 12.500kg, suitable for silos, tanks and hoppers weighing
ADVANTAGES:

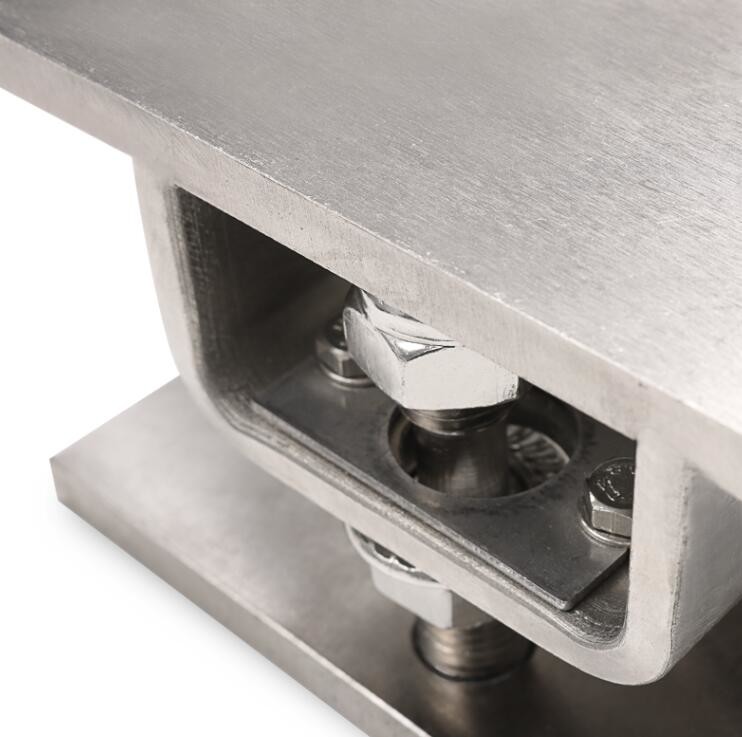

- Self-centering connection segment between lower and upper plates
- Protection against electrostatic charges
- Anti-overturn system.
- Blocking system for an easy maintenant and a safe shipment

MAIN FEATURES

NICKEL-PLATED STEEL BODY.
GREAT RESISTANCE TO LATERAL FORCES.

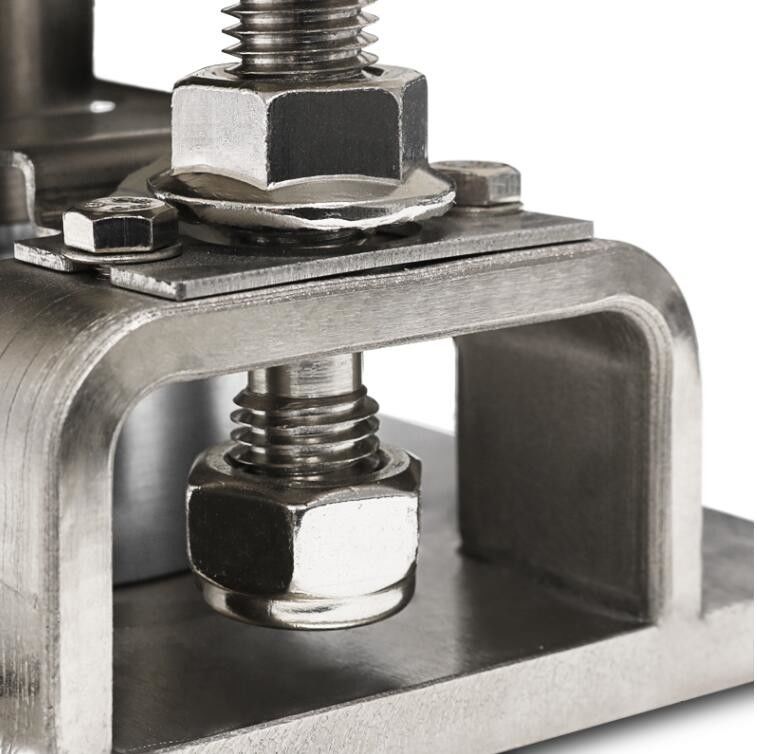

NUTS FOR MAINTAINING THE RAISED POSITION, FOR EASY INSTALLATION AND/OR SUBSTITUTION OF THE LOAD CELL.
LIMIT-SWITCH NUTS FOR PROTECTION OF THE LOAD CELLS IN CASE OF OVERLOAD.
SELF-CENTERING CONNECTION SEGMENT BETWEEN LOWER AND UPPER PLATES.
DUMMY LOAD CELLS FUNCTIONING FOR THE WEIGHING OF LIQUIDS.

The KCPNA kit is designed to allow the correct functioning of the cells and the requested weighing accuracy, within the limits described into the technical manual.

Available versions

	Code	Description
	KCPN10A	Nickel steel kit for assembling a CP/CPX cell, up to 12500kg. (Load cell not included)

Stay rod

	Code	Description
	LNK2635	Galvanized stay rod with ball-and-socket joints. Max 100 kN. For proper installation, 2xLNKST are needed.
	LNKST	Single plate for stay rod. Fitted with fixing screw. (For proper installation, LNK2635 and a second LNKST are needed).

Other options

	Code	Description
	GNDC	Grounding cable for weighing kit. 16 mm² section cable, 13 mm eyelets.

We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
