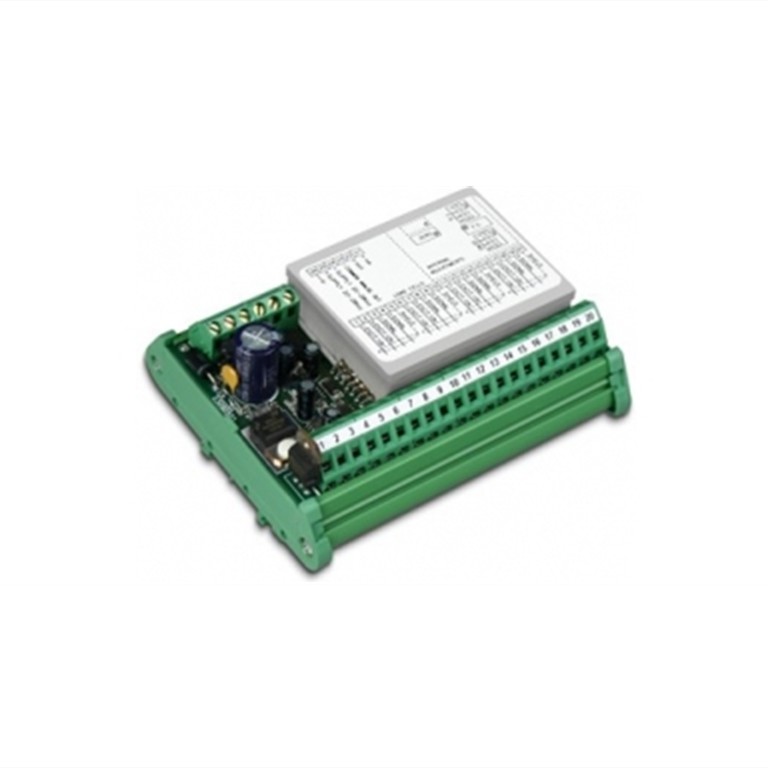

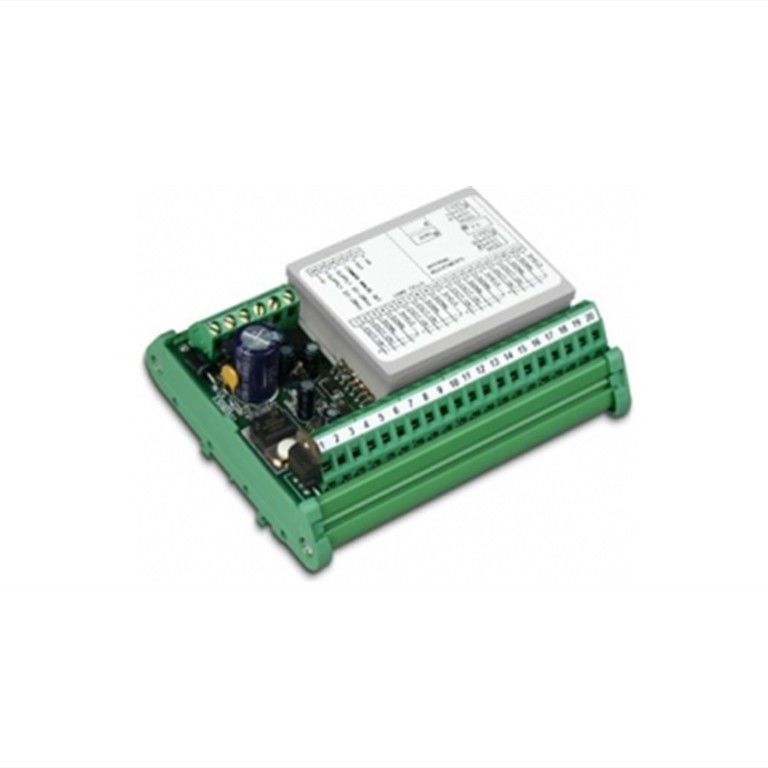

CONHON CH-AWT20L analog weighing transmitter

Minimum Order Quantity : 100 Price : ¥800-10000/pcs
Payment Terms : T/T Supply Ability : 99999+pc+1m
Place of Origin: CHINA Brand Name: CONHON
Certification: CE Model Number: CH-AWT20L

Detail Information

Working Temperature: -10 To + 50 ° C Power Supply: 20 To 28Vdc, Power: 6VA

Product Description

CONHON CH-AWT20L analog weighing transmitter


CH-AWT20L transmitter main features

The amplitude variation of the weight can be reduced by adjusting the potentiometer on the analog filter.
Size: 113 x 93mm, height: 60mm
Use the 4 adjustment switches (-2.4 to 17mV) on the motherboard to roughly adjust the zero point.
Use the other 4 adjustment switches (2 to 24mV) on the motherboard to roughly adjust the full load.
Adjust the potentiometer on the fine adjustment zero point to fine adjust the zero point.
Fine-tuning the potentiometer on the full load can fine-tune the full load.
Power supply: 20 to 28Vdc, power: 6VA
Accuracy: 0.25% of full load output
Repeatability: 0.01% of full load
Thermal stability: 0.01% / 10 ℃ at full load
Working temperature: -10 to + 50 ° C


CH-AWT20L transmitter I / O interface

Measurement range from 3.5 to 24mV
Sensor voltage: 10Vdc
Connect up to 6 sensors with 350Ω input resistance
0-20mA, 4-20mA, 0-10V or +/- 5Vdc (AWT20L5 models only) analog output


CH-AWT20L transmitter optional model


MODEL Description
CH-AWT20L CH-AWT weight transmitter Weight transmitter: 0-20mA, 4-20mA or 0-10Vdc analog output.
CH-AWT20L5 CH-AWT20L5 weight transmitter: +/- 5Vdc analog output.
