Double Axle Weighing Scales

Product Details:
Place of Origin: CHINA
Brand Name: CONHON
Model Number: CHZ-G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Online consultation
Packaging Details: Carton
Delivery Time: one week
Payment Terms: T/T
Supply Ability: 100000+pc+one week

Detail Information

Product Name: Weighbridge Truck Scale Range: 60t
Accuracy: Table Size: 3.2m × 0.9m
Excitation Voltage:: 5VDC Material: Carbon Steel
High Light:

60t axle weigh pads


60t portable axle scales


60t wheel weighing scale

Product Description

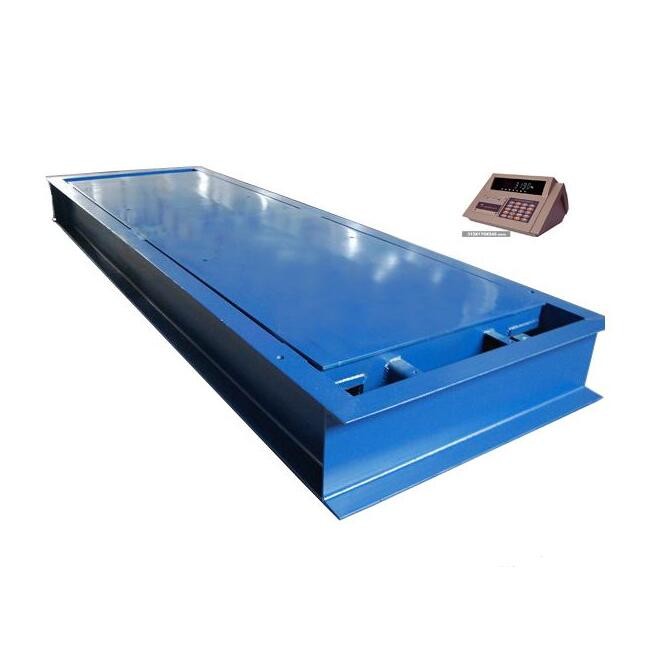

CHZ-G Fixed electronic axle load scale Axle Weighing Scales Double axle load scale Embedded Axle Weighing Scales


The fixed electronic axle load scale is composed of a steel structure modular weighing platform, a precision resistance strain type analog sensor and a dynamic weighing control display instrument. Weighing indicator adopts ultra-low drift, low noise, high-precision DC amplifier, fast and precise delta-sigma A / D converter, conversion speed> 500 times / second, and 1 million internal divisions. MCS-51 single-chip transistor, large six-bit fluorescent weighing value display and function status display, with uninterrupted clock circuit, standard Rs232c, Rs422 serial serial port, can communicate with a computer, can be connected to a large screen display, can be connected to a printer for Chinese Record-type statistical printing: quadruple order, shift, combined shift, daily report, car number, article number, etc. With strong software functions, dynamic / static weighing switching, gross / net weight display conversion, date / time modification and display, car number / article number setting and display, number / cumulative display, division value selection, tare, tare Enter, set to zero, switch between automatic / manual, weighing calibration, parameter setting and modification, shift exchange, replacement, check data review, clear, etc.

Second, the characteristics of fixed axle load scale:

Double-layer structure, with built-in anti-dimensional holes, extremely convenient for maintenance and installation;

Built-in junction box, beautiful and generous;

U-shaped cold-formed steel group welding, high strength of the scale body;

Slab welding

The structure is sturdy and durable.

Maximum axle weight: 60t

Minimum detection axle weight is 500Kg;

Unlimited number of axes;

Static weighing accuracy: national standard Ⅲ;

The reference size of the table is 3.2m × 0.9m (customized according to the horizontal direction of the lane).



We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
