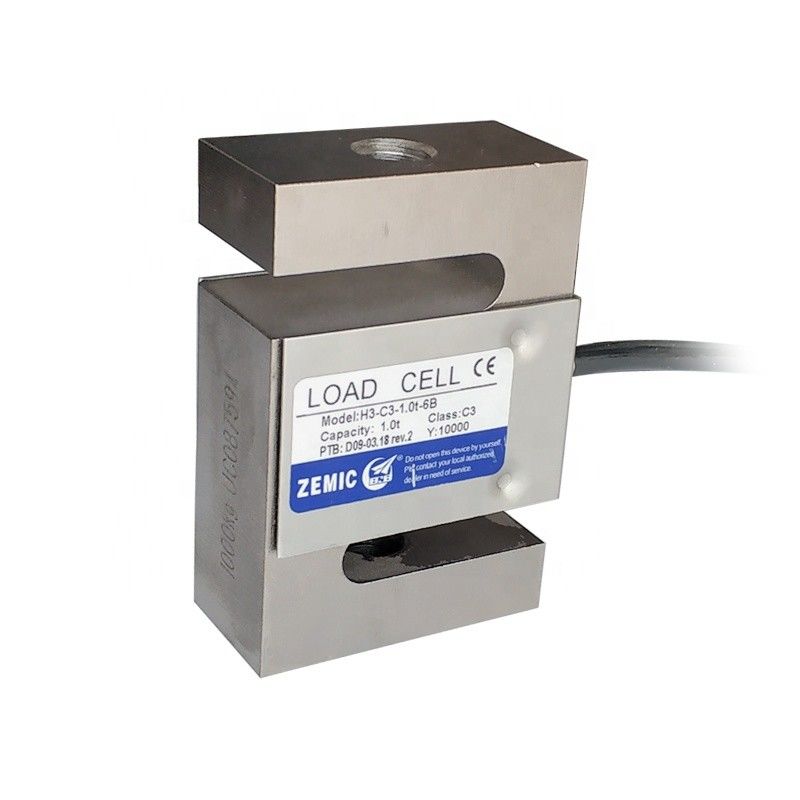

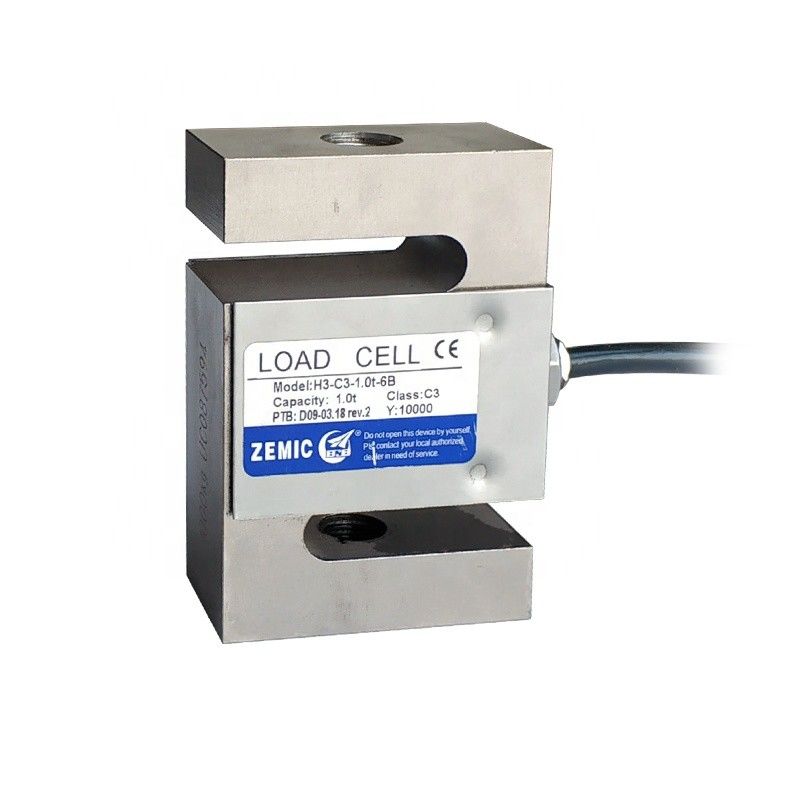

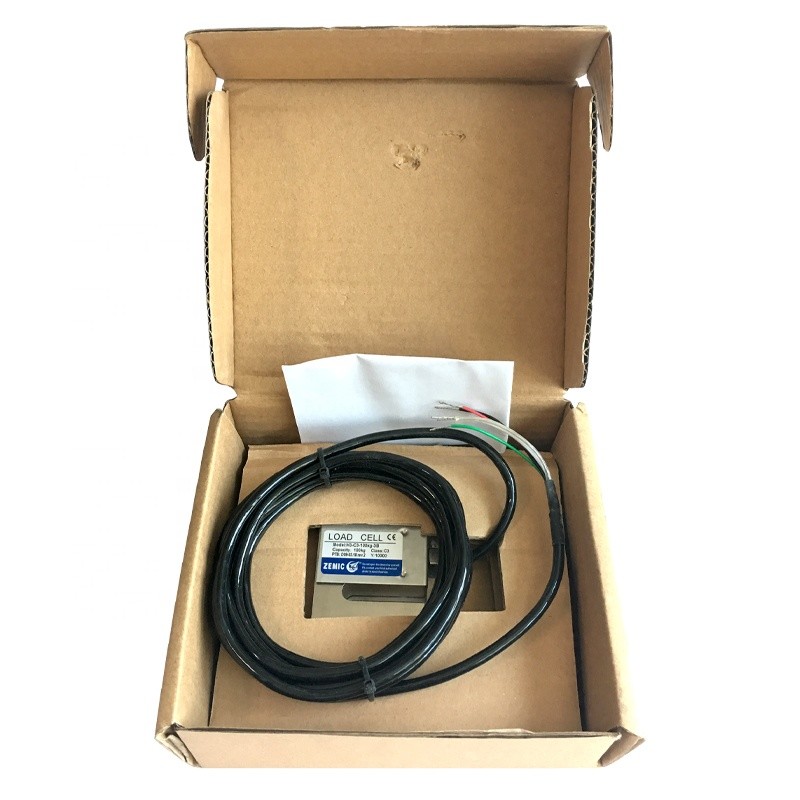

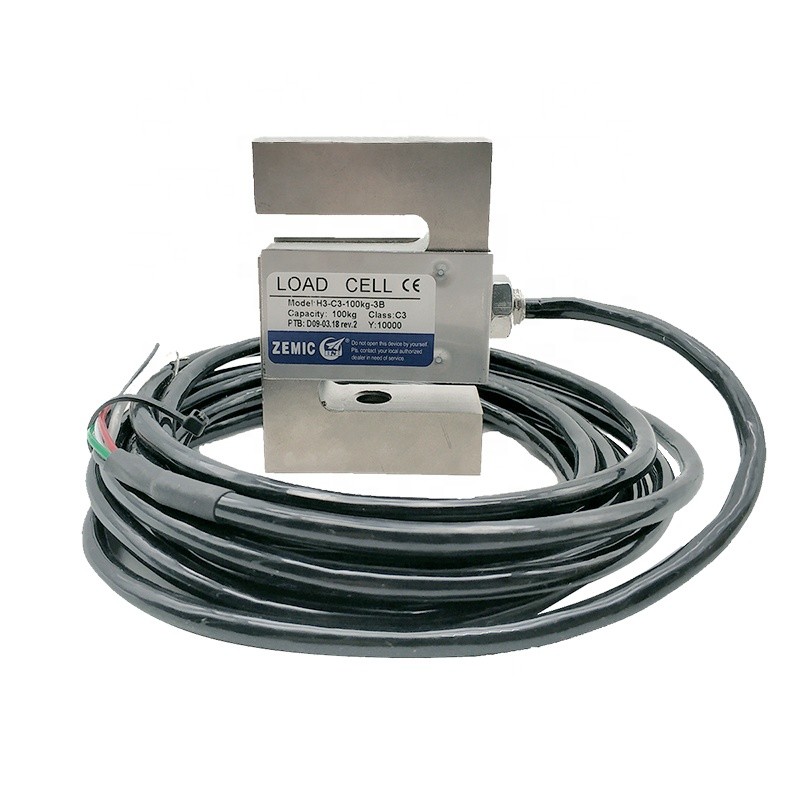

H3 Nickel Plated Alloy Steel S Beam Load Cell

Minimum Order Quantity : 100 Price : ¥800-10000/pcs
Delivery Time : 2-4weeks Payment Terms : T/T
Supply Ability : 99999+pc+1m
Place of Origin: CHINA Brand Name: ZEMIC
Certification: CE Model Number: H3

Detail Information

Safe Temp. Range: -10ºC To + 70ºC Temp. Compensated: -10ºC To + 40ºC
Rated Excitation: 10V DC/AC Maximum Excitation: 15V DC/AC
Cable Color Code: Red(+E) Black(-E) Green(+S) White(-S) Rated Output: 2.0mV/V ±0.1% / 3.0mV/V ±0.1%
High Light:

Nickel Plated s type load cell


Alloy Steel weigh hopper load cells

Product Description

H3 S Type High Precision Nickel Plated Alloy Steel Load Cell


- Nickel plated alloy steel IP67 "S" type load cell

- Tension and compression applications

- Suitable for hanging, hopper and other weighing devices

- Also available in imperial capacities and dimensions




Available Models

Capacity Accuracy Full Article Description
25kg C3 Excluded from OIML H3-C3-25kg-3B
50kg C3 Excluded from OIML H3-C3-50kg-3B
100kg C3/C4 H3-C3/C4-100kg-3B
150kg C3/C4 H3-C3/C4-150kg-3B
200kg C3/C4 H3-C3/C4-200kg-3B
250kg C3/C4 H3-C3/C4-250kg-3B
300kg C3/C4 H3-C3/C4-300kg-3B
500kg C3/C4 H3-C3/C4-500kg-3B
600kg C3/C4 H3-C3/C4-600kg-3B
750kg C3/C4 H3-C3/C4-750kg-3B
1t C3/C4 H3-C3/C4-1t-3B
1.5t C3/C4 H3-C3/C4-1.5t-3B
2t C3/C4 H3-C3/C4-2t-3B
2.5t C3/C4 H3-C3/C4-2.5t-3B
3t C3 Excluded from OIML H3-C3-3t-3B
5t C3 Excluded from OIML H3-C3-5t-3B
7.5t C3 Excluded from OIML H3-C3-7.5t-3B
10t C3 Excluded from OIML H3-C3-10t-3B
15t C3 Excluded from OIML H3-C3-15t-3B
20t C3 Excluded from OIML H3-C3-20t-3B
30t C3 Excluded from OIML H3-C3-30t-3B



H3 Nickel Plated Alloy Steel S Beam Load Cell 0


Dimensions and Wiring

H3 Nickel Plated Alloy Steel S Beam Load Cell 1
