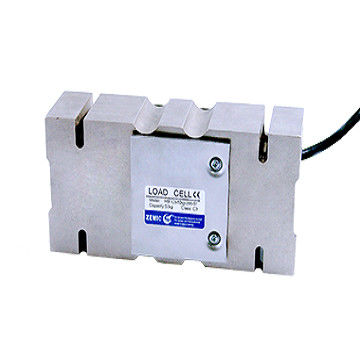

H6F Zemic IP66 Single Point Digital Scale Load Cell

Minimum Order Quantity : 100 Price : ¥800-10000/pcs
Delivery Time : 2-4weeks Payment Terms : T/T
Supply Ability : 99999+pc+1m
Place of Origin: CHINA Brand Name: ZEMIC
Certification: CE Model Number: H6F

Detail Information

Sensitivity: 2.0000±0.002mV/V Creep(30minutes): ±0.02%F.S
Maximum Excitatio: 15V(AC Or DC) Compensated Temperature: -10~+40℃
Operating Temperature: -35~+65℃ Excitation Maximum: 18V (DC)
High Light:

Zemic single point load cell


IP66 weight indicator load cell

Product Description

Load cell sensor Zemic Nickel plated alloy steel IP66 single point load cell H6F


  • Bending beam

  • Suitable for belt, platform and other electronic weighing devices

  • Maximum platform size:

  • for 50kg-200kg: 400 x 400 mm

  • for 250kg-500kg: 600 x 800 mm

  • for 750kg-2t: 1200 x 1200 mm

Available models
Capacity Accuracy Full article description
100kg C3 not approved H6F-C3-100kgkg-3B6
150kg C3not approved H6F-C3-150kg-3B6
200kg C3not approved H6F-C3-200kg-3B6
250kg C3 H6F-C3-250kg-3B6
500kg C3 H6F-C3-500kg-3B6
750kg C3 H6F-C3-750kg-3B6
1000kg C3 H6F-C3-1000kg-3B6
2000kg C3 H6F-C3-2000kg-3B6



Accuracy class   C3 OIML R60 C3
Maximum capacity ( Emax ) kg 100/150/200/250 300/500/1000/2000
Maximum number of load cell intervals ( nLC )   3000
Ratio of minimum LC verification interval Y = Emax / vmin   10000
Combined error %FS ±0.023
Output sensitivity ( = FS ) mV/V 2.0±0.2
Input resistance Ω 400±20
Output resistance Ω 350±3.5
Insulation resistance ≥ 5000(50VDC)
Zero balance %FS ≤ ±1.0
Compensated temperature -10~+40
Operating temperature -35~+65
Excitation, recommended voltage V 5~12 (DC)
Excitation maximum V 18 (DC)
Safe overload %FS 150
Ultimate overload %FS 300
Corner correction   0.02%load value/100mm
ATEX class( optional )       II1G Ex ia IIC T4   II1D Ex iaD20 T73℃ II3G Ex nL II C T4
Ingress protection (according to EN 60529) Stainless steel
60529) IP67 Recommended torque on fixation IP67
