Stainless Steel Column Digital Weighing Load Cell
Contact Person : Peter
Phone Number : +86-13764443932
WhatsApp : +8613764443932
| Minimum Order Quantity : | 100 | Price : | 100-1200$/pcs |
|---|---|---|---|
| Delivery Time : | 2-4weeks | Payment Terms : | T/T |
| Supply Ability : | 99999+pc+1m |
| Place of Origin: | USA | Brand Name: | VISHAY |
|---|---|---|---|
| Certification: | CE | Model Number: | HBB |
|
Detail Information |
|||
| Rated Excitation: | 10V DC/AC | Maximum Excitation: | 15V DC/AC |
|---|---|---|---|
| Input Impedance: | 775ohm ± 5ohm | Output Impedance: | 702ohm ± 2ohm |
| Safe Temp. Range: | -10oC To + 70oC | Temp. Compensated: | -10oC To + 40oC |
| High Light: | 200kg weighbridge load cell,Bellows digital scale load cell |
||
Product Description

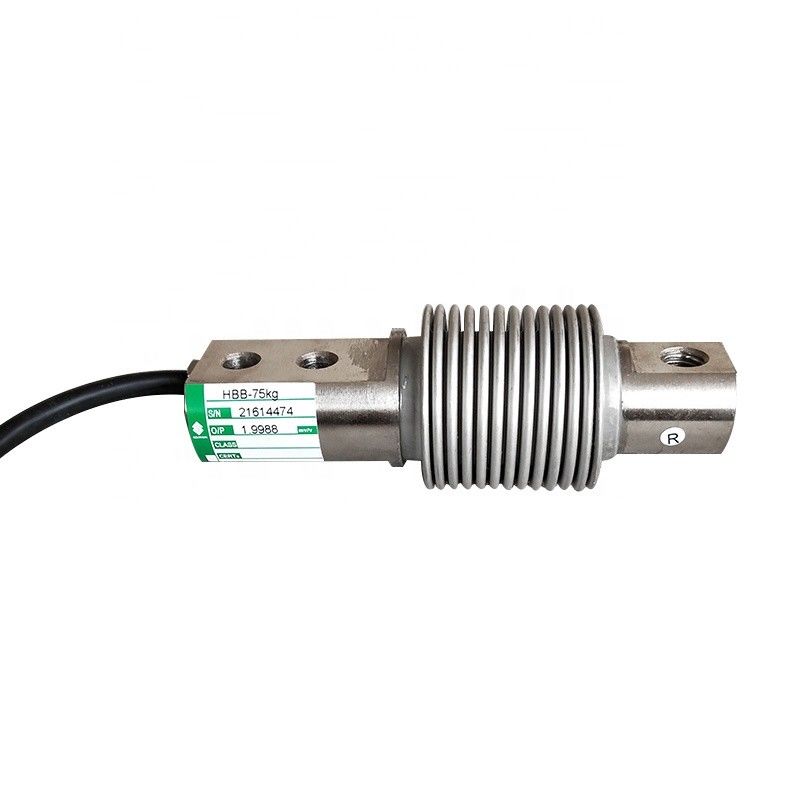

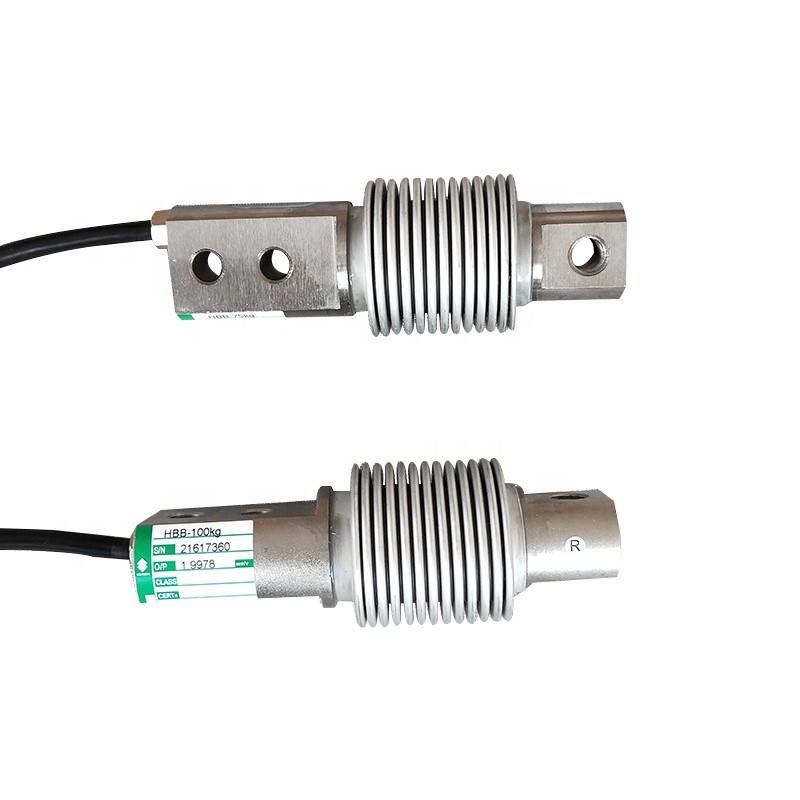

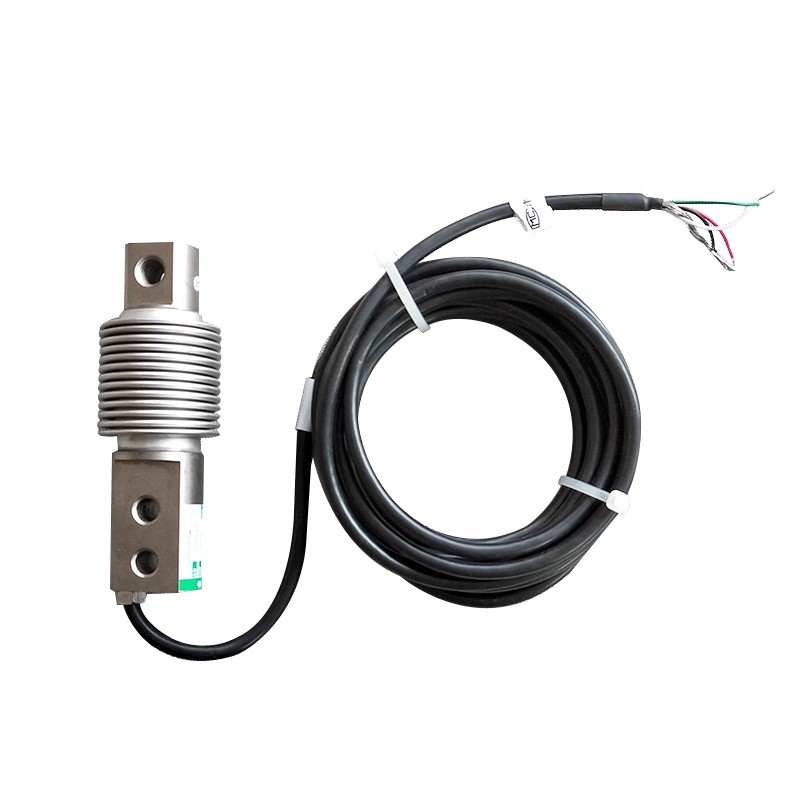

VISHAY HBB-30kg50kg75kg100kg200kg Bellows weighing Load cell sensor
Application: platform scale (multiple sensors), silo/funnel/tank weighing, packaging machine, metering/filling,belt scale Celtron HBB series is a single-ended bending beam type weighing sensor, mainly used for filling in low plane scale or small boxes,installation needs to use appropriate installation accessories, not easy to be affected by the surrounding, and strong load capacity. The material of the Beam-cutting type weighing sensor is alloy steel, which is fully compressed with special compounds. It has good waterproof and moisture-proof function, and the protection grade is IP68. Alloy steel/stainless steel
