IP67 Electronic Hanging Scale

Product Details:
Place of Origin: CHINA
Brand Name: Diniargeo
Certification: CE
Model Number: MCW09
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 5-8week
Payment Terms: T/T
Supply Ability: 999+pc+2m

Detail Information

Range: 3000 6000 9000 12000 17000 25000 30000 50000 Operating Temperature: -10 /+40 ºC
Charger Battery: 230Vac 50 Hz Precision: +/- 0.05% F.S.
Model: MCW Waterproof Keyboard With 5 Keys: ZERO, AUTOMATIC TARE, MODE, PRINT, And ON/OFF.
High Light:

IP67 suspension scale


IP67 digital hanging scale


IP67 hanging weight scale

Product Description

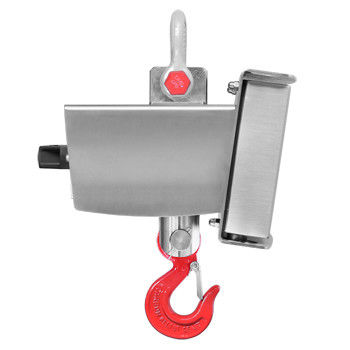

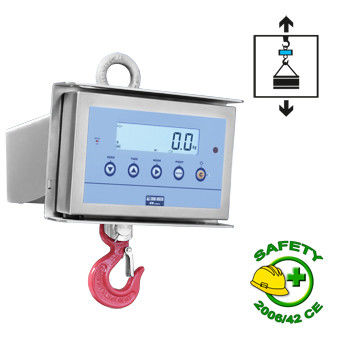

MCW "Professional" series single safety hook scale High precision stainless steel Hanging Scales

Reliable and easy to use AISI 304 stainless steel crane scales suitable for indoor and outdoor use, for industrial weighing applications. Reduced lifting distance of the crane.
The single security system makes them suitable for lifting and weighing the load.
IP67 protection from dust and rain. Available also CE-M APPROVED. Fitted with test certificate obtained with sample weights.
Single security system, for the lifting and the weighing of the load.
In compliance with the directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30/EU.
Large backlit 25mm LCD display easily visible in all lighting conditions and also with low temperatures.
Fitted with standard approved upper galvanized shackle and standard approved bottom hook.
GR3 and GOC1 for MCWR2 (150/300/600/1500).
Reduced distance between the upper shackle and bottom hook.
Precision: +/- 0.05% F.S.
Waterproof keyboard with 5 keys: ZERO, AUTOMATIC TARE, MODE, PRINT, and ON/OFF.
MODE-key configurable as:
PEAK (maximum value read), HOLD (blocking the weight viewed), Weighs accumulation, lb/kg/N conversion.
See the user manual for the list of the functions.
IP67 stainless steel case.
Fitted with remote control for up to a 8 m distance. The remote control may be configured by the customer as automatic tare only, or as a remote keypad.
Rechargeable sealed battery with a 40-hour life battery. On request, it is available a second battery for a 24/7 use.
Equipped with 230Vac 50 Hz battery charger.
Operating temperature: -10 /+40 ºC.
Programmable digital filter and auto switch-off.

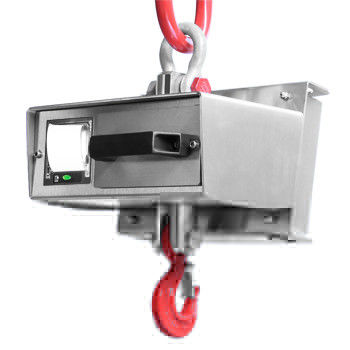

Integrated thermal printer TPRPR2.
WI-FI interface.
RF weight transmission to remote indicator up to over 70m indoors, 150m outdoors, adeguate environmental and installation conditions.
433MHz radiofrequency remote control (compatible with remote indicator).
DOT red LED display of 40mm.
Second battery for a 24/7 use (code MCWKBK).
ACCREDIA calibration certificate according to OIML/ASTM standards.
Remote weight indicator (see DFW.., 3590.., TRS.., DGT60.. Series' indicators) with printer connected through radio frequency.
Infrared 19-key remote control (standard), operating up to 8m:
zero; tare / manual tare; enable / disable function; print; switch-off.
Radiofrequency 6-key remote control (optional) operating up to 50m:
zero; tare; enable / disable function; print; switch-off.
Hanging Scales Available versions
IP67 Electronic Hanging Scale 0
d HR
  MCW300R2-1 300 0,1 -- 0,05
  MCW600R2-1 600 0,2 -- 0,1
  MCW1500R2-1 1500 0,5 -- 0,2
  MCW150MR2-1 IP67 Electronic Hanging Scale 1 150 -- 0,05 --
  MCW300MR2-1 IP67 Electronic Hanging Scale 1 300 -- 0,1 --
  MCW600MR2-1 IP67 Electronic Hanging Scale 1 600 -- 0,2 --
  MCW1500MR2-1 IP67 Electronic Hanging Scale 1 1500 -- 0,5 --
