IP67 Weighing Scale Indicator

Minimum Order Quantity :	1	Delivery Time :	2-4week
Payment Terms :	T/T	Supply Ability :	999+pc+1m

Place of Origin:	CHINA	Brand Name:	Diniargeo
Certification:	CE	Model Number:	6116

Detail Information
Power Supply:	110/240Vac	Dimensions (lxhxw):	385x230x141 Mm
Model:	6116	Brand:	Diniargeo
Analogue Output:	4-20mA / 0-5Vdc / 0-10Vdc	Photomosfet Outputs:	150 MA 48 Vac / 150 MA 60 Vdc
Highlight:	IP67 weighbridge indicator , IP67 digital weight indicator , IP67 digital scale indicator

Product Description

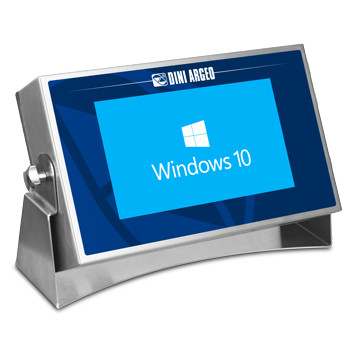

IP67 touch screen PC "6116" series, for industrial environments Weight Indicators Controller

Industrial PC, with AISI 304 STAINLESS steel body and IP67 protection degree, specific for harsh industrial environments. High-performance Intel electronics.

TECHNICAL FEATURES

Quad Core 64bit Intel processor, up to 1.92GHz

GPU Intel GEN 8 HD 400 graphic processor

Pre-installed Windows 10 operating system

Resistive touch screen display, suitable for use with gloves and in presence of water/condensation.

Dimension 10.1", resolution 1024x600,

RAM 4GB DDR3L

Data storage 64GB eMMC fast type

Integrated RTC (for date/time, bios, etc.)

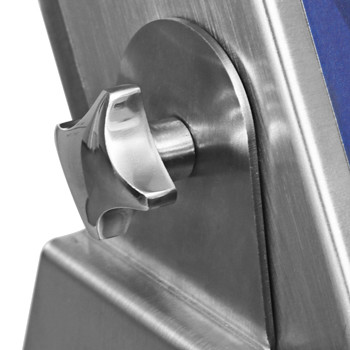

AISI 304 STAINLESS steel body, with adjustable inclination

Fitted with ergonomic bracket, for bench use or wall fixing

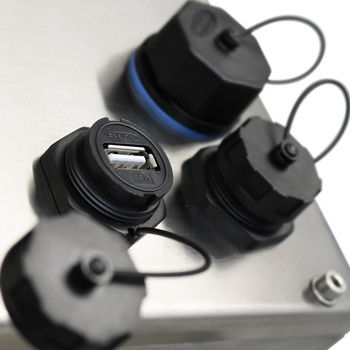

Industrial communication ports, with IP67 protection

Fanless technology

IP67 STAINLESS steel valve, for humidity and pressure regulation inside the case

IP67 overall protection degree

Working temperature: -10/60°C

Dimensions (lxhxw): 385x230x141 mm

Power supply 110/240Vac

AVAILABLE INPUTS/OUTPUTS

2 USB 2.0 panel ports

1 USB 2.0 available inside

1 ETHERNET panel port (1x Gbit)

1 USB 3.0 OTG available inside

Weight Indicators Controller Available versions

	Code	Description
	6116	High performance Touch screen PC, IP67 STAINLESS steel construction
