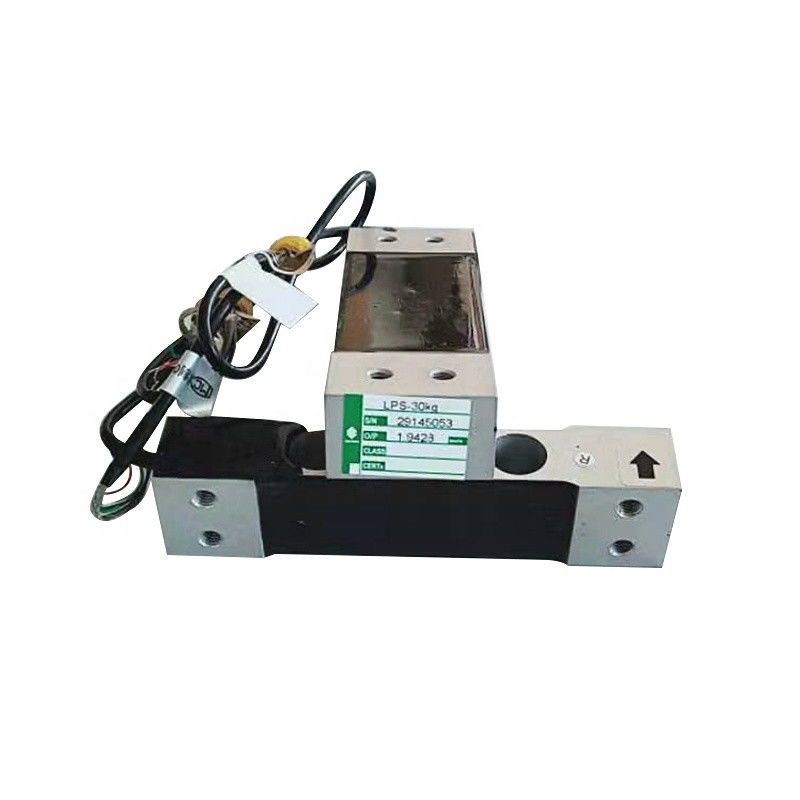

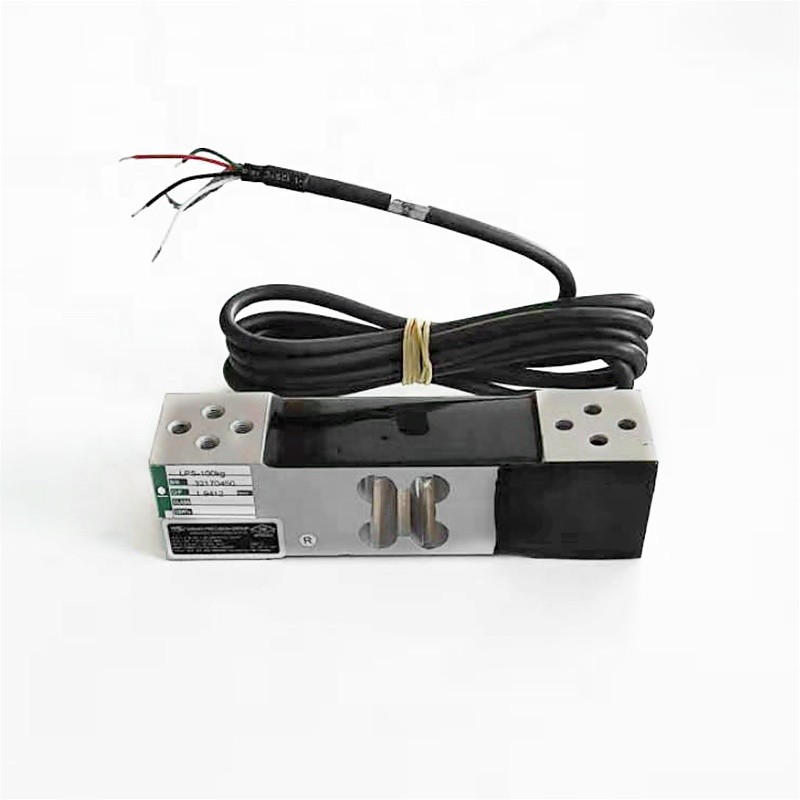

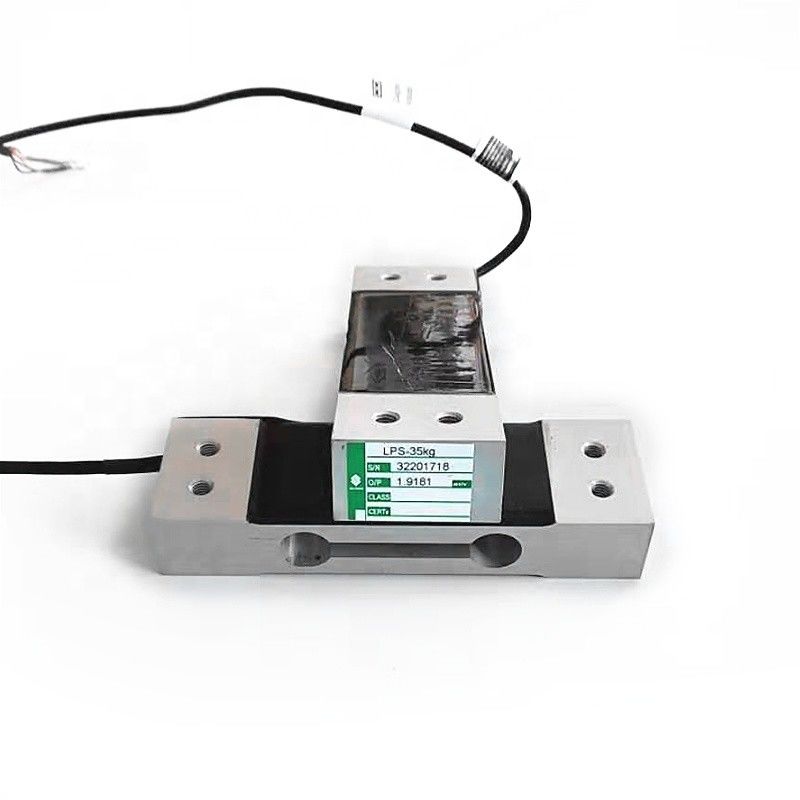

VISHAY Single Point Weighing load cell Sensor LPS -30kg 35kg 60kg 100kg 200kg
Main parameters of Celtron lps-0.6-200kg weighing Load cell sensor:
Low cross-section, small size;
NTEP Class III 5000S certification; OIML C3 certification;
Excitation voltage: 10VDC±5%;
Sensitivity output: 2 or 3mV/V;
Nonlinear: < 0.05% of the rated output;
Repeatability: < 0.003% of rated output;
Creep: < 0.02% of rated output;
Adaptive temperature of weighing sensor:—32℃—60℃
Overload capacity: 150% of sensor capacity;
Temperature sensitivity: ±0.0003% at zero value and ±0.0004% at full value.
Characteristics and application of Celtron LPS weighing Load cell sensor:
Celtron LPS weighing sensor can be installed quickly, stable and reliable.
Celtron LPS weighing sensor is a single point sensor, belongs to the electroplated aluminum alloy material, has the good waterproof and anti-moisture function, the protection grade is IP66.
Celtron LPS weighing sensor is mainly applicable to any type of electronic belt scale, batching scale, weighing coal feeder, feeder and other industrial weighing equipment, postage scale, packaging scale, small hopper scale, platform scale and so on.
