3590ET8 "ENTERPRISE": weight indicator for industrial applications, stainless steel IP68 weighing instrument

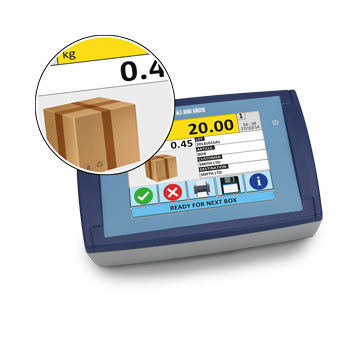

Digital weight indicator with a big 8" touch screen display, suitable for advanced industrial applications. It allows the visualization of all the weighing data and the customization of the screens, simplifying the user operations. Fitted with 3 serial ports, Ethenet port, transmission protocols for data communication, completely configurable printouts, integrated alibi memory, and port for connection to barcode/badge reader. CE-M approvable (OIML R-76 / EN 45501).

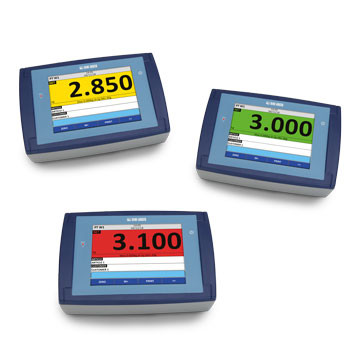

Backlit graphic display with 8" touch screen technology, lxh= 160x120 mm size. Screens completely customizables.
QWERTY, AZERTY o QWERTZ keyboard, selectable.
ABS waterproof enclosure, with new IP65 protection system (IP40 on version with thermal printer).
Dimensions: 278x125x186 mm.
Suitable for use on the table, column, or wall.
Real time clock and permanent data storage.
Fitted alibi memory, integrated on the motherboard.
Slot for built-in micro SD for recording logos (upon request).
Functions available with DINITOOLS utility
- Configuration, data entry and print formatting.
- Recording and filing of all the information on PC.
- Complete retrieval of the configuration.
- Instrument calibration with numeric values.
- Customization of the screens.
24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.
Specific version available, which provides the management of the most common digital load cells for weigh bridges (model 3590ETD8).
Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03).
Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade.
Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
Connectable to printers and labellers with free programmation of the printout formats.
110-240 Vac power supply.
EU Type Examination Certificate (45501:2015)
OIML R51 - MID
OIML R134 (AF09)
AF01: Totalization and formula weighing (integrated)
AF02: Pieces/quantity counting (optional)
AF03: Weighbridges - Input/Output vehicle (optional)
AF04: Statistical checking of prepackaged goods (optional)
AF05: Price compunting and industrial labelling (optional)
AF08: Wheel and axle static weighing with 2 or various platforms (optional)
AF09: Software for dynamic and static axle weighing with 1 or 2 platforms (optional)
BATCH1: Single product dosage systems in loading and unloading (optional)
Thanks to our integrated development, you can create complete customised applications in autonomy:
wizards, operator messages
serial port management, protocols customization
digital I/O full management
sequential or simultaneous automations
data entry, custom archives
Dini Argeo can offer the service of custom development programs.
1 internal Ethernet port as standard (if activated, it deactivates one serial port), to connect to the company network.
2 RS232 serial ports, for connection to printer, PC or PLC, radio module and optional interfaces.
1 RS232 serial port (RS485 optional), for connection to printer, remote scale, badge reader, or digital load cells.
Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).
4 optoisolated outputs (optional).
2 optoisolated inputs (optional).
External Profibus interface (optional), for automation management.
Modbus RTU Protocol.
Optional Bluetooth connection, for quick wireless programming of the activities and the formulas, through PC, tablet or smartphone.

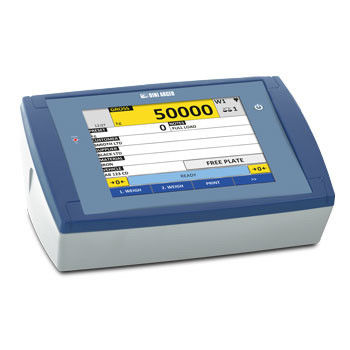

||8" Touch screen indicator with AF01 software. ABS enclosure. Colour Display. Internal Ethernet port as standard.

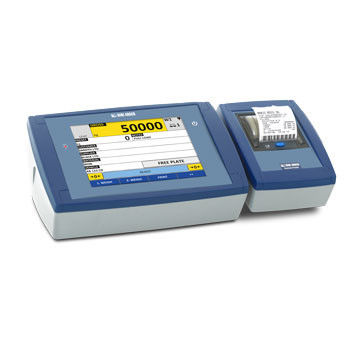

||Touch screen indicator with AF01 software with attached printer. ABS enclosure. Colour Display. Internal Ethernet port as standard.
