Spherical Joint 600kg 5m Digital Weight Sensor

Minimum Order Quantity :	1	Price :	Online consultation
Packaging Details :	Carton	Delivery Time :	one week
Payment Terms :	T/T	Supply Ability :	100000+pc+one week

Place of Origin:	Italy	Brand Name:	diniargeo
Certification:	-	Model Number:	KSBN

Detail Information
Range:	500 To 2000 Kg	Protection Class:	IP68
Product Name:	Load Cell Module	Material & Plate:	Alloy Steel
Perating Temperature Range::	O -30°C/+70°C	Line Length:	3-6m
High Light:	600kg load scale sensor , 5m electronic weight sensor

Product Description

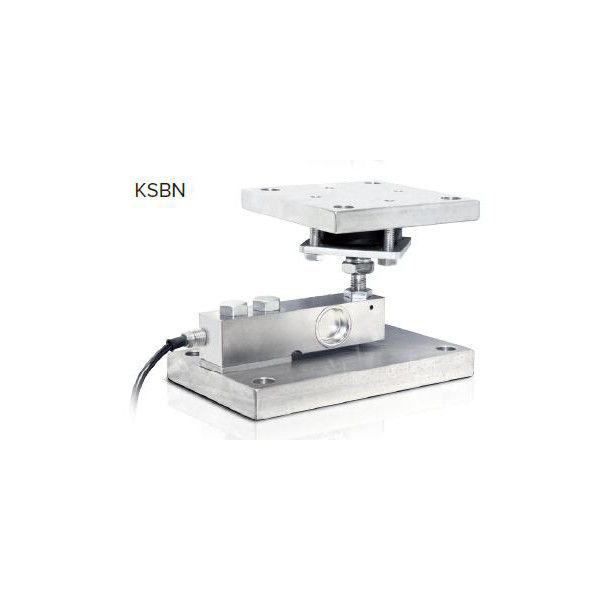

Italy diniargeo load cell module Assembly kits in nickel-plated steel "KSBN" series for SBX/SBK shear beam load

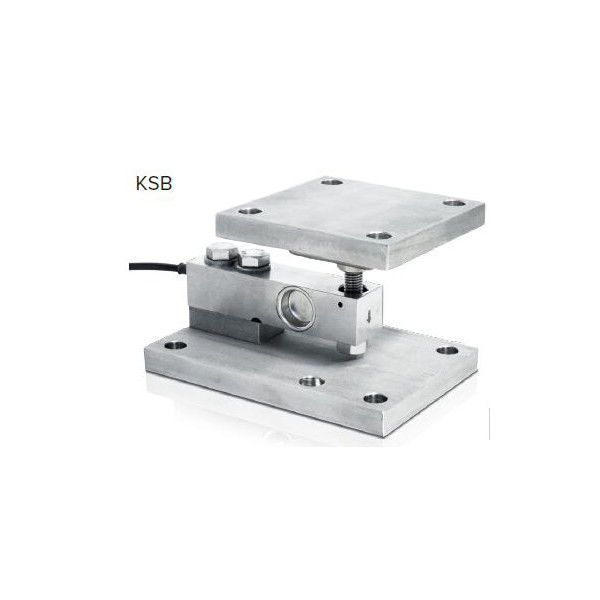

Assembly kits for shear beam load cells

Assembly kits for shear beam load cells SBX/SBK series up to 2500kg, suitable for hoppers, tanks, platforms, etc.
ADVANTAGES:
- Structure in nickel-plated steel.
- Easy and fast assembly.
- Upper plate with spherical joint for excellent measuring accuracy.
- Height adjustment for a correct leveling.

MAIN FEATURES

MANUFACTURED IN GALVANIZED STEEL
OSCILLATING SPHERICAL JOINT
MECHANICAL COMPENSATION OF THERMAL SWELLINGS AND TRANSVERSAL FORCES
EASY TO INSTALL
GUARANTEES THE MAXIMUM PRECISION OF THE LOAD CELL.

Available versions

	Code	Description
	KSBN2	Galvanized steel kit for assembling 1 SBT/SBK/SBX cell from 300 to 2500kg.

Stay rod

	Code	Description
	LNK2635	Galvanized stay rod with ball-and-socket joints. Max 100 kN. For proper installation, 2xLNKST are needed.
	LNKST	Single plate for stay rod. Fitted with fixing screw. (For proper installation, LNK2635 and a second LNKST are needed).

Options for ATEX version

	Code	Description
	DCATEXMECH	ATEX declaration for the PLATFORM / LOAD CELL ASSEMBLY KIT (for the load cells ATEX declaration see CCATEX code). Option to be offered only if the platform is ordered without the indicator, if so, refer to the chosen weight indicator available certifications.

Other options

	Code	Description
	GNDC	Grounding cable for weighing kit. 16 mm² section cable, 13 mm eyelets.
