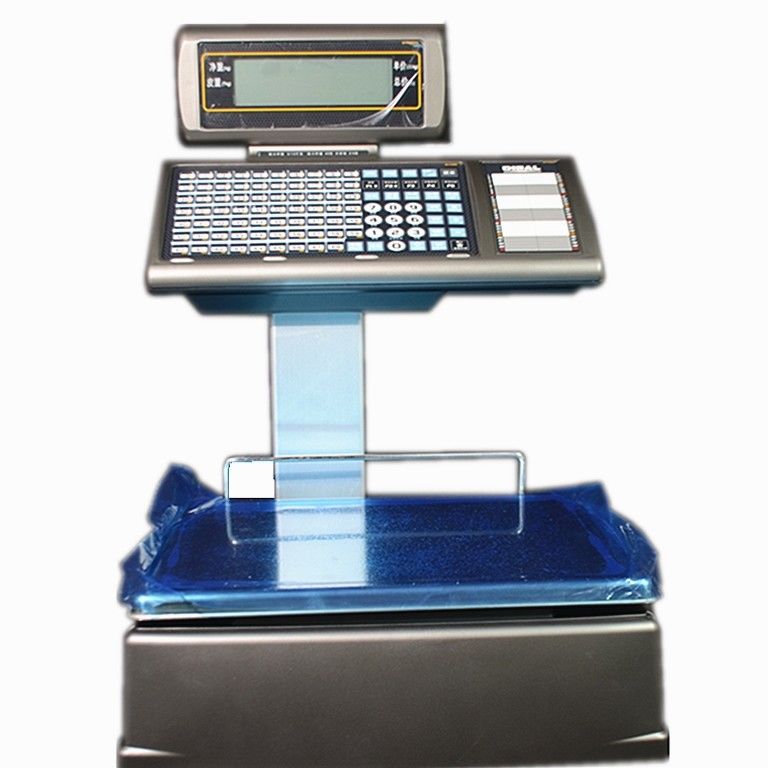

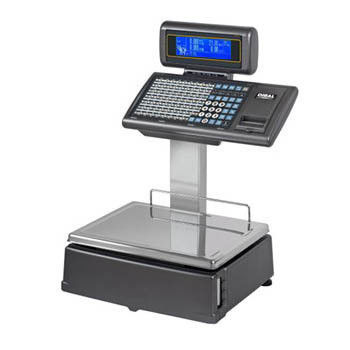

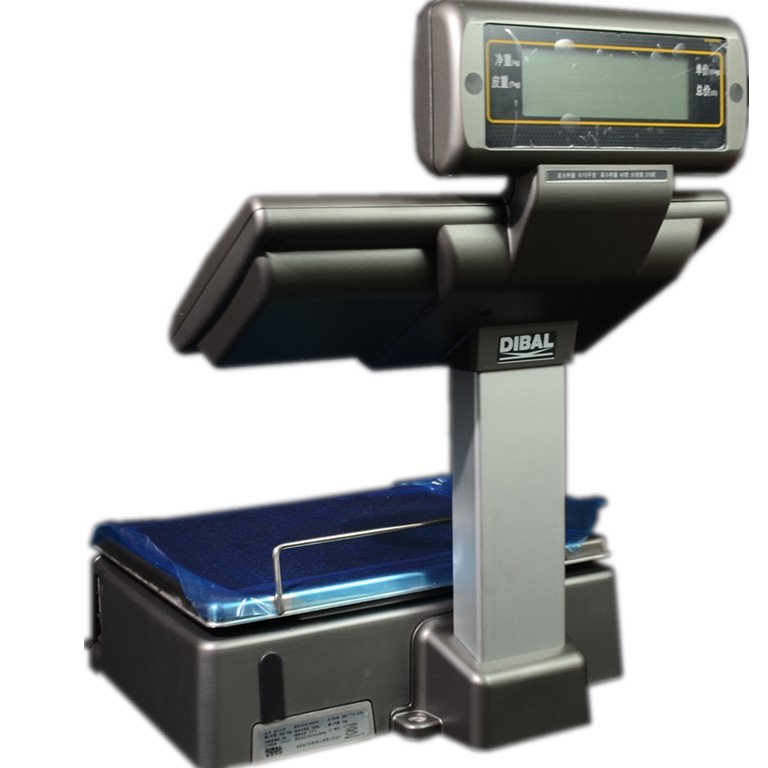

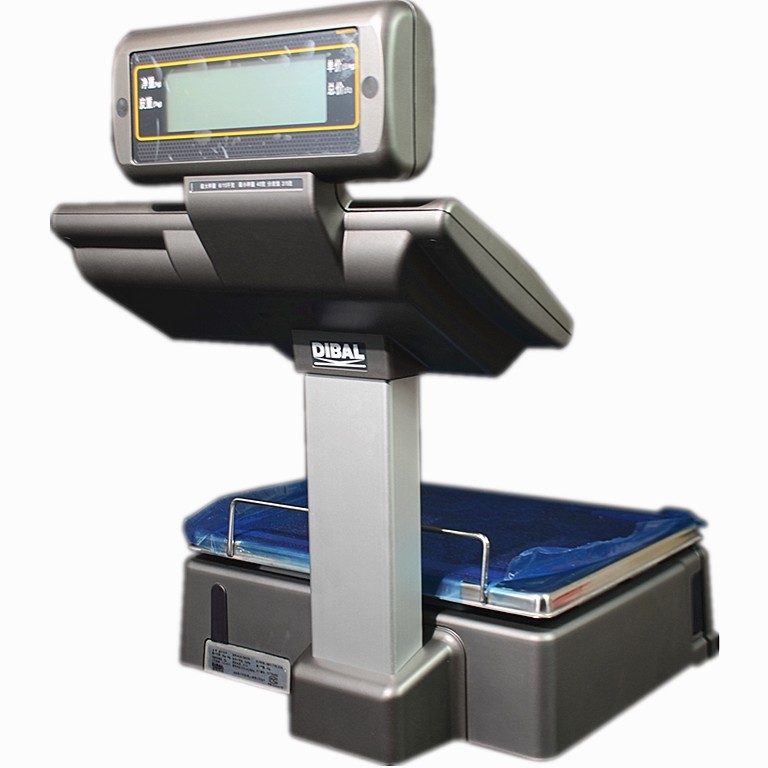

Supermarket Weigh Beam Scale

Product Details:
Place of Origin: CHINA
Brand Name: DIBAL
Certification: CE
Model Number: L545DM
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: ¥800-10000/pcs
Delivery Time: 5-8weeks
Payment Terms: T/T
Supply Ability: 99999+pc+1m

Detail Information

Graduation Value: 1 / 2g, 2 / 5g, 5 / 10g Printing Speed: 100mm
Print Head Life: 150KM Capacity: / 6kg, 6 / 15kg, 15 / 30kg
High Light:

6kg bar code scale


6kg digital price computing scale


100mm cash register scale

Product Description

DIBAL L545DM bar code series high-end commercial scales for large supermarket stores


infeng series barcode scales are high-end commercial scales tailored by Dibao Technology for large chain supermarkets, stores, etc., with a user-friendly split design to alleviate operating fatigue. The exclusive drawer paper tray paper changing method, the paper changing is simple and fast, which greatly improves the work efficiency.


Digital display (L545DM barcode scale; L545DM + wireless barcode scale; L555DM dual print barcode scale)
Chinese display (L585DM barcode scale; L585DM + wireless barcode scale; L595DM dual print barcode scale)

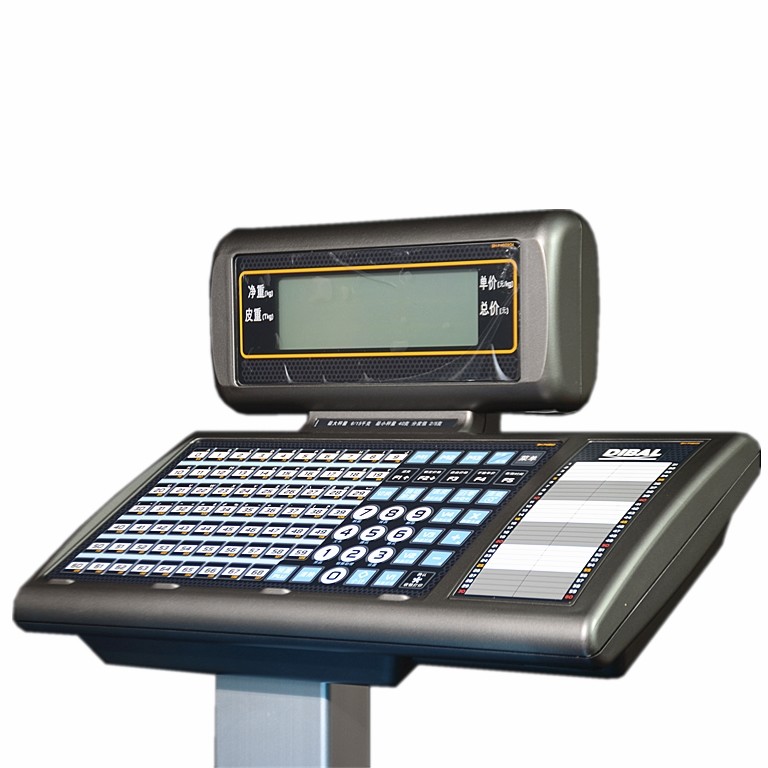

Double-sided LCD display, digital and Chinese character screen display optional


The mechanical keyboard is durable, the replacement cost is much lower than the membrane keyboard, the colorful key combinations are simple and clear, and easy to operate. Original imported print heads from internationally renowned brands have a long service life. Supports label size 30 * 30—60 * 100mm, 40 logos to choose from, 171 editable fields, flexible setting of label format, support for traceable source display, manual or automatic pre-packing mold, printing a preset number of duplicate labels Label rotation 90º-180º-270º printing, light perception automatically recognizes different papers, EAN13 / 18/25/128 yards multiple choices, can print seamless black labels, can print bottomless paper labels, drawer paper box change method , Convenient and fast, unique dual printing design, can print labels and cash register at the same time

communication method:
Cash drawer interface: can connect a variety of standard cash drawers
RS-232 interface: connect serial devices such as scanner ***, card reader, etc.
Ethernet interface: connect computer for data processing
USB interface (optional): One-key backup and restore of parameter configuration
Wireless WIFI (optional): wireless transmission, convenient and efficient
Transmission scale software BMS software independently developed for the domestic market, with a user-friendly interface, is simple and convenient to operate. Scale transfer speed: It takes only 90 seconds to send 5000 goods from 30 scales at the same time.


main feature:
Capacity: 3 / 6kg, 6 / 15kg, 15 / 30kg
Graduation value: 1 / 2g, 2 / 5g, 5 / 10g
Printing speed: 100mm /
Print head life: 150 km
Keyboard: 36 function keys, 137 shortcut keys
Preset function keys: 3 preset function keys M1, M2, M3, convenient and quick
Memory capacity: 10,000 PLUs
The drop-down menu is simple and clear. The menu details can be printed. The menu key directly enters programming in 2 seconds. The keyboard shortcut can directly call up to 999 PLs. You can search and call PLU goods by PLU code or name
Password protection: You can set passwords for menu programming, sales assistants, etc., one-touch printing function

Remote management:
The Websever remote management function independently developed by Dibao can use a computer or any other mobile Internet device (smartphone, tablet ...) via IP address
Access to electronic scales:
Password protection: For different function modules, set password protection
Technical support: remote inquiry and modification of main technical parameters on electronic scales
Sales information: query sales data and details by category
Information management: sales management, remote modification of sales prices
