CAS BSS Load Cell Module

Product Details:
Place of Origin: Korea
Brand Name: CAS
Certification: -
Model Number: BSS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Online consultation
Packaging Details: Carton
Delivery Time: one week
Payment Terms: T/T
Supply Ability: 100000+pc+one week

Detail Information

Range: 500Kg,1t,2t,3t,5t Accuracy Class: <4
Product Name: Load Cell Module Material & Plate: Stainless Steel
Temperature Range: -20— + 40 Readability: 1/3000
High Light:

Cantilever load cell amplifier module

,

Cantilever scale module

,

Cantilever arduino weight sensor module

Product Description

Korea CAS BSS Load Cell Module BSS accessory Cantilever load cell module Accessories for single shear load cells

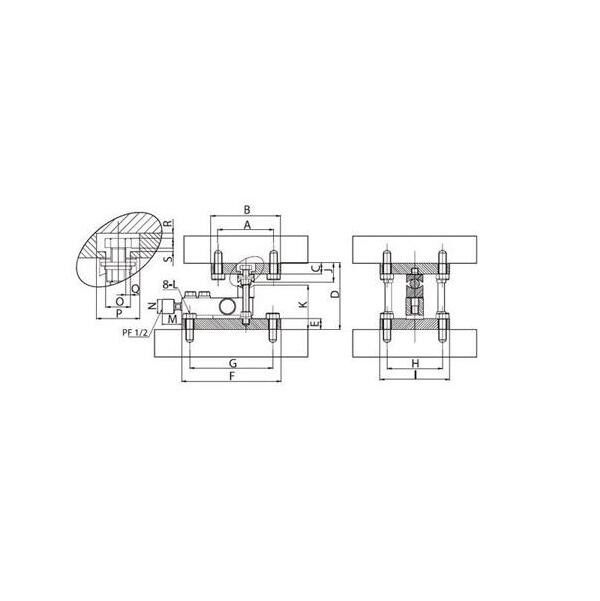

CAS BSS Load Cell Module 0
Capa A B C D E F G H I J K
500 101.6 127 17.8 115.9~123.9 17.8 180.9 52.3 101.6 101.6 127 M16
1K
2K
3K 101.6 127 23.9 136~144 23.9 215.9 82.5 101.6 101.6 127 M16
5K

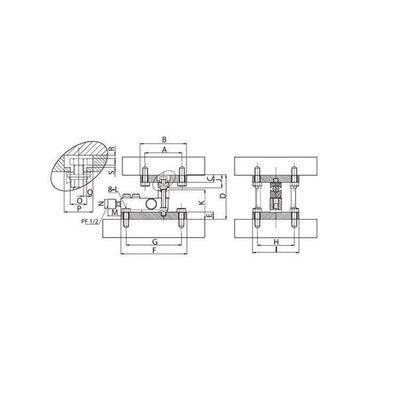

CAS BSS Load Cell Module 1


            Accessory Assembly TWE FEATURES
- Ball type
- High resolution
- Easy replacement

MANUAL
- Rise the Upper Plate by using the
supporters at both sides and join it
with the Base Plate
- Untie the upper bolt of the supporter
and place the Upper ball cup over
the steel Ball
- Check the level of the load cell










Capa A B C D E F G H I J K L M N O P Q
500 102 127 20 122 20 181 152 102 127 35 81.1 M16 20 40 4 3.8 3.2
1K
2K
3K 102 127 26 154 24 216 184 102 127 45 94.3 M16 28 46 5 3.6 3.4
5K

CAS BSS Load Cell Module 2

                  Accessory Assembly TW EXP FEATURES
- Loading bolt type
- Safety structure

MANUAL
- Base, Load Cell, Loading Bolt, Upper
are assembled in sequence
- While installing the loadcell the
surface level should be checked
- CAUTION
: The Loading Bolt has to be under
the Upper Plate












Capa A B C D E F G H I J K L M
500 101.6 127 17.8 115.9~123.9 17.8 180.9 52.3 101.6 101.6 127 M16 36 26
1K
2K
3K 101.6 127 23.9 136~144 23.9 215.9 82.5 101.6 101.6 127 M16 36 26
5K

CAS BSS Load Cell Module 3


Accessory Assembly TWE EXP FEATURES
- Ball type
- High resolution
- Easy replacement

MANUAL
- Rise the Upper Plate by using the
supporters at both sides and join it
with the Base Plate
- Untie the upper bolt of the supporter
and place the Upper ball cup over
the steel Ball
- Check the level of the load cell











Capa A B C D E F G H I J K L M N O P Q R S
500 102 127 20 122 20 181 152 102 127 35 81 M16 36 26 20 40 4 3.8 3.2
1K
2K
3K 102 127 26 154 24 216 184 102 127 45 94 M16 36 26 28 46 5 3.6 3.4
5K
