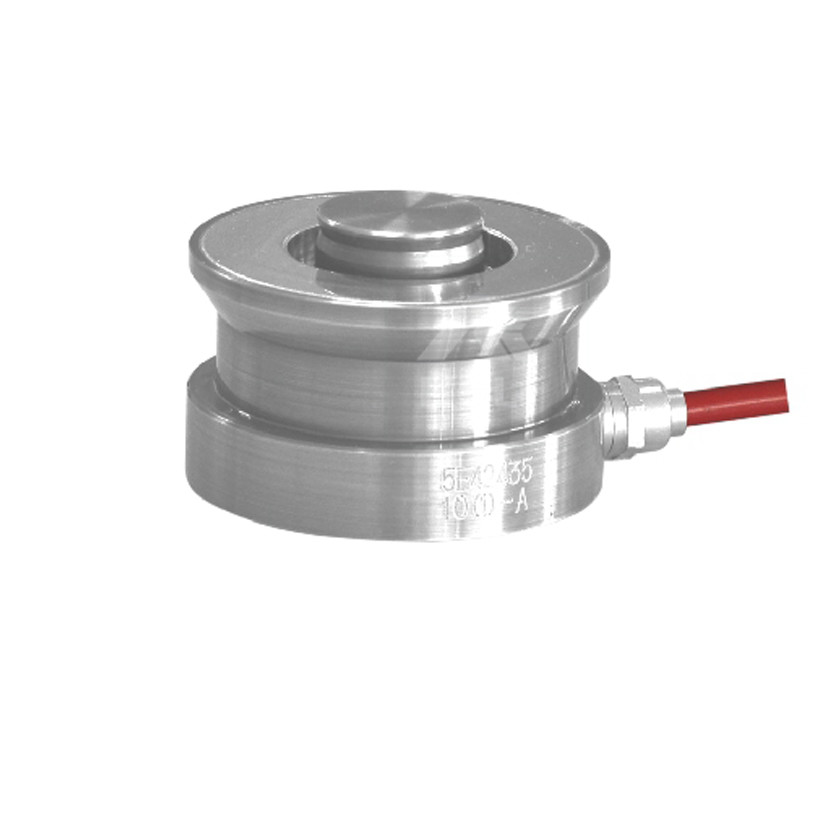

Testing Machine Threaded 100KG Force Load Cell
Contact Person : Peter
Phone Number : +86-13764443932
WhatsApp : +8613764443932
| Minimum Order Quantity : | 1 | Price : | Online consultation |
|---|---|---|---|
| Packaging Details : | Carton | Delivery Time : | one week |
| Payment Terms : | T/T | Supply Ability : | 100000+pc+one week |
| Place of Origin: | CHINA | Brand Name: | CONHON/KELI |
|---|---|---|---|
| Certification: | - | Model Number: | NHSY series |
|
Detail Information |
|||
| Product Name: | Force Load Cell | Range: | 1t~470t |
|---|---|---|---|
| Material: | Nickel-plated Alloy Steel | Rated Output: | 2.85±0.015mv/v |
| Environment Protection:: | IP67 | Maximum Excitation: | 15V DC |
Product Description
Weighing Load Cells FEATURES:
●capacity 10t to 470t
●force on plane bearing
●low height
●alloy steel, stainless steel
APPLICATION:
●platform scale
●hopper scale
| Outline Dimension: | |||||
| Rated capacity | D | d | H | h | h2 |
| 10t,15t,22t | 75 | 30 | 50 | 6.5 | 7 |
| 33t | 95 | 40 | 65 | 10 | 7 |
| 47t | 130 | 60 | 75 | 14 | 7 |
| 68t | 130 | 60 | 85 | 14 | 7 |
| 100t | 150 | 70 | 90 | 16 | 7 |
| 150t | 150 | 70 | 100 | 16 | 7 |
| 220t | 225 | 100 | 130 | 24 | 10 |
| 330t | 225 | 100 | 145 | 24 | 10 |
| 470t | 270 | 120 | 170 | 28 | 10 |
| SPECIFICATION: | |
| Rated capacity: 10ton to 470ton | Operating temperature range: -30 to +70℃ |
| Rated output:2.85±0.015mv/v | Maximum safe overload；150% OF R.C |
| Combined error:±0.05% F.S,±0.1% F.S,±0.2% F.S | Ultimate safe overload；180% OF R.C |
| Non-repeatability:±0.02% F.S | Recommended Excitation；10 to 12V DC |
| Non-linearity:±0.05% F.S,±0.1% F.S | Maximum Excitation；15V DC |
| Hysteresis error:±0.05% F.S,±0.1% F.S | Environment protection: IP67 |
| Zero balance: ±1% F.S | Input impedance: 1450±10Ω |
| Creep error(30minutes): ±0.02% F.S | Output impedance: 1402±5Ω |
| Temperature effect on zero: ±0.02% F.S | Insulation resistance at 50V DC: ≥5000MΩ |
| Temperature effect on output: ±0.02% F.S | Material: nickel-plated alloy steel |
| Compensated temperature range: -10 to +40℃ |
Cable length: 12meter(10t~33t), 16meter(47t~470t),diameter 6mm |
Hopper weighingscale load cell FEATURES:
●capacity 1t to 4.7t
●alloy steel, stainless steel
●low height
Column load cell APPLICATION:
●hopper scale
●platform scale
| Outline Dimension: | |||||||
| Rated capacity | D1 | D2 | d | K | H | D3 | D4 |
| 1t~4.7t | Φ50 | Φ60 | Φ20 | 7.5 | 43 | 53 | M5 |
NHS Series Load Cell SPECIFICATION:
| Rated capacity: 1ton to 4.7ton | Operating temperature range: -30 to +70℃ |
| Rated output:2.85±0.015mv/v | Maximum safe overload；150% OF R.C |
| Combined error:±0.1% F.S | Ultimate safe overload；180% OF R.C |
| Non-repeatability:±0.02% F.S | Recommended Excitation；10 to 12V DC |
| Non-linearity:±0.1% F.S | Maximum Excitation；15V DC |
| Hysteresis error:±0.1% F.S | Environment protection: IP67 |
| Zero balance: ±1% F.S | Input impedance: 1450±10Ω |
| Creep error(30minutes): ±0.03% F.S | Output impedance: 1402±5Ω |
| Temperature effect on zero: ±0.02% F.S | Insulation resistance at 50V DC: ≥5000MΩ |
| Temperature effect on output: ±0.02% F.S | Material: nickel-plated alloy steel |
| Compensated temperature range: -10 to +40℃ | Cable length: 8meter, diameter 6mm |
