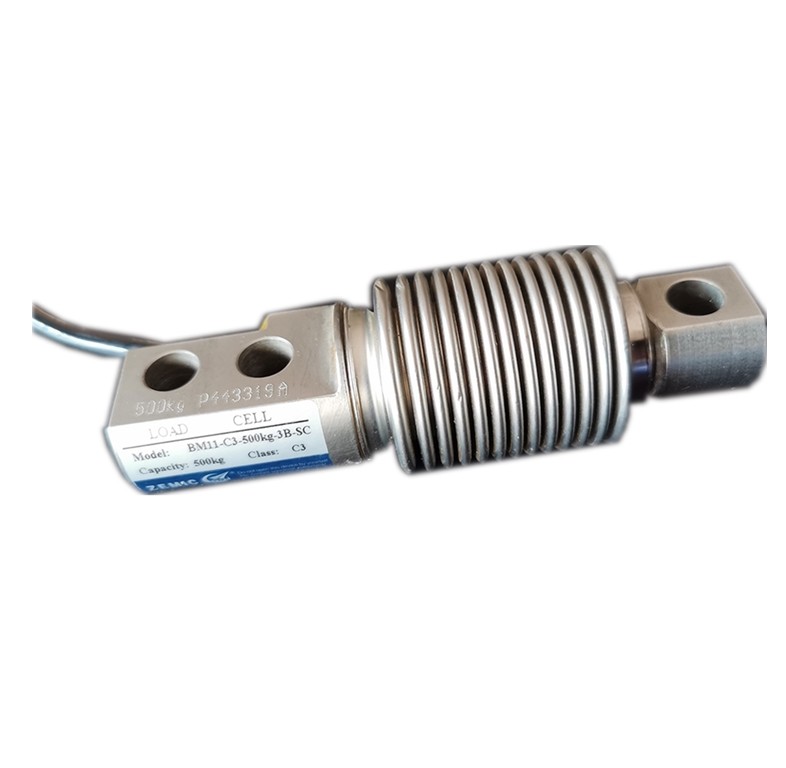

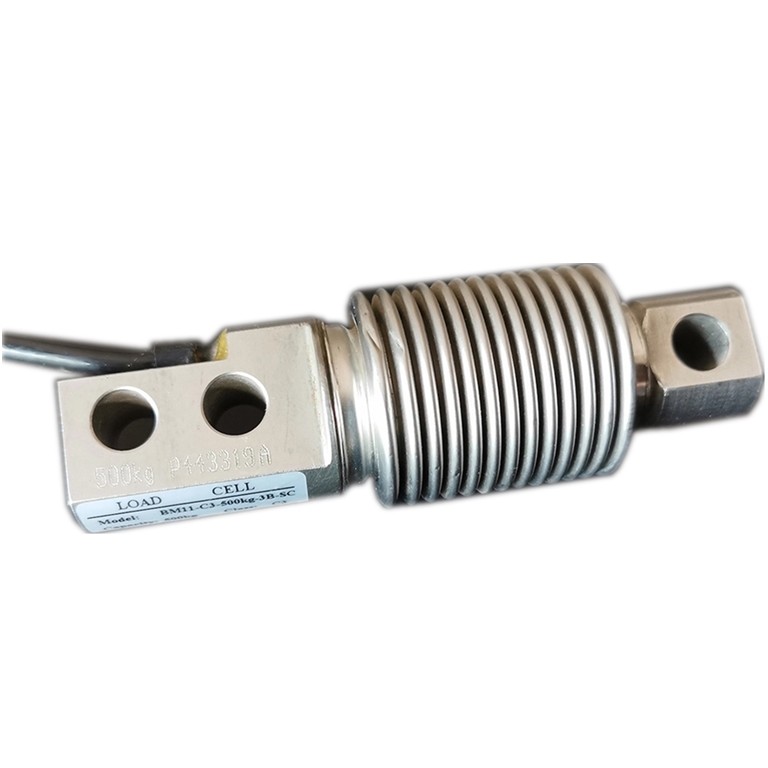

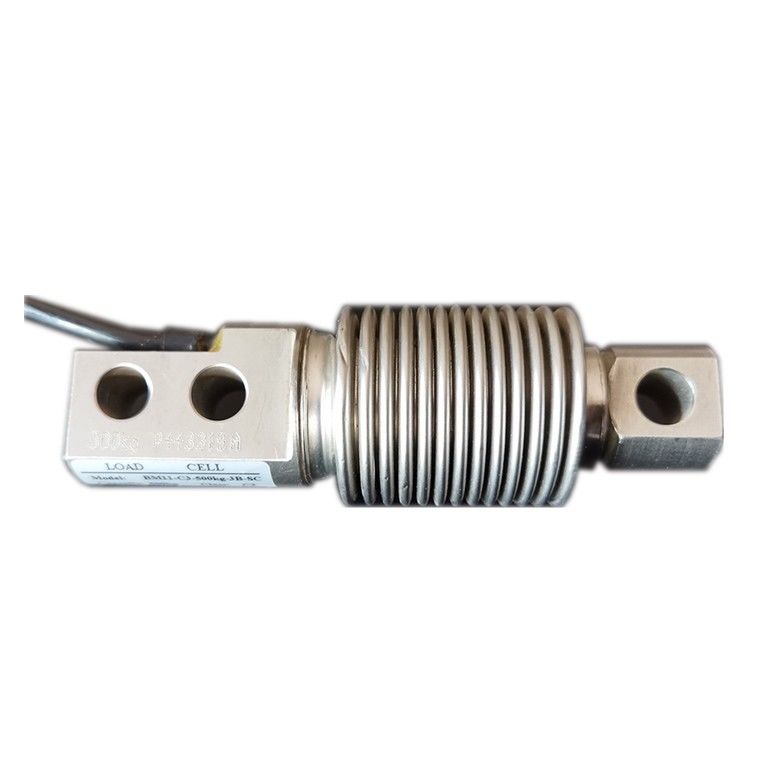

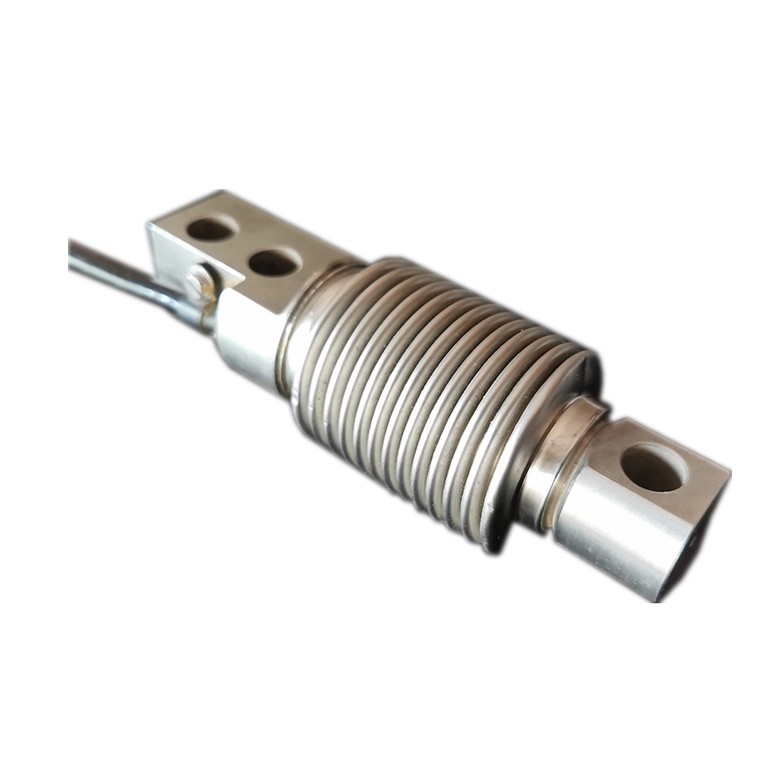

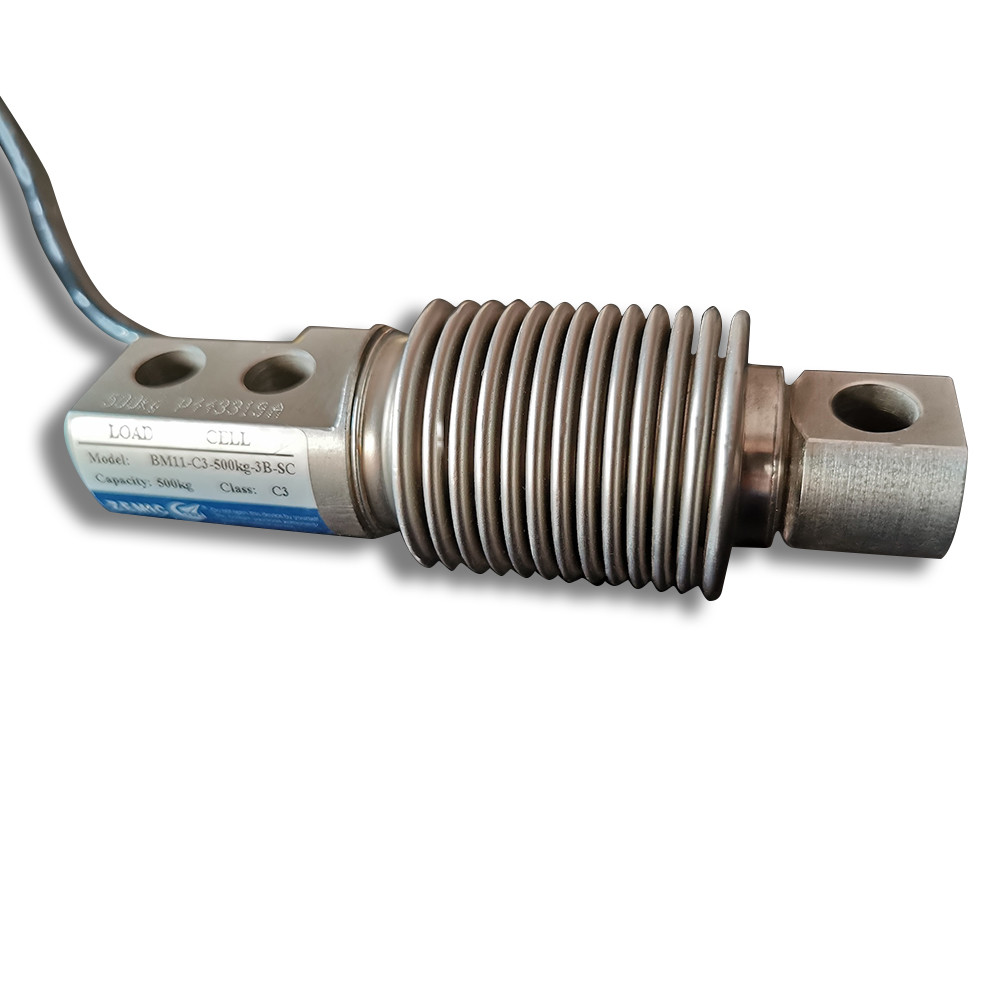

BM11 ZEMIC Alloy Steel Belt Scale Waterproof Load Cell

Minimum Order Quantity :	100	Price :	￥800-10000/pcs
Delivery Time :	2-4weeks	Payment Terms :	T/T
Supply Ability :	99999+pc+1m

Place of Origin:	USA	Brand Name:	ZEMIC
Certification:	CE	Model Number:	BM11

Detail Information
Safe Overload:	150%F.S	Input Impedance:	(460±50)Ω
Output Impedance:	(350±3.5)Ω	Service Temp Range:	(-10~+40)°C
Creep Error(30min):	±0.02%F.S	Working Voltage, Recommend:	5V~12V(AC Or DC)
High Light:	Alloy steel custom load cell , belt scale transcell load cell

Product Description

American ZEMIC BM11-C3 load cell belt scale packaging scale bellows Load Cell sensor

Specifications:

Bending beam bellow load cell, for multihead scale, hopper scale and other weighing systems

M5 – Alloy steel material
M5M – Stainless steel material
IP67 protection class
M5M with OIML/NTEP approval
Capacity up to 1000kg
For crane scales, hopper scales, etc.
default of 3m Cable dia 5mm
Customized cable available

Part No.	120231	120232	120233	120234	120235	120236	120237	120238	120239
Models	M5-10	M5-20	M5-30	M5-50	M5-100	M5-200	M5-300	M5-500	M5-1000
Capacity	10kg	20kg	30kg	50kg	100kg	200kg	300kg	500kg	1000kg
Part No.	120240	120241	120242	120243	120244	120245	120246
Models	M5M-20	M5M-30	M5M-50	M5M-100	M5M-200	M5M-350	M5M-500
Capacity	20kg	30kg	50kg	100kg	200kg	350kg	500kg
Class	C3

Rated capacities(Emax)	5kg,10kg,20kg,30kg,50kg,100kg,150kg,200kg,250kg,300kg,350kg,500kg
Accuracy Class	C3
Sensitivity	(2.0±0.02)mV/V
TCO	±0.02%F.S/10°C
TC SPAN	±0.02%F.S/10°C
Creep error(30min)	±0.02%F.S
Working voltage, recommend	5V~12V(AC or DC)
Zero balance	±1% F.S
Input impedance	(460±50)Ω
Output impedance	(350±3.5)Ω
Insulation impedance	≥5000MΩ
Safe overload	150%F.S
Ultimate overload	300% F.S
Service Temp Range	(-10~+40)°C
Material	Stainless Steel
Protection class	IP68
Wiring method	Red: Exc+, Black: Exc-, Green: Sig+, White: Sig-

Product Size:

BM11 ZEMIC Alloy Steel Belt Scale Waterproof Load Cell 0
