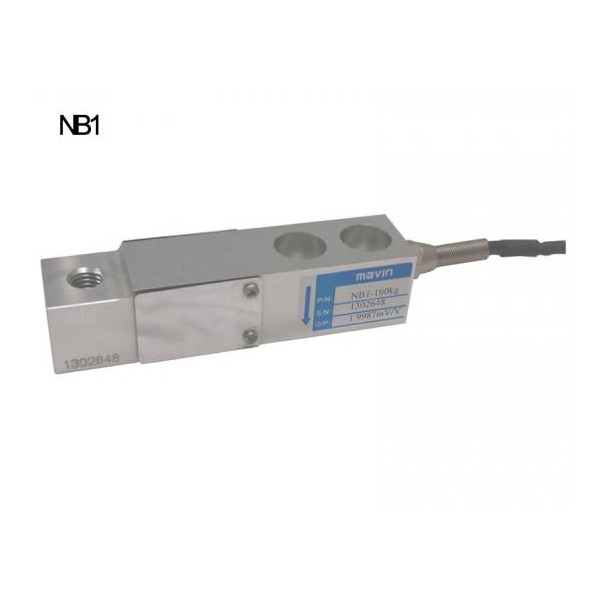

Sealed 1283430mm 15V DC Beam Type Load Cell

Minimum Order Quantity :	1	Price :	Online consultation
Packaging Details :	Carton	Delivery Time :	one week
Payment Terms :	T/T	Supply Ability :	100000+pc+one week

Place of Origin:	CHINA	Brand Name:	mavin
Certification:	-	Model Number:	NB1 series

Detail Information
Range:	100，200，300，500 (kg)	Material:	Aluminum Alloy
Rated Output:	2.0 MV / V	Product Name:	Platform Scale Load Cell
Repeatability:	0.03 %R.O.	Maximum Working Voltage:	15 VDC
High Light:	30mm load cells for weighing , 15V DC alloy steel load cell , 30mm alloy steel load cell

Product Description

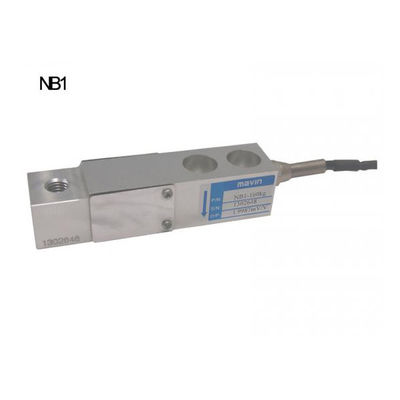

Mavin NB1 Electronic Platform Scale Load Cell Aluminum Alloy load cell Weighbridge load cell

NB1 platform scale load cell parameters:
Range:100-500kg
Size:128*34*30mm
Rated output: 2.0mV / V
Protection class: IP67 / IP68
NB1 platform scale load cell main features:
Load cell elastomer made of aluminum alloy material; the surface is nickel plated; the glue is sealed.
Application fields of NB1 platform scale load cell:
Widely used in electronic weighing scales, hopper scales, floor scales, industrial weighing systems and other weighing force measuring equipment

NB1platform scale load cell Dimensions:

Technical parameters of NB1Platform Scale Load Cell:

Rated load	100,200,300,500 (kg)
Rated output	2.0mV/V±0.15%
Zero balance	±0.0200 mV/V
Non-linear	0.03 %R.O.
Lag	0.03 %R.O.
Repeatability	0.03 %R.O.
Creep (30 minutes)	0.03 %R.O.
Zero return (30 minutes)	0.03 %R.O.
Safe overload rate	150 %R.O.
Limit overload rate	200 %R.O.
Output temperature effect	0.002 %R.O./℃
Zero temperature effect	0.003 %R.O./℃
Input constant	390±15 Ω
Output gain	350±5 Ω
Insulation resistance	≥5000 MΩ/(50VDC)
Recommended working voltage	5~12 VDC
Maximum working voltage	15 VDC
range of working temperature	-20~60 ℃
Texture	Aluminum Alloy
Protection class	IP67 / IP68
cable	φ5×2m
Recommended countertop size
Wiring	Red: Power +, Black: Power-, Green: Signal +, White: Signal-

We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
