CHI-12 Weighing control display Control instrument Custom display instrument For packaging and batching scales

Minimum Order Quantity : 100 Price : ¥800-10000/pcs
Payment Terms : T/T Supply Ability : 99999+pc+1m
Place of Origin: CHINA Brand Name: CONHON
Certification: CE Model Number: CHI-12

Detail Information

Communication:: RS232/485 Material:: Luminum Alloy
Rated Output:: Accuracy Level Range: 0

Product Description

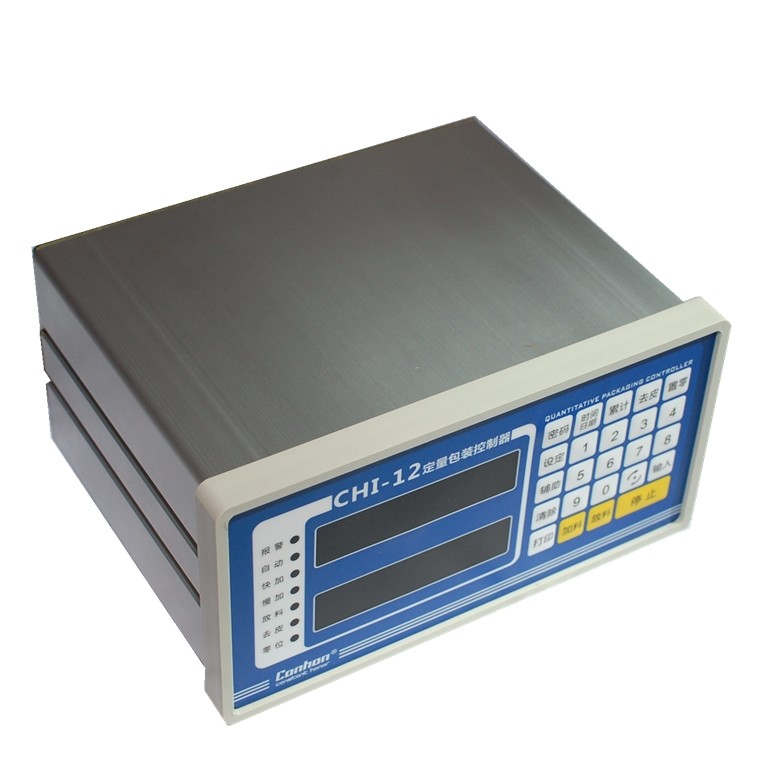

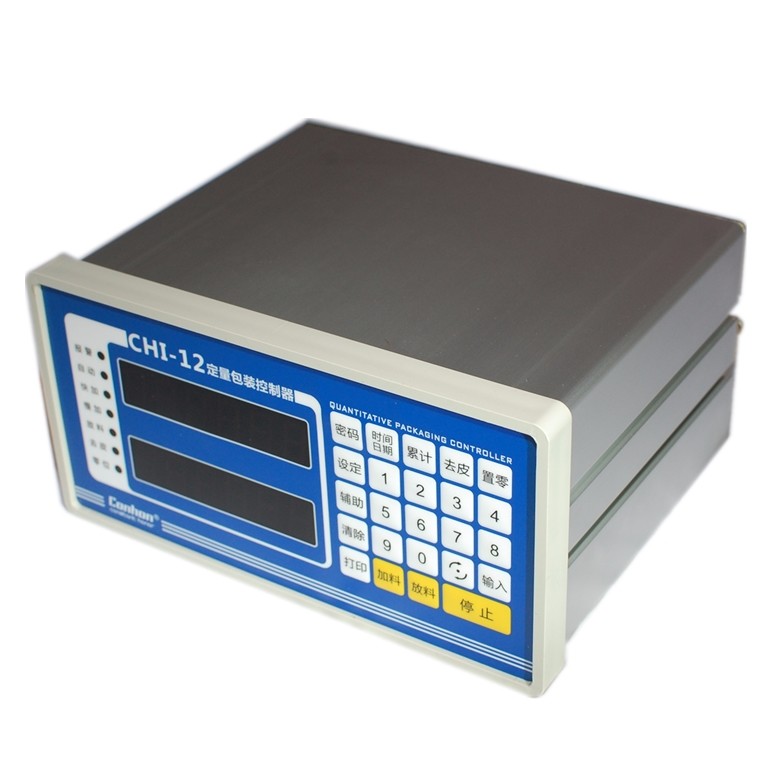

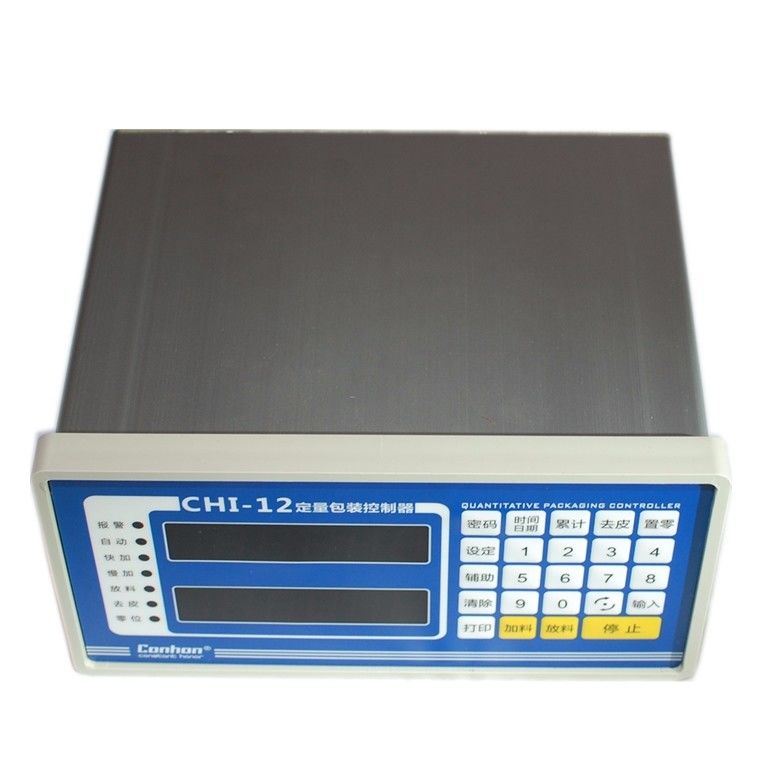

CHI-12 Weighing control display Control instrument Custom display instrument For packaging and batching scales



Product parameters:



CONHON electronic latest instrument chi-12 weighing control display industrial control instrument custom display instrument batching control instrument


Chi-12 weighing display controller is suitable for constant value control, dual display, display of set value and feeding value, fast a / D converter and intelligent digital filtering

It has strong anti-interference ability, fast stability, multiple control modes and multiple control parameter settings, and can be widely used in packaging and batching systems

Subtraction measurement occasions.



Because the internal control accuracy is 10 times higher than the display accuracy, the control accuracy is greatly improved, and the stability is very good
One precision is guaranteed by one ten thousandth of technology. Automatic peeling and automatic correction methods can be selected to apply to various occasions. Can store 10 accessories
Fang.



Chi-12 weighing display controller adopts embedded structure, aluminum alloy shell, strong anti-interference ability. Simple operation, ideal control for all kinds of fixed value packaging and batching scales
Making instruments. Equipped with RS-485 interface, multiple instruments can be combined into a distributed control system.



Main functions and technical indexes of control instruments
1) dual CPU structure, power down data protection.
2) it can store 10 formulas.
3). 0.56 "(word height 14.2mm) double six position super bright LED display.
4) input signal of start, stop, feeding permission and discharging permission (contact or collector open circuit).
5). 6 contact output signals (220V / 1a).
6) power supply (220V, 50Hz).
7) working temperature: - 10 ℃ - + 40 ℃, humidity < 90%.
8) a / D conversion speed: > 100 times / second, resolution 100000.
9) sensor bridge voltage: + 5V, can drive 8 350 ohm sensors.
10) zero temperature drift: < 0.1uv / ℃.
11) range temperature coefficient: < 10 ppm / ℃.
12) sensor sensitivity range: 0.5mv/v - 4.0mv/v.
13) zero adjustment capacity: 100% F.S.
