Sorting checkweighing scale control instrument CHT106-M10 packing scale quantitative reduction display touch instrument

Minimum Order Quantity : 100 Price : ¥800-10000/pcs
Payment Terms : T/T Supply Ability : 99999+pc+1m
Place of Origin: CHINA Brand Name: CONHON
Certification: CE Model Number: CHT106-M10

Detail Information

Communication: RS232/485 Sampling Frequency: 800Hz

Product Description

Sorting checkweighing scale control instrument CHT106-M10 packing scale quantitative reduction display touch instrument



main feature:
Main use: for quantitative packing scale [single scale]. Application modes are optional: weighing bucket mode, weighing bag mode and weight reduction mode.
The EMC design of the whole machine has strong anti-interference ability and is suitable for industrial environment.
Cortex-A8 processor, 600MHz frequency, 128M memory, 128M storage space.
7 ”/10.2” TFT touch screen is integrated with weighing / control module, ultra light and thin body.



Weighing interface:
A maximum of 8 350Ω load cells can be connected.
24-bit high-precision high-speed sigma-delta A / D conversion module, internal resolution of 1 / 1,000,000, and sampling frequency of 800Hz.
Using a unique anti-vibration filtering algorithm to ensure the stability and accuracy of weighing results when the scale body is strong in vibration, and the rapid response ability when the weight changes.



I / O interface:
9 definable normally open switch inputs [DI] and 18 definable normally open transistor switch outputs [DO].
The fast / medium / slow three-speed DO switch can be used to control the feeding. The slow feeding can be selected from continuous feeding mode and jog feeding mode.
2 definable analog signal AO [0 ~ 10V], used for weight signal output or fast / medium / slow feeding control.
Digital communication interface
COM1 [RS232] & COM2 [RS485]: can be connected to the upper computer IPC / PLC and LED remote display.
COM [RS232]: RS232 serial printer can be connected.
USB1: It can be used to connect a USB mouse, download operating interface software and backup data from a USB flash drive to a USB flash drive.



Software functions:
With manual screen lock / open screen, automatic screen lock, digital setting, digital adjustment and I / O test functions.
It has the functions of initial zero setting at power-on, automatic zero tracking, zero trim and zero calibration.
With load calibration and decrement calibration function.
Can store 10 groups of formulas for selection during packaging.
Optional "Auto drop correction" function.
Optional "Auto pause when deviation alarm" and "Automatic replenishment" function.
Optional "fixed batch / fixed accumulation control" function (automatic shutdown after completion of "target batch" or "target accumulation").
Can automatically print the current batch record.
Can query / print historical batch records, cumulative reports and recipe tables.
Multi-task working mode is adopted, which does not affect the weighing and control process during parameter setting and other operations.

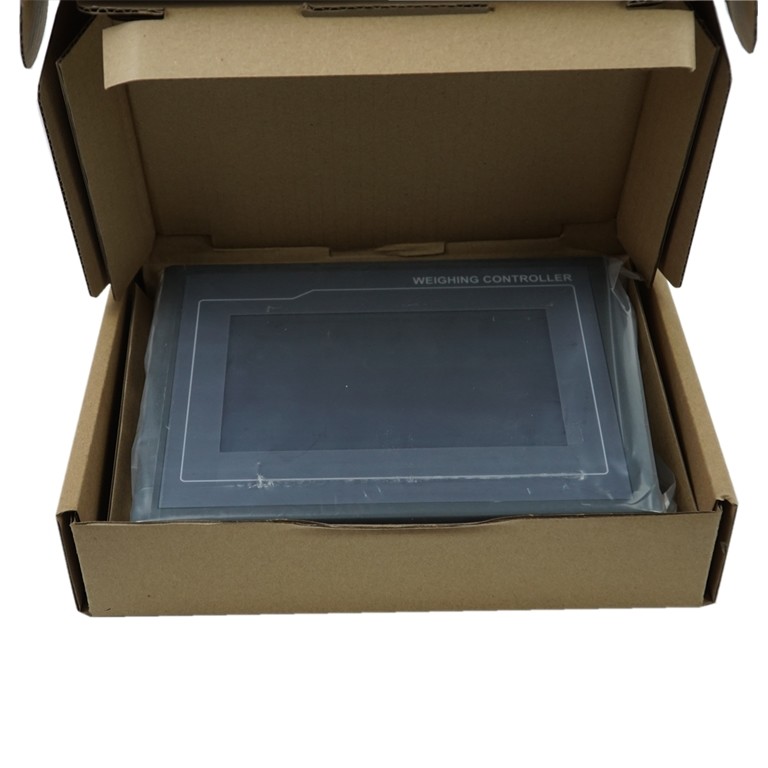

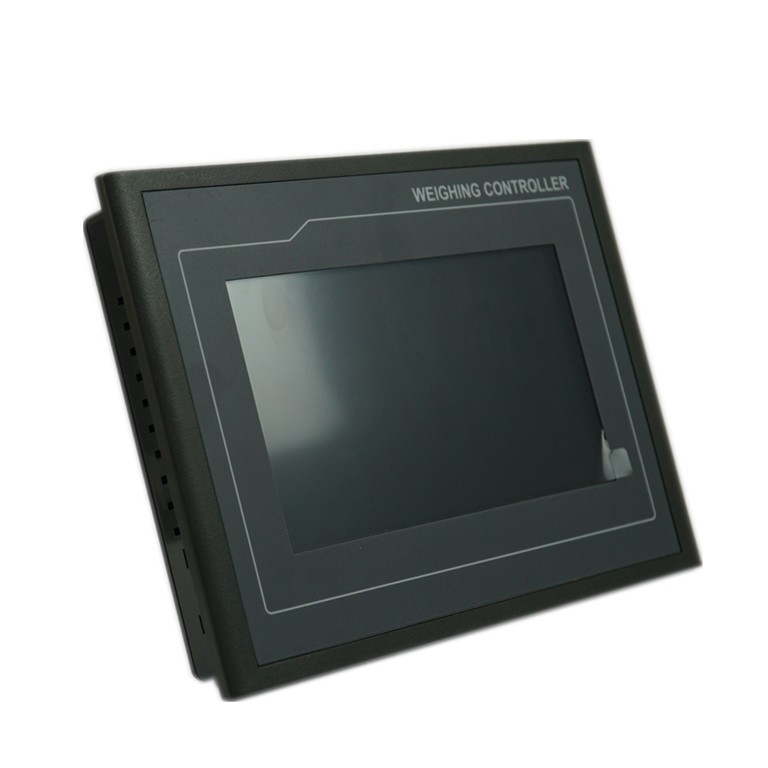

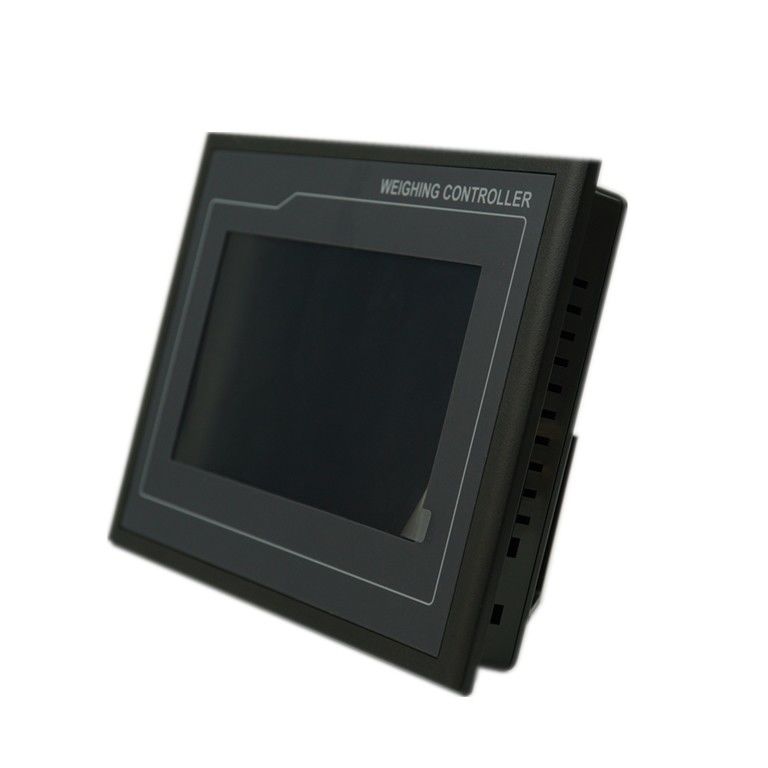

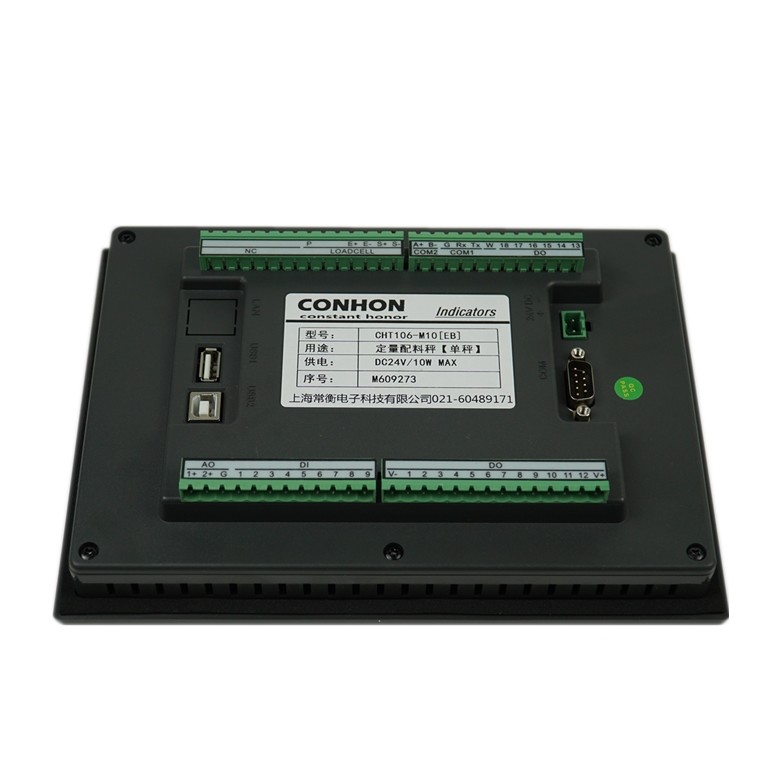

Product Image:

Sorting checkweighing scale control instrument CHT106-M10 packing scale quantitative reduction display touch instrument 0

Sorting checkweighing scale control instrument CHT106-M10 packing scale quantitative reduction display touch instrument 1
