CONHON XK3190-A12 + E Weighing Meters Dosing Meters 1 to 4 sensors static weighing system

Minimum Order Quantity : 100 Price : ¥800-10000/pcs
Delivery Time : 5-8weeks Payment Terms : T/T
Supply Ability : 99999+pc+1m
Place of Origin: CHINA Brand Name: CONHON
Certification: CE Model Number: XK3190-A12+E

Detail Information

Input Signal Range: -10mV ~ 15mV Verification Index: 3000
Input Sensitivity: ≥1μV / E Maximum Internal Resolution: 300000

Product Description

CONHON XK3190-A12 + E Weighing Meters Dosing Meters 1 to 4 sensors static weighing system



Product introduction:

XK3190-A12 series adopts high-precision analog-to-digital conversion technology and special software anti-vibration technology, AC and DC dual-use, suitable for electronic platform scales, electronic platform scales and other static weighing systems using 1-4 sensors.

basic skills:

High-precision A / D conversion with readability of 1/30000;
It is convenient to call the internal code to display and replace the sensing weight to observe and analyze the tolerance;
Special software technology to enhance the anti-vibration ability of the system;
Zero tracking range, zero setting (startup / manual) range, can be set separately;
Digital filtering speed, amplitude and stabilization time can be set;
Equipped with weighing counting function; (single piece has power failure protection)
Multiple backlight modes can be selected;
Can be charged randomly; with under-voltage indication and protection device; random configuration of 6V / 4AH maintenance-free battery
Optional RS-232 communication port, baud rate selectable, communication method selectable;
Optional 20mA current loop large screen communication port;

Technical Parameters:

A / D conversion method: Σ-Δ conversion method
A / D conversion rate: 20 times / second
Maximum A / D conversion number: 20bit
Input signal range: -10mV ~ 15mV
Input sensitivity: ≥1μV / e
Sensor supply bridge power C5V; I≤150mA
Number of connected sensors: 4 350Ω sensors can be connected
Sensor connection: 4-wire system
Verification Index: 3000
Maximum number of external divisions: 30,000
Maximum internal resolution: 300,000
Graduation value: 1/2/5/10/20/50 optional
Display mode (A12): 6-digit LCD, 6 status indicators
Display mode (A12E): 6-digit LED

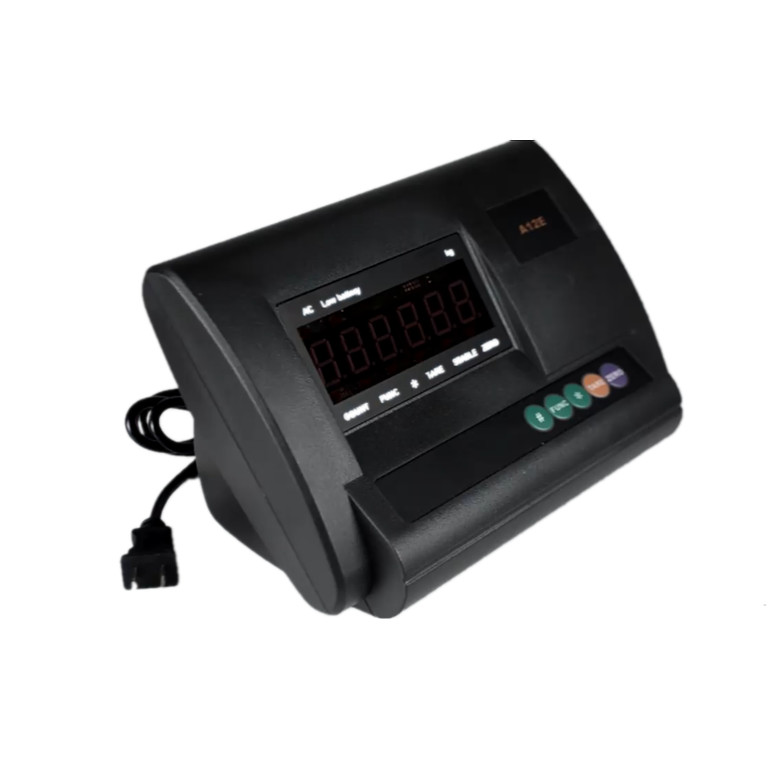

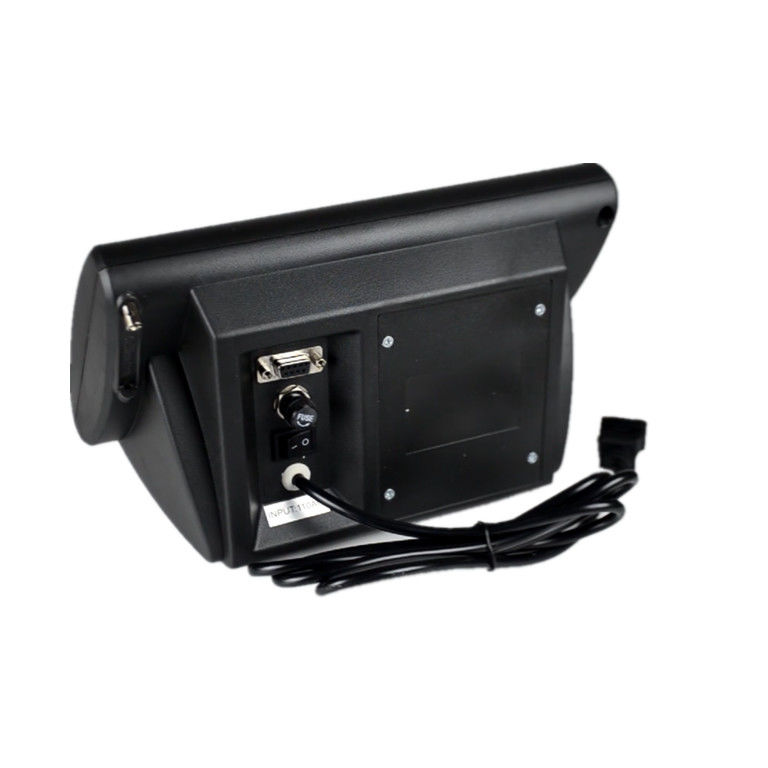

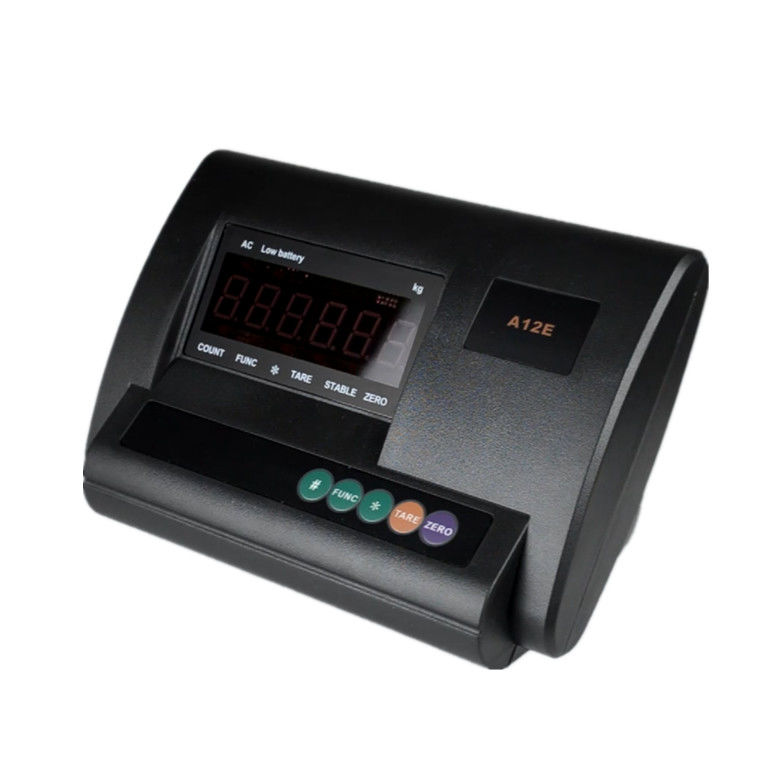

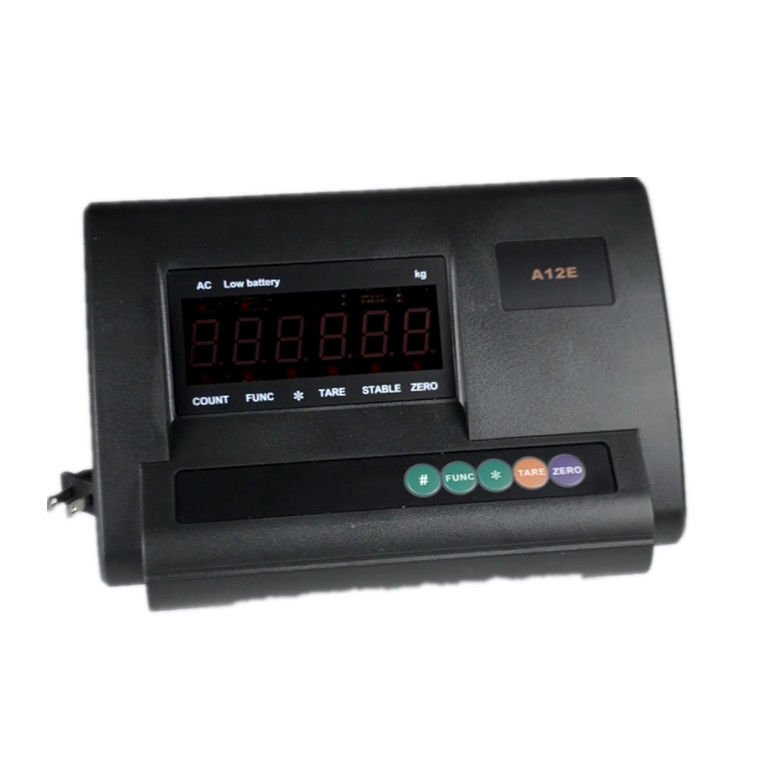

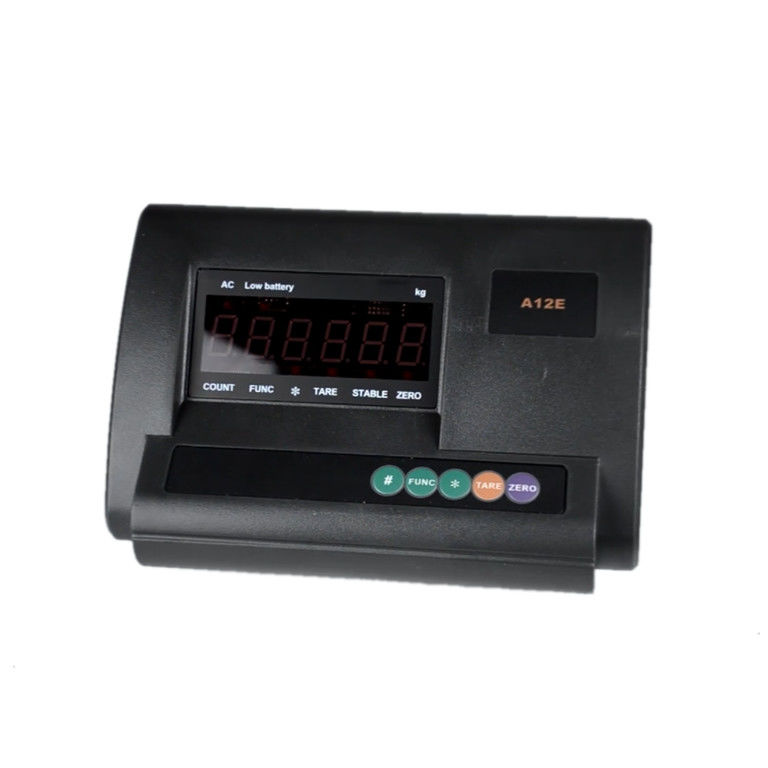

Product Image:

CONHON XK3190-A12 + E Weighing Meters Dosing Meters 1 to 4 sensors static weighing system 0

CONHON XK3190-A12 + E Weighing Meters Dosing Meters 1 to 4 sensors static weighing system 1
